semiconductor laser physical therapy apparatus

Specifications

1) Strong analgesic effect
2) Wound healing
3) Anti-inflammation & anti-infection
4) Regulation and balance

Specifications

1) Strong analgesic effect 2) Wound healing 3) Anti-inflammation & anti-infection 4) Regulation and balance

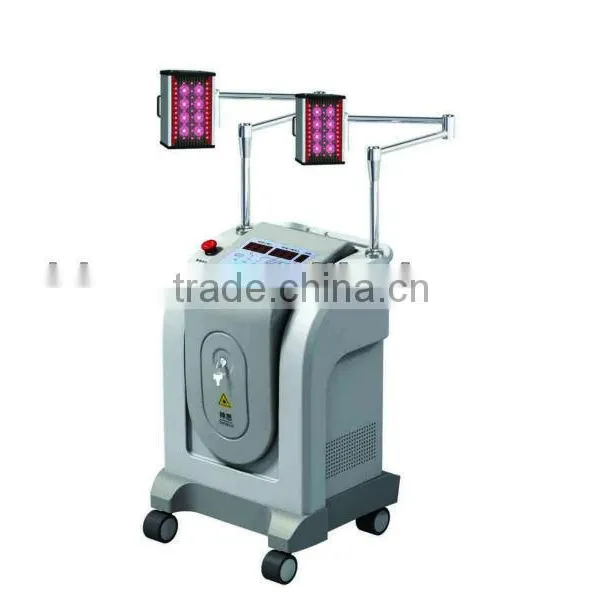

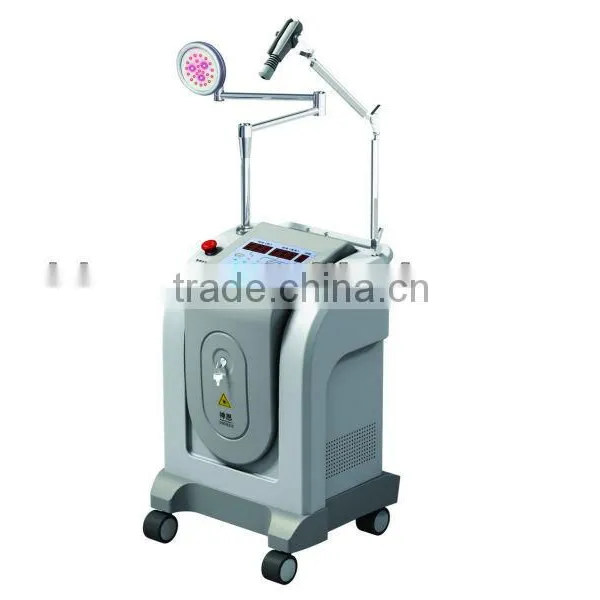

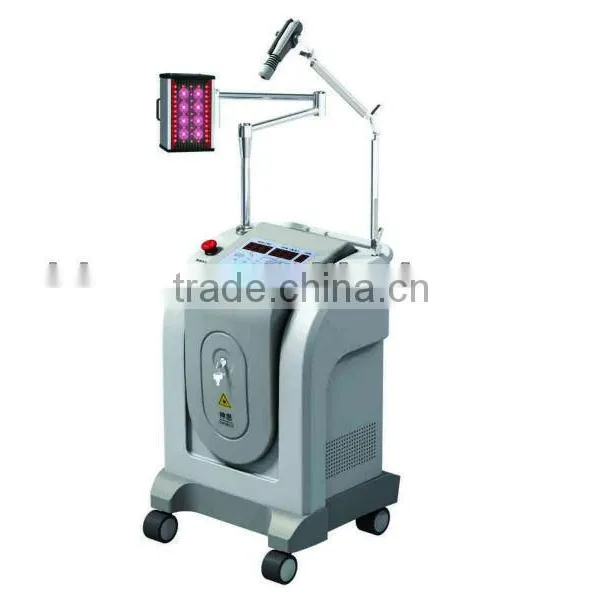

SYNTHESIS SEMOCONDUCTOR LASER THERAPY EQUIPMENT
Device No.	SL100B(NEW)
Laser wavelength	(808 + 10) nm / 650nm
Laser power rating	(1000mw) the x3/4/8 is adjustable
Illuminate area	78.5 cm² /109cm ² / 287cm ²/574cm ²
Showing the way	LED/LCD display
Maximum output power	100J
Repeat frequency	1HZ--10HZ
Pulse width	3ms---9ms
power density	50J/cm2
weight	50kgs
Brand	synthesis
Origin	Shandong,China
Therapy principle	Synthesis Semiconductor Laser Therapy Equipment adopts laser beams to treat diseases through photochemical, thermal and electromagnetic effects on organisms in addition to stimulations.
Treatment effect	1) Strong analgesic effect
	2) Wound healing
	3) Anti-inflammation & anti-infection
	4) Regulation and balance
Applications	It is suitable for dermatology, pain, rehabilitation therapy, burning, endocrinology, stomatology and so on.
Indications	a)Dermatology
	b)Pain and physiotherapic rehabilitation
	c)Other diseases: surgical incision, wound, fracture pain, acute ligament sprain ans so on.

Technology parameters:

(1)Using semiconductor GaAlAS as light media materials whoes output laser beam with the wave light which was stable,monochromatic,directional and coherent.

(2)Adopts full digital circuit design, power output accurate and stable . With laser tube over-current protection, troubleshooting tips, hum alarm and laser tube instant surge in jeopardy Protect function, can effectively protect laser tube, prolong the service life of laser tube.

(3)First laser can rotate 320° above, adapt to the site with large area illuminate extensive; Stents activities range of big, can be in any position balance to dock, clinical convenient operation.

(4) For 808nm / 650nm wavelengths in the human body best absorption window to human tissue within the deepest penetrability is good, can reach 7cm, therapeutic effect is remarkable.

(5)Illuminate area: disc probe: 7850mm - 57400mm; Pen type head: flare diameter: 3mm.

(6)Non-invasive external radiation, no trauma, no pain, easy to use, flexible operation.

(7) Time: 0-999s optional choice

lluminate way: Ulcer surface, wound direct illuminate MTRP pain area illuminate meridians illuminate muscle attachment point illuminate stellate ganglion illuminate

Attentions: Do not put laser beam shooting forbidden according to pregnant women lumbar abdomen eyes a light allergy and hemorrhagic disease patients disable neonatal, infant banned tuberculosis disable late-stage cancer with caution
