Help CenterShort Production Cycle High Quality Mobile Cement Mixer for Sale YHZS50
Related Products
-
CE Cheap Full Automatic Mobile Premix Concrete Batching Plant, YHZS75US$ 34,000 - 41,000MOQ: 1 Set -
Mobile Concrete Batching Mixing Plant With Wheel for Sale, CE/ISOUS$ 29,800 - 35,800MOQ: 1 Set
-
CE Cheap Full Automatic Mobile Concrete Mix Plant, YHZS75US$ 34,000 - 41,000MOQ: 1 Set
-
YHZS75 Computerized Mobile Concrete Batching Plant With CE and ISOUS$ 86,000 - 98,100MOQ: 1 Set
-
YHZS Series Mobile Concrete Mixing Plant With CE ISO9001 Hot Sale on MarketNegotiableMOQ: 1 Set
Specifications
1. mobile cement mixer2. OEM
3. High accuracy
4. Durable to use
5. Short production cycle

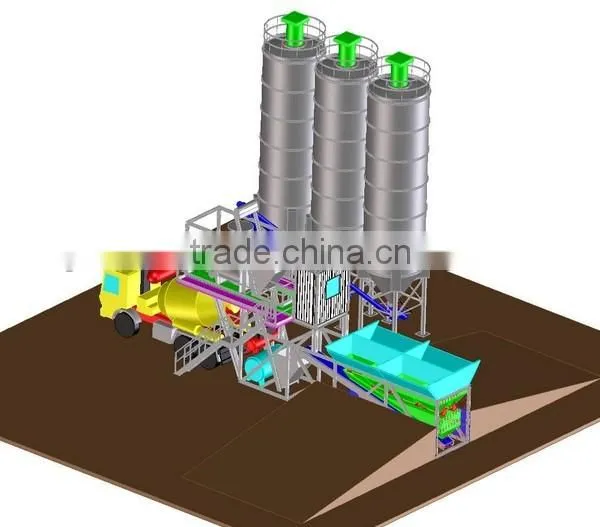

Short production cycle high quality mobile cement mixer for sale YHZS50
Parameters:
ItemsModel |
YHZS50 | |
| Mixing Plant | heoretical productivity (m3/h) | 50 |
| Control | Microcomputer | |
| Measurement | Electronic Batcher | |
| Dumping Height (m) | 2.8-3.8 | |
| Installation Capability (kw) | 100 | |
| Mixer | Mixer Model | JS1000 |
| Power (Kw) | 18.5x2 | |
| Charge Capacity (L) | 1500 | |
| Discharge Capacity (L) | 1500 | |
| Material Diameter (Scree/Gravel) | 40-80 | |
| Aggregate Storage System | Batcher Model | PL1600 |
| Materials | 4Piece | |
| Measurement Range & Precision | 200-2500±2% | |
| Powder Storage System | Capacity (t) | 50x1 |
| Spiral Conveyor Capacity (t/h) | 45 | |
| Cement Measurement Range & Precision | 50-600±1% | |
| Coal Ash & Powder Admixture Measurement Range & Precision | 50-200±1% | |
| Water-reducing Admixture Storage System | Water Measurement Range (kg) | 50-350 |
| Water Measurement Range (kg) | ±1% | |
| Liquid Admixture Range (kg) | 5-20 | |
| Measurement Precision | ±1% | |
Our Advantages:
1. We are outstanding due to our delicate workmanship and excellent steel structure.
2. Germany technology adoption, combined with our Professional engineers' guidance, make us top level supplier.
3. We offer DISCOUNTED mixing plant at fixed period, welcome to join us.
Just call serena at 86-18660191805 for win-win business.
MIXING SYSTEM
Twin Shaft Concrete Mixer: JS1000
AGGREGATE SYSTEM
2.1Aggregate Batcher
Model: PLD1200
Volume: 4×5m3=20 m3
Sort of aggregate: 4
Sand vibrator: 0.25kw×2
Welded and bolted bunker construction gives you a high durability.
2.2 Weighing Hopper: 1 Unit
Capacity: 1.6m3
Load cells: 2000kg (Toledo)
2.3. Aggregate Feeding Belt Conveyor:
Width: 650 mm
Length: 18300 mm
Conveyor Belt: δ10mm
Speed: 1.6m/s
Motor: 15 kW
Sand vibrator: 0.25kw
250 kg/cm ² load transfer capacity, 10 mm total thickness chevron belt.
CEMENT SYSTEM
3.1 Cement silo: 2units
Capacity: 100t×2=200t
Silo Diameter: Φ3100
Plate Thickness: 4~7mm
Silo Pressure Valve: 1unit
Level Indicators: 1unit
Silo Top Filter: 24 m2
Ladder, manhole, platform, and parapets are included.
The silos, with scale cells positioned above the batch mixer. These silos assure the admixture supply, measuring the amounts by weight, cubic capacity, or load.
3.2 Cement Screw Conveyor: 2units
Diameter: Φ219mm
Length: 8m
Capacity 50 ton/hour
Motor Power: 7.5kW
ADDITIVE SYSTEM
Additive silo Capacity: 0.02m3
Load cells: 100 kg
Pneumatic Valve: Φ50 mm
Pump: 0.75kw
Precision: ±1%
WATER SYSTEM
Water Weighing Hopper: 0.3 m3
Load Cells: 500 kg
Weighting Capacity: 150kg
Motor Power: 3kw
Butterfly Valve: Φ80 mm
Precision: ±1%
Pipes installation on the plant already.
CEMENT WEIGHING SYSTEM
Cement Weighing Hopper: 0.8 m3
Load cells: 500 kg (3Units)
Weighting Capacity: 600kg
Butterfly Valve: Φ300 mm
Precision: ±1%
Cement vibrator: 0.25kw
AIR SYSTEM
Air Compressor: 1unit
Power: 5.5 kW
Pressure: 0.7 MPA
Air flew: 0.67 m3/min
Pipe and fittings materials
SUPPORTING CHASSIS SYSTEM
Supporting structure: 1Unit
Rear Tires: 900-20(2Units)
Front Tires: 750-16(2Units)
Capacity: 15000kg
Plant chassis with 4 wheels, which provides 4250 mm useful height and has 4 units of wheels, is produced from section - profile and sheet iron, according to ISO9001 and all related Chinese norms.
What differ us from other suppliers is:
1. We do not under any circumstances compromise in quality, but with best price.
2. We own years experienced tech staff updating our plant continuously to meet our customers needs.
