Help CenterHigh Quality China Made CE Certified YHZS40 40m3/h Mobile Concrete Mixing Plant
Related Products
-
High Quality China Made CE Certified Mobile Concrete Batching Plant YHZS25-75NegotiableMOQ: 1 Set -
High Quality CE Certified Mobile Concrete Batching PlantNegotiableMOQ: 1 Set
-
YHZS50 50m3/h High Quality China Made CE Certified Mini Mobile Concrete Mixing Plant Mobile Mini Mobile Concrete Batching PlantNegotiableMOQ: 1 Set
-
High Quality CE Certified Ready Mix Portable Mobile Concrete Mixing PlantUS$ 20,000 - 30,000MOQ: 1 Set
-
YHZS40 40m3/h Hot Sale High Quality Portable Mobile Concrete Mixing PlantUS$ 50,000 - 120,000MOQ: 1 Set

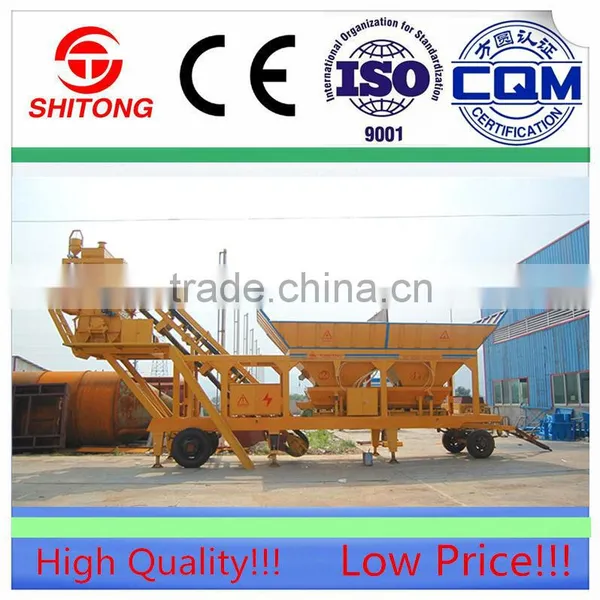

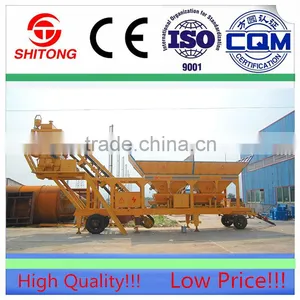

Mobile concrete mixing plant is a station of material storage material, weighing, conveying, stirring, unloading and automatic control ; The process, operation and maintenance are exactly the same with fixed automatic batching plant; It is a combination of mobile and flexible, easy disassembling fast, simple storage management and other unique characteristics; Suitable for railways, Bridges, ports, water and electricity engineering construction . .
The advantages are :
1. Quick disassembling, move convenient.
2. Other properties and operating mode, principle are same with fixed standard station .
Model |
YHZS25 |
YHZS40 |
YHZS50 |
YHZS75 |
Production rate ( m3/h) |
25 |
40 |
50 |
75 |
Matching concrete mixer |
JS500 |
JS750 |
JS1000 |
JS1500 |
Storage bin capacity (m3) |
2×4 |
2×4 |
2×5 |
2×5 |
Aggregate measuring accuracy (%) |
±2 |
±2 |
±2 |
±2 |
Cement measuring accuracy (%) |
±1 |
±1 |
±1 |
±1 |
Water measuring accuracy (%) |
±1 |
±1 |
±1 |
±1 |
Fly ash measuring accuracy (%) |
±1 |
±1 |
±1 |
±1 |
Additive measuring accuracy (%) |
±1 |
±1 |
±1 |
±1 |
Trail Speed |
15km/h |
15km/h |
15km/h |
15km/h |
Wheelbase (outside) |
2,800mm |
2,800mm |
2,800mm |
2,800mm |
Options: Sandstone storage , Cement silos, Screw conveyors
We have other models of mobile / fixed concrete mixing plant , concrete mixer and screw conveyor, pumps for you to choose , Contact me for the further information.
After-sale Service
1.May enjoy the life-long service after you buy our products.
2.Training the operator for free.
3. Under the condition that foundation, water source, power source, aggregate, hosting equipment, auxiliary staff is ready. Engineers are available if you need.
4.Certain quantity stochastic tool will be provided while delivering goods.
5.Within 48 hours service will be available according to different regions after received the telephone.
6. For exported products, Our company sends the constructor to help to operate and management equipment, time according to your needs. The related fee will be undertaken by buyers.
7. Promptly provides the fittings according to users’ demands, handles for the user consigns for shipment.
8. All products (easy worn parts not included) loss caused by non-human factors will be free of charge for half a year.
9. Provides the technology advisory service as necessary.
10. Please contact me via telephone +86 18660191805 when you have any problems with the plant.
