Rapeseed oil processing equipment,rapeseed oil making machine

1.More than 60 years cooking oil machine manufacturing experience

2.Have factory and professional engineers

3.Can Offer full production line, according to different oilseeds

4.Patents and CE,ISO,SGS

Huatai is a company specialized in grain and oil machinery , biodiesel machinery manufacture. we have over 50 years experience in this line . now we have 50 engineers and 30 person's R&D team , we also cooperate with university and attract professors  as our counselor . All these above is the guaranty of our machine's quality . we have 30 experienced installation engineers , they will be appointed to your country to installation and training your workers to operate the machine . Our sales team will do our best to give you suggestions and communicate with engineers to supply you the high quality machine , best service and after sales service .

The whole process for  rapeseed oil processing line includes pretreatment, oil solvent extraction machine and oil refinery sections usually.

1. Craft flow for rapeseed oil processing equipment pretreatment workshop

oil seed→ magnetic box → cleaning → crushing machine → flaking roll  →  plate dryer → to extraction workshop

Main Equipments of rapeseed oil processing equipment  pretreatment:

1. Magnetic box: Clearing the iron impurity in the soybean. In order to avoid the harmful to the following machines, the iron impurity need be moved first.

2. Cleaning: There are many different imputities in the soybean such as small stone, earth, straw and so on. They are not only broken the machine, but also effect the quality of final oil.

3. Crushing machine: The size of soybean is big, so it must be separated to 6-8 pieces. This will help to extract oil.

4. Flaking roll: The soybean pieces need be make to think cake. At the same time, the cell in the soybean is broken, so the oil is easy to go out.

5. Plate dryer: The water content of the extractor must be about 10%, so the dryer is used to adjust the water content in this step.

Rapeseed oil making machine

2.Craft flow for rapeseed oil processing equipment - extraction workshop

   solvent

      ↓

extractor → mixed oil → 1st and 2nd evaporation  → stripping tower → crude soybean oil

          Wet meal → DTDC toaster → cake

Main Equipments of rapeseed oil processing equipment - extraction:

1. Roary extractor: The spray and soak the cake with solvent, so that oil fats can be dissolved in solvent (form miscella). After this step, wet meal and miscella (mixed oil) are got.

2. 1st evaporator: The miscella (mixed oil) will be sent to 1st evaporator to separate the oil and solvent.About 85% of oil can be separated from the mixed oil in this step.

3. 2nd evaporator: After the separating in the 1st the evaporator, the mixed oil is sent to 2nd evaporator.

 By the higher temperature and vacuum, 95% of the oil is get out from the solvent.

4. Stripping tower: This is the lastest step to separate the mixed oil. In this machine, all the oil will be seperated from the solvent.

5. DTDC toaster: The cake from the extractor will enter the DTDC toaster. The solvent in the cake can be moved out. Then the solvent can be recycled. The cake after separating solvent will dried in the toaster. Then you can storage it directly.

6. Condensers: The solvent from evaporate, stripping tower and toaster will recycled by the condenser. Then the running cost will be reduced.

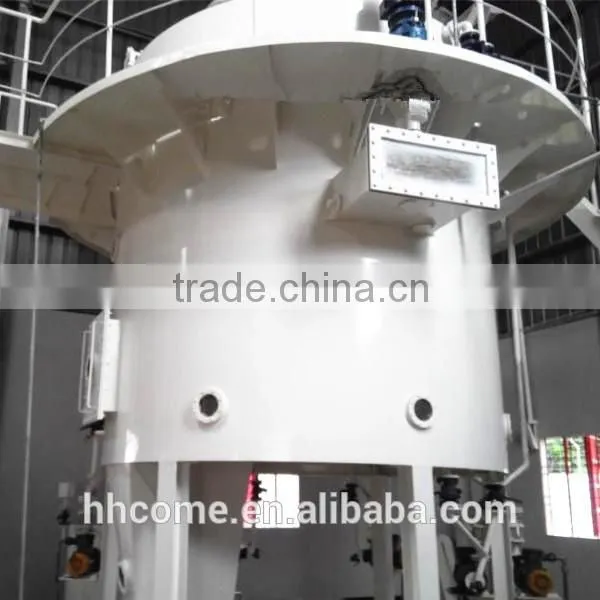

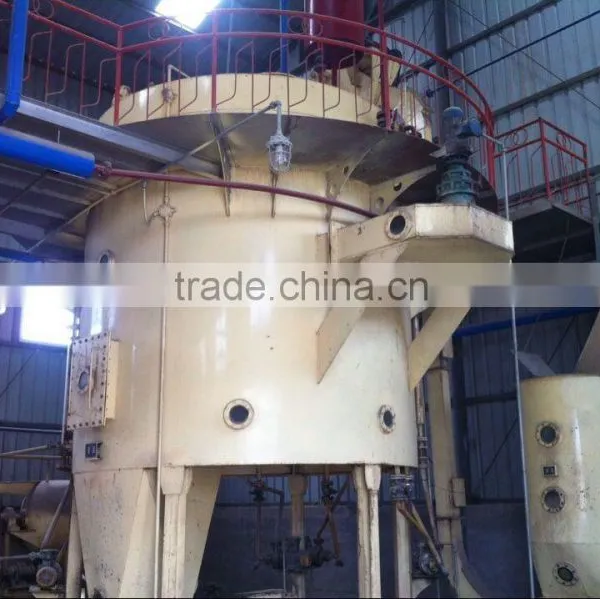

Rapeseed oil processing machine  rotecel extractor

3. Craft flow for  rapeseed oil processing equipment :

Crude oil → degumming and deacidification→ decolorization →deodorization → refined oil.

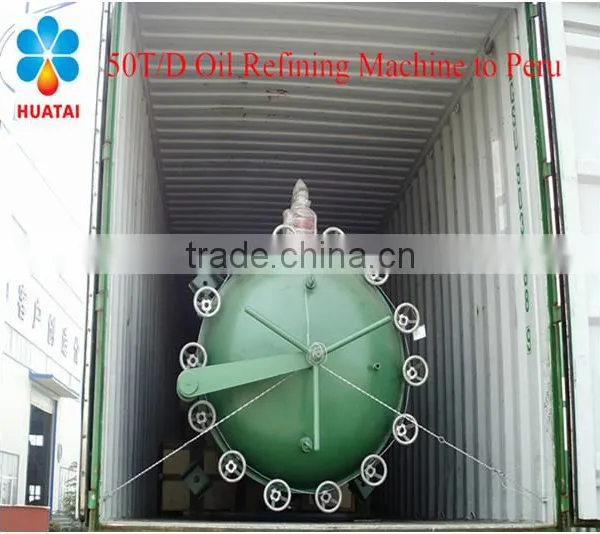

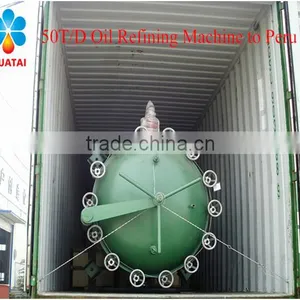

Rapeseed oil refining machine

Customer visiting
