2016 Hot Sale Up-grade Soybean Oil Extraction Equipment

Preconditioning station based processing steps: cleaning, conditioning, broken, softening, rolling embryo, steaming and roasting and pre-press. Wherein the pretreatment of cottonseed to have lint, peel and other technology. Pretreatment Section of oil processing equipment is the most important part, but with different pre-processing machinery and equipment, and the different requirements of different end-oil production of raw materials and have different configurations and processes. Division I for different fuel pretreatment plant and process configuration is not the same, for example, the need for expanded rice bran pretreatment steps, the need for pre-processing of palm fruits to kill the yeast section, cottonseed pretreatment need to have lint process Wait.

Huatai grease mechanical pretreatment equipment advantages:
1, to reduce wear and tear on the follow-up equipment, improve environmental quality workshop;
2, improve equipment production, improve oil yield, to ensure maximum quality fat, meal and byproducts;
3, the lowest rate of fuel crushing, destructive for protein meals minimum.

Pretreatment Applicable oil: soybean, rice bran, sunflower, rapeseed, cottonseed, walnuts, corn germ, peanuts, copra, castor bean, palm kernel, palm nuts, sesame, olive, algae oil and the like.

Pretreatment capacity: 30-5000T / Day

 Cleaning sieve

Destoner

Elevator&Conveyor

Cooking pot

Oil press

The main section of extraction plant: leaching systems, steaming off the system, evaporation system, condensate recovery system and exhaust system. The main principle is to use a suitable solvent to feed embryo oil extracted, and then removing the solvent in the mixed oils. Leaching of our design to produce a mixture of oil does not contain any chemical solvents, and direct removal of exhaust, environmentally friendly.

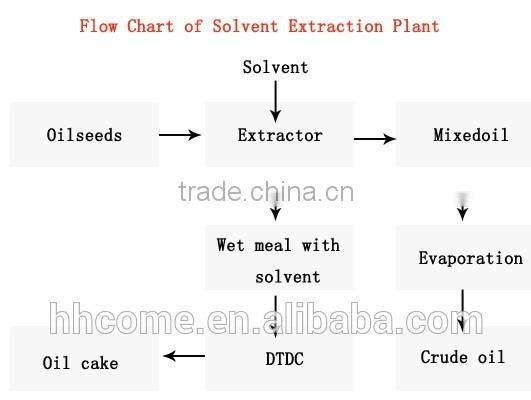

It includes oil extraction, wet meal toasting, miscella evaporation, solvent recovery, exhaust gas recovery with paraffin and other processes.

1).Extraction section. Convey oilseeds flakes with scraper conveyor to extractor, make them contact with organic solvent fully through soak and spray to get miscella, miscella into miscella tank for removing solvent, and wet meal out of the bottom of extractor to desolventizer-toaster for solvent removal.

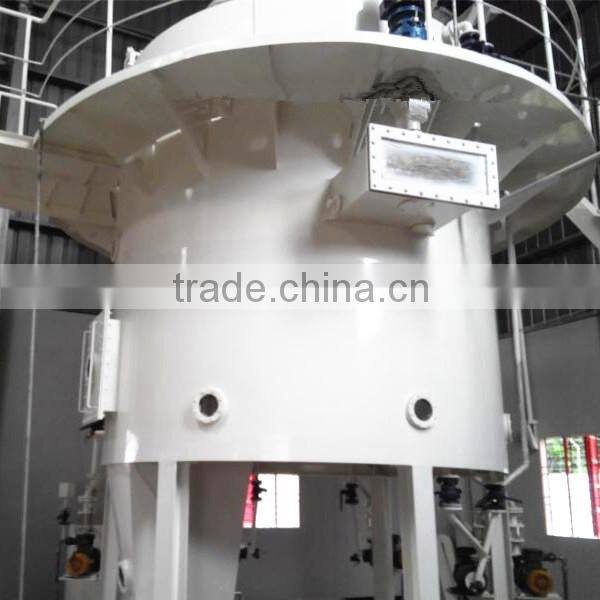

Rotocel extractor is typical extractor to extract oil with solvent.

2).Toasting section.Use DTDC to separate solvent out from wet meal to get dry meal without solvent for animal feeds, and solvent can be recycled through condensation.

DTDC desolventizer-toaster is used in this section.

3).Evaporation and steam-stripping section. Because of different boiling point,remove solvent from miscella to get crude soybean oil with No.1 long tube evaporator, No.2 long tube evaporator and steam-stripping column.

4).Solvent from meal toasting and evaporation and steam-stripping of miscella can be recycled through condensation.

5).Exhaust gas recovery section.Use water-bath type absorption tower to absorb and condense solvent gas in exhaust gas then recycle it.

Huatai mechanical oil extraction process section features:
1, the use of vacuum evaporation, the oil is high, the resulting good meal quality;
2, extractor design capacity, help to improve productivity, increase efficiency and reduce costs;
3, the leaching system design can be freely adjusted depending on the material and the desired yield and process effect, simple and reliable;
4, absorbing the unique exhaust system, environmental protection and efficient;
5, full of energy-saving design, multiple use of heat energy, saving the amount of steam, energy-saving and low consumption.

Section leaching field of application: pre-press cake, expeller cake machine, flakes, puffed material, all containing low oil.

Size: 20-5000T / D

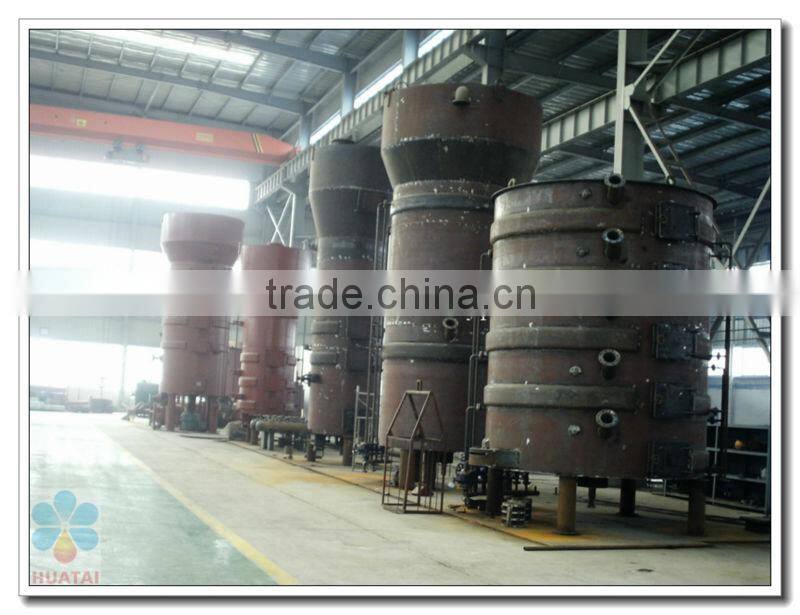

Extractor

Desolventor

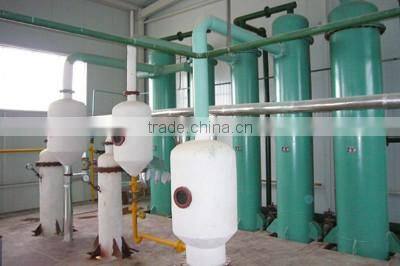

Evaporator&Striper

Condensor

Henan Huatai can provide you with 10 to 25 kilograms (test equipment), 2 to 1,000 tons / day of oil refining projects , Henan Huatai naturally is your preferred partner for different oil quality. in Henan Huatai here are different options, batch chemical refining, semi-continuous physical refining, continuous physical refining program, where Henan Huatai provide you with the design (process, civil, electrical), manufacturing, installation, commissioning, training of technical personnel to the sale a full-service; advanced automatic control system to ensure that the entire production line of automatic, smooth operation; heat saving each segment to ensure that the processing costs to a minimum.

The main refining plant processes: degumming, dehydration, bleaching, deacidification, deodorization, dewaxing, degreasing. Crude oil in squeeze, extraction crude oil
can be obtained national quality standards of edible oil through
refining plant
.

Refining workshop process: fully continuous refining equipment, refining equipment, and semi-continuous batch refining equipment.

Huatai Oil refining machinery characteristics:
1, continuous alkali refining shorten the contact time of oil and lye, reduce fat saponification, low power consumption and improve efficiency;
2, bleaching and steam stirring decolorization premixed combination of technology, improve the decolorization efficiency, saving the amount of clay, simple operation; a negative pressure and oxygen in the air to avoid contact with hot oil, to ensure the quality of oil, acid value rise suppression, reduce excessive oxidation number.
3, using the new continuous physical refining deacidification deodorization, deacidification deodorizing suitable for high acid value and low gum content of the vegetable oil, the actual production proves that the process has the following salient features: strong acid removal ability, good heat decolorization, refining rate, good quality oil.
4. The process multiple heat exchange systems take advantage of the heat, reduce steam consumption, the production process also has an adjustable, flexible operation, high automatic degree of sanitation.

Applicable oil: soybean oil, sunflower oil, rapeseed oil, cottonseed oil, peanut oil, palm oil, copra oil, rice bran oil, animal oil all need refining oil.

Refining plant capacity: 10-1000T / D

Refining workshop

Small cooking oil refining equipment unit
