XK-TV1 TV Set Training Equipment for Educational Science Kit and Household Appliance Training
1. Product Introduction
XK-TV1 TV Set Training Equipment for Educational Science Kit and Household Appliance Training mainly shows the basic knowledge of TV, circuit composition of color TV, each unit circuit working principle; Color TV set normal fault analysis, detection and troubleshooting etc.

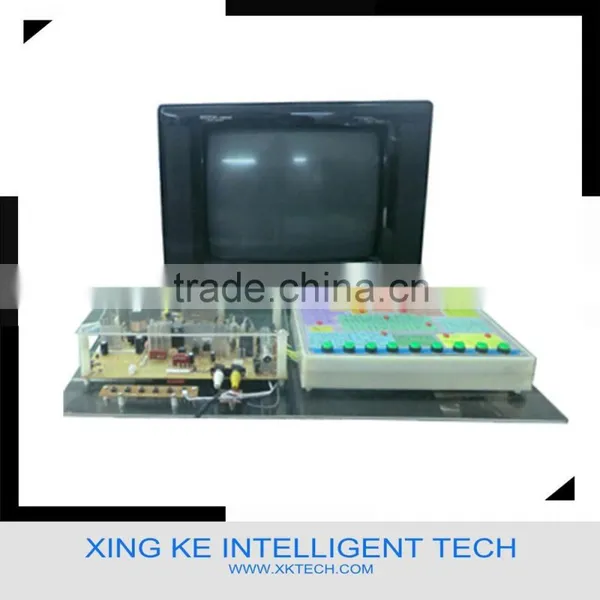

Training equipment mainly consists of electric circuit principle assessment panel and TV main machine. Electric circuit principle assessment panel printed with electric circuit principle diagram and faults set switch and detection point.
2. Training kit technical index
2.1 Size: 550mm *600mm *400mm, net weight: 17KG
2.2 Power supply input: single phase three wires system, AC220V ±10%, 50Hz
2.3 Power: <50W
2.4 Color, accompanying sound: auto
2.5 Screen size: 14 inch
3. Accessory for Experiment
3.1 Remote control: 1set
4. Function of Equipment
1) Understand the basic knowledge of radio and television
2) Understand the basic principle of simulation color television
3) Understand color TV circuit principle
4) Master working principle of color TV each unit circuit
5) Color TV no signal, the fault detection and ruled out
6) Color TV cannot be remote, the fault detection and ruled out
7) Color TV has image, but without the sound, this fault detection and ruled out
8) Color TV screen is blue, this fault detection and ruled out
9) Color TV image without green, this fault detection and ruled out
10) Color TV indicator is on, but does not start up, this fault detection and ruled out
11) Color TV rainbow shape grating is fault, this fault detection and ruled out
12) Color TV with sound, but there is no image, this fault detection and ruled out
13) Color TV vertical one bright line is fault, this fault detection and ruled out
