Help CenterHuatai High Quality of Sunflower Oil Refining Machine
Related Products
-
2 to 5TPD Price of Mini Cooking Oil Refining Plant, Crude Cooking Oil Making Machine With CE 0086 13849275334US$ 20,000 - 80,000MOQ: 1 Unit -
Sunflower Oil, Rice Bran Oil Refining Machine, Soybean Oil Refining Machine, Vegetable Oil Refining Machine 10-1000PTDUS$ 20,000 - 100,000MOQ: 1 Set
-
Small Scale Oil Refining Machine, Crude Sunflower Oil Refinery Plant, Mini Oil Refine Facilities With CE, ISOUS$ 20,000 - 80,000MOQ: 1 Unit
-
Hutai Mini Crude Sunflower Cooking Oil Refinery Machine, Mini Soya Oil Refinery Plant With CE 0086 13849275334US$ 20,000 - 80,000MOQ: 1 Unit
-
Mini Cooking Oil Refining Machine Unit With ISO,CE CertificateUS$ 1,000 - 18,000MOQ: 1 Set

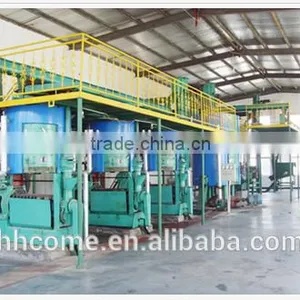

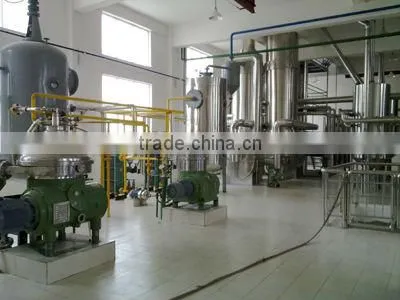

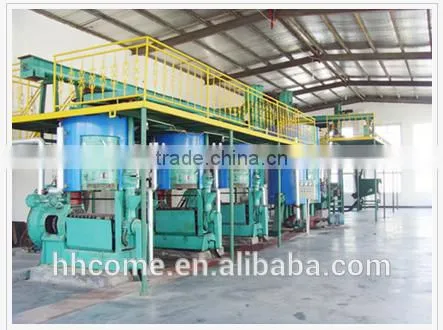

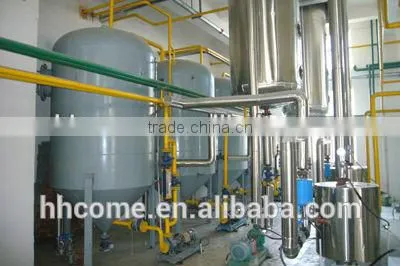

Sunflower Oil Refining Machine
Our sunflower cooking oil refining machine unit is widely used in crude crude soybean oil,peanut oil,rice bran oil,sunflower oil...
It has its heat source, electrical control,with features of light weight and electricity saving. Only turning on power and connecting water, prepare little coal or firewood, caustic soda, phosphoric acid,bleaching clay and other materials, the equipment can be operated. Without special workshop and special base, no matter it's outdoor or indoor, it can be operated easily.
Craft flow sheet:
H3PO4 Caustic soda Hot water Bleaching clay
Crude oil ------------- Alkali refining deacidification ------------ Water washing ----------Decolorization
Filtration Vacuum
----------------Deodorization-------------- Finished oil

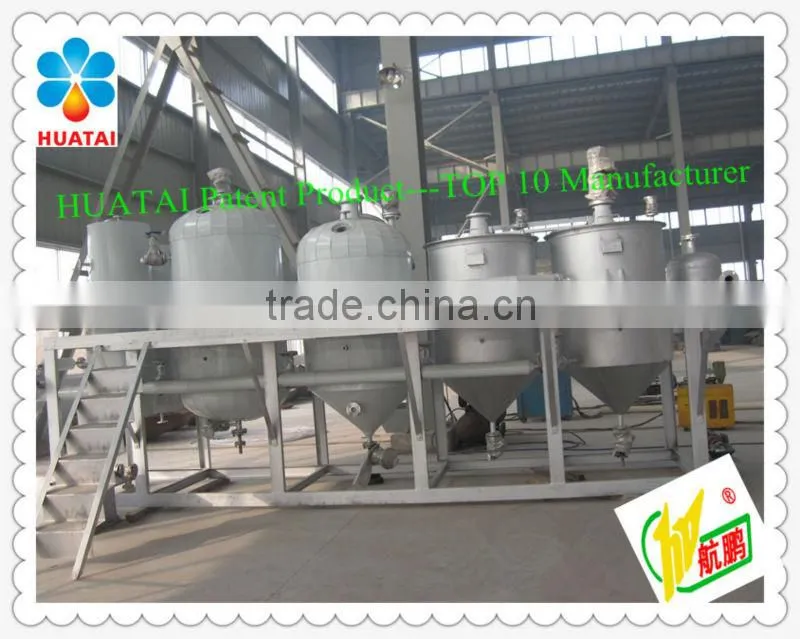

Introduction of main equipment:
Neutralization pot: For acid refining, alkali refining and water washing.
Decolorization pot: Bleach oil and remove pigment from oil.
Deodorization pot: Remove odor from oil(Made of stainless steel).
Heat conduction oil furnace: Provide heat energy for production,the temperature can reach 280°C.
Vacuum pump: Provide vacuum degree for decolorization and deodorization,up to above 755mgHg.
Air compressor: Dry decolorization bleaching clay.
Filter press: Filter bleaching clay.
Steam generator: Provide steam for deodorization & distillation
Equipment features:
Simple operation, saving investment, suitable for oil whose processing capacity is below 10T/D,such as soybean oil,cottonseed oil, rapeseed oil,sunflower oil and peanut oil, etc.
Specification: 2T/D---10T/D
It is organic coal-fired furnace loaded thermal, heat power is from 120kw to 30000kw,so it can meet most industry field.
Main technical data:
Type |
YLL-500 MA(40) |
YLL-700 MA(60) |
YLL-1000 MA(80) |
YLL-1200 MA(100) |
YLL-1400 MA(120) |
YLL-1900 MA(160) |
YLL-2300 MA(200) |
Power (kw) |
500 |
700 |
1000 |
1200 |
1400 |
1900 |
2300 |
Efficiency (%) |
≥70 |
≥70 |
≥70 |
≥79 |
≥79 |
≥79 |
≥79 |
Operation pressure(Mpa) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
Medium max temperature (°C) |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
Volume (m³) |
0.65 |
1.05 |
1.22 |
1.35 |
1.48 |
2.8 |
3.5 |
Flow (m³/h) |
57 |
62 |
88 |
105 |
120 |
167 |
185 |
Pipe bore (mm) |
100 |
100 |
125 |
125 |
125 |
150 |
150 |
System power (kw) |
28 |
28 |
50 |
50 |
50 |
75 |
85 |
L (mm) |
4573 |
4573 |
4730 |
4730 |
4730 |
5290 |
5291 |
H (mm) |
4609 |
4921 |
5030 |
5810 |
5670 |
6583 |
7361 |
A (mm) |
2400 |
2400 |
2840 |
2840 |
2840 |
2750 |
2750 |
G.W. (kg) |
15500 |
16500 |
18000 |
19000 |
20000 |
22000 |
23000 |
The above data is only for reference.
Our Company
Huatai machinery has developed projects including large scale oilseed pretreatment and pressing, oil extraction, oil refining and oil fractionation production line project,conveyor equipment project,corn/maize flour, grits, germ milling machines and corn processing lines,biodiesel technology,cottonseed, rice bran and soybean protein technology, and Palm Oil processing lines,etc.
