Educational training equipment,Experiment Apparatus,
Double Stage Compressor Refrigeration Training Device
1.Product overview

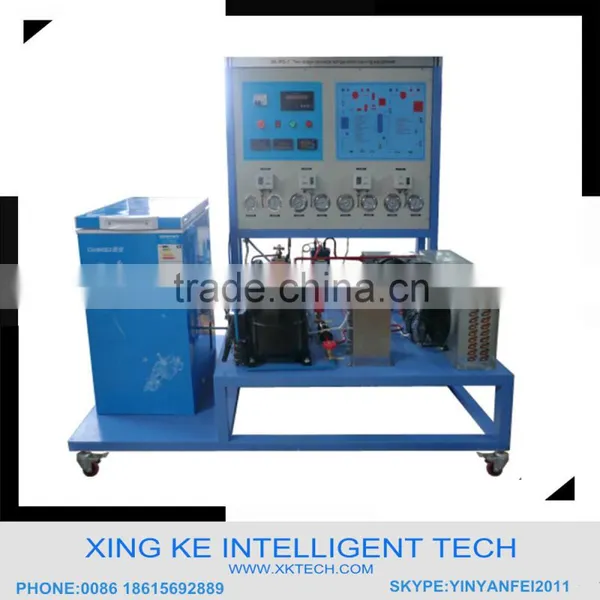

The device demonstrate to the students about two-stage cascade refrigeration system refrigeration structure constitution, working principle and circuit control system principle and circuit control system principle, help them to master the structure, function and regulation operation of two-stage cascade refrigeration system each component
The device constitutes by evaporator body, two-stage cascade refrigeration system, switch, instrument control display module, system principle diagram module. Refrigeration system contains two compressor, two set condenser, interstage cooler, expansion valve, liquid viewing glass and hand valve switch, etc. Electrical control system composed of earth leakage protection, emergency stop switch, digital ammeter, digital voltmeter and temperature control instrument, etc. It is equipped with 8 way temperature acquisition system which provide the data information of each main temperature point. The training device is equipped with 4 universal direction wheel which make the device convenient to move.
nical parameters
1)power supply: single-phase three-wire AC220V ±10% 50Hz
2)capacity:<3kVA
3)Refrigerant type:R404A,R23
4)size:1800*800*1800mm
5)weight: about 79kg
6)power supply main switch with earth leakage protection
7)with accident emergency stop button, voltage,current indication and machine on and off indication.
3.Training device accessories(not standard)
1)vacuum pump:1set
2)double meter valve fluorine filling meter:1 set
3)metric conversion adapter
4.Device function
1)To understand two-stage cascade refrigeration system each composed component
2)To understand the structure and function of two-stage cascade refrigeration system each composed component
3)to understand 8 way temperature inspection instrument regulation method
4)To understand the working principle of refrigeration system
5)To master the leakage detecting practice operation of two-stage cascade refrigeration system.
6)To master the pressure maintaining operation of two-stage cascade refrigeration system
7)To master vacuum pumping operation of two-stage cascade refrigeration system
8)To master the refrigerant filling practice operation of two-stage cascade refrigeration system
9)To understand the structure composition of two-stage cascade refrigeration system
10)To understand working principle of two-stage cascade refrigeration system
11)To understand circuit system control principle
12)To understand the characteristics of R404A refrigerant and R23 refrigerant.
