Educational training equipment,Experiment Apparatus, XK-RLU-1 Experimental training device about the measurement to refrigeratin
1,Product description
This product is a practical training device used for quantitative analysis of a system loading, which demonstrates the refrigerating principle, energy balance of the evaporator and condenser, and helps students know about cooling performances of different condensing temperatures, the operating of electrical equipment, and how to collect data by the data acquisition unit and various sensors so as to give quantitative analysis to the system loading.
This device is composed of a variable load compressor, an extension-type condenser, five different sensors, fluid viewing glass, and a heating tube. The electric control system includes leakage protectors, a scram button, digital display of alternating current, a DC voltmeter, an ampere meter and a power meter, a motor speed controller, and a tube heating controlling device. It is equipped with an intelligent monitor, data and temperature acquisition modules used for 5 sensors and 2 temperature ways respectively. It is installed 4 universal wheels for its easy mobility.
2,Technical parameters
Power supply: Single-phase and three-wire system AC220V ±10% 50Hz
Capacity: <3kVA
Refrigerating fluid: Fluoride-free R134a
Boundary dimension: 1250*660*1700mm
Net weight: About 79kg
The main power switch with earth leakage protection IΔn<30mA,t<0.1S
Of scram buttons, indicators of voltage and current

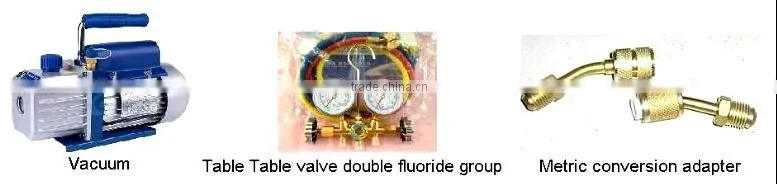

3,Attachments ( non- standard configuration)
1)Vacuum pump: 1
2)Double meter valve fluorine filling meter unit 1 set
3)Metric conversion adapter: 2 sets
4,Functions
This device helps students know of
1)Every unit and its effect of this device
2)How a refrigerating system works
3)The leakage-detecting operation
4)The pressure-maintaining operation
5)The vacuum-pumping operation
6)The method of filling refrigerant
7)The impact of fluid volume to the refrigerating effect
8)The structure of the device
9)The operating principle of this device
10)The working principle of the circuit control system
11)The application of the data acquisition system
12) The data information of the main parts when they are working
13)The quantitative calculation of the device
