XK-ZLZR2
INVERTER AIR CONDITION AND REFRIGERATOR COMPREHENSIVE TRAINING DEVICE
PRODUCT INTRODUCTION
XK-ZLZR2 mainly introduce the system structure and working principle of frequency conversion air conditioner and indirect cooling, direct cooling refrigerator; The understanding and detection method of the frequency conversion air conditioner components; The electrical control principle of frequency conversion air conditioner and indirect cooling, direct cooling refrigerator. Trainer with intelligent fault assessment function

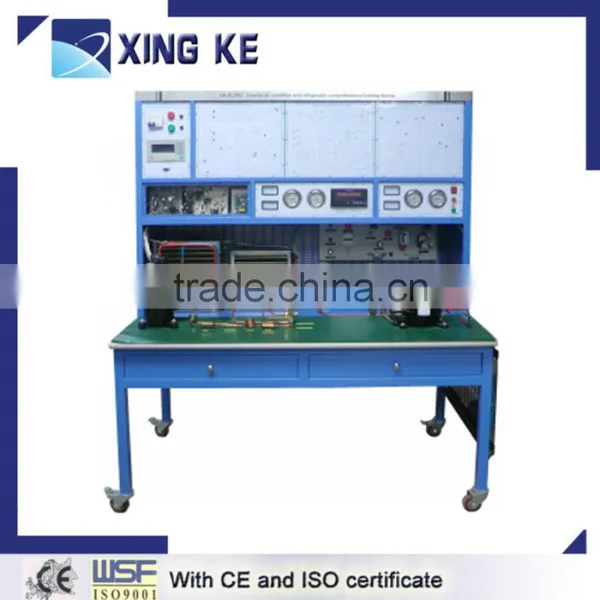

XK-ZLZR2 is composed by system of frequency conversion air conditioner and indirect cooling, direct cooling refrigerator. The electrical control system and pipeline system are separate, and all show outside, easy for user to observe and learn. Variable frequency air conditioner control panel adopts transparent organic glass to cover, more safety.
The electrical control system includes leakage protector, voltmeter, ammeter, 8-way temperature meter and electrical principle diagram with measurement point; pipeline system is composed by compressor, condenser, evaporator, lens, high-pressure gage, low-pressure gage.
The training bench adopts spraying plastics structure. The desktop is fireproofing, waterproofing, wear-resisting high density board, with strong structure. Bench with 4 universal wheels, easy for movement
TECHNICAL PARAMETERS
Input power supply: single phase three wires AC220V±10% 50Hz
Device capacitor: <1.5kVA
Dimension: 1465mm×820mm×1720mm
Refrigerant type: air condition system R22, refrigeration system R134a
Net weight: about 100Kg
Power main switch with leakage protection IΔn≤30mA,time ≤0.1S
With power supply indicator, voltage, current indicator, power supply indicator and temperature indicator
ACCESSORIES

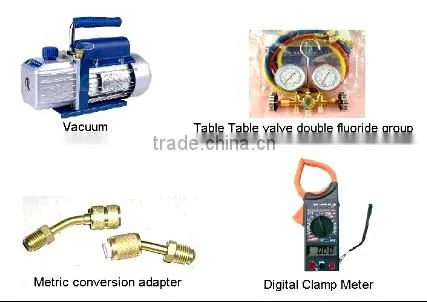

Digital clamp amperemeter: 1 pcs
Vacuum pump: 1 set
Double table valve fluoride meter group
Metric conversion adaptor: 2 sets
TRAINING ITEMS
Training of air conditioner
Understanding the main components of refrigeration system
The understanding and test of each component in electrical circuit
Understanding the system structure of frequency conversion air conditioner
Familiar with refrigeration, heating working principle of air conditioner
Understanding the frequency conversion principle of frequency conversion air conditioner
Circuit principle analysis of frequency conversion air conditioner each unit
Judgment method of air conditioning system lack of Fluorine
The judgment method of too much of refrigerant in system
Power supply circuit fault of air conditioner
Indoor unit +12V power supply circuit fault
Indoor unit +5V power supply circuit fault
Indoor unit pipeline temperature sensor fault
Indoor unit environment temperature sensor fault
Indoor unit reset circuit fault
Remote receiver power supply fault
Indoor fan power supply fault
Buzzer power supply fault
The circuit faults that indoor unit supply power for outdoor unit
Indoor unit communication circuit fault
Outdoor unit +15V power supply circuit fault
Outdoor unit +12V power supply circuit fault
Outdoor unit +5V power supply circuit fault
Outdoor unit environment temperature sensor fault
Outdoor unit pipeline temperature sensor fault
Exhaust gas temperature sensor of compressor fault
Four-way reversing valve supply circuit fault
Outdoor fan supply circuit fault
Outdoor unit supply circuit fault
Training of refrigerator
Understand the main components of refrigeration system
System structure, working principle of direct cooling, indirect cooling refrigerator
Electrical system working principle of direct cooling refrigerator
Electrical system working principle of indirect cooling refrigerator
The judgment of too much of refrigerant in system
The judgment of insufficient refrigerant in system
Complete machine power supply circuit fault of direct cooling refrigerator
Lighting lamp power supply circuit fault of direct cooling refrigerator
Direct cooling refrigerator temperature controller fault
Complete machine power supply circuit fault of indirect cooling refrigerator
Fan power supply circuit fault of indirect cooling refrigerator
Defrosting timer fault of indirect cooling refrigerator
Defrosting temperature controller fault of indirect cooling refrigerator
