China famous full continuous rice bran oil processing plant, extracter, rice bran oil refinery plant
Rice bran Pre-treatment Processing Plant
Processing Capacity: 30-1000T/D
Major equipment of rice bran pre-treatment workshop
1. vibrating screen,
2. de-stoner,
3. magnetic separator,
4. softening machine (conditioner),
5. expansion machine,
6. dryer
7. auger/scraper etc.
Application
High efficiency rice bran expansion, granulation for preparation of rice bran oil extraction.
This patent production line
rice bran pretreatment and expansion machines adopts reasonable designs. It can make high efficient expansion for rice bran. This rice bran oil expansion pretreatment is featured by high quality rice bran expansion, low human and production cost, small footprint, low power consumption etc.
2. Oil extraction workshop craft:
Capacity: 30-5000T/D
Major equipment
1.rotary multi cell extractor with stainless steel gate or drag chain extractor,
2.D.T.D.C desolventizer-toaster,
3. Total negative pressure evaporator,
4. Paraffin recovery equipment
Application
pressing cake, flakes, expanded material and all oilseeds with low oil content
The production line of rice bran oil extraction machine is a type of safe and technology advanced oil processing craft on basis of chemical extraction theory. 90% oil processing amount of developed countries use oil extraction process.
Parameters of the extraction phase
Moisture of extraction material |
5-8% |
temperature of extraction material |
50-55°C |
oil content of extraction material |
50-55°C |
oil content of extraction material |
14-18% |
thickness of extraction cake |
less than 13mm |
powder porosity of extraction material |
less than 15% (30 mesh) |
steam |
more than 0.6Mpa |
solvent |
national standard No. 6 solvent oil |
electric power |
50HZ 3*380V±10% |
Electric lighting |
50HZ 220V ±10% |
temperature of supplement water |
less than 25°C |
Hardness |
less than 10 |
volume of supplement water |
1-2m/t raw material |
temperature of recycle water |
less than 32°C |

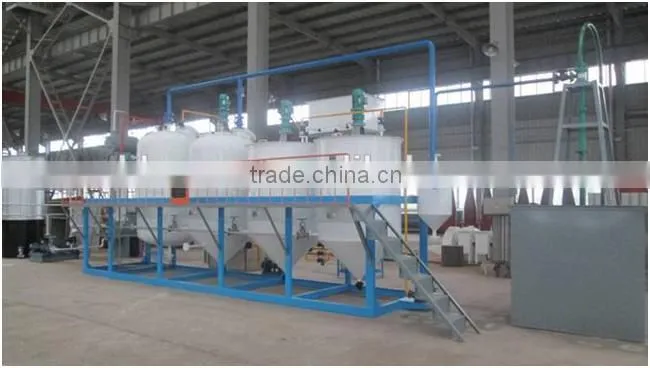

3. Rice bran Oil refining workshop craft:
Capacity: 5-600T/D
Processed Material: crude rice bran oil
Major equipment
degumming tank, neutralizing tank, centrifuge, heat exchanger, decolorization tower, filter, dedorization tower.
Application: high efficiency oil refining processing line from crude rice bran oil
National patent technologyof rice bran oil refining machine makes innovation on traditional rice bran oil refining process, acquiring deep acknowledgement of impurity removal, degumming, dehydration, deacidfication, dewaxing and deodorization etc.
Looing forward for your enquiry! Welcome to our factory!!!
