Mechatronics Education Training Device
1. Product overview:

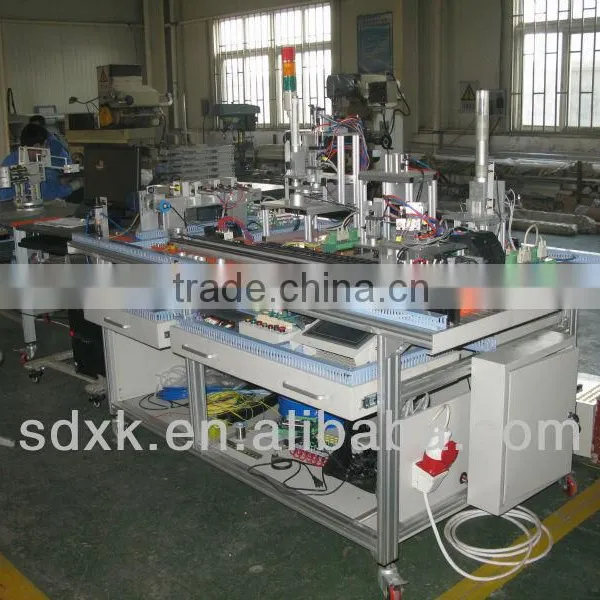

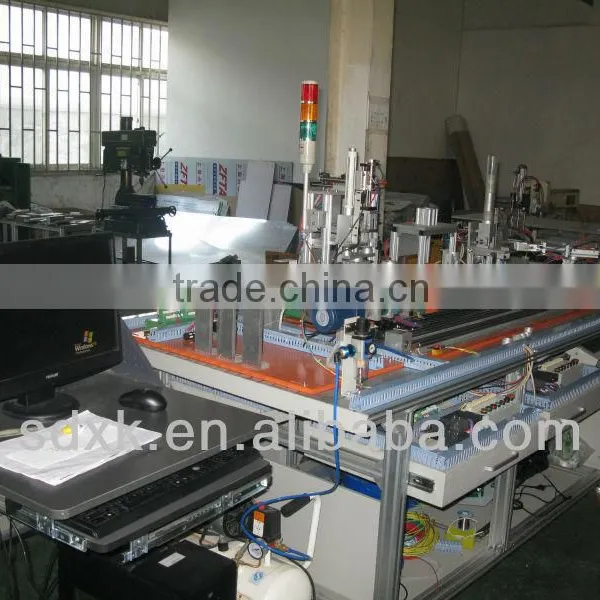

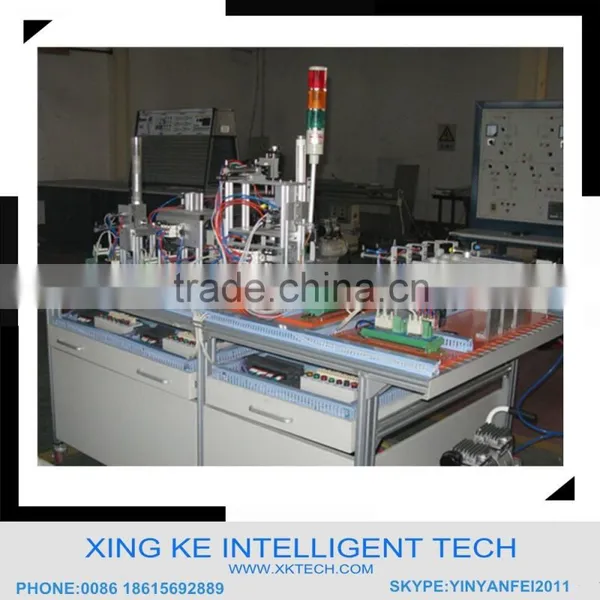

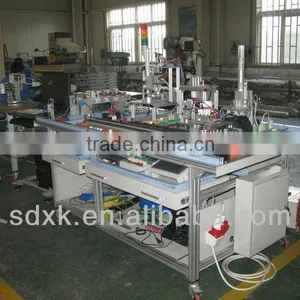

The device consists five units that are installed on the aluminum alloy guide rail
type training platform, such as feeding unit, manufacture unit, assembly unit, transport unit and sorting unit. Among these five units, each working unit can form a independent system, and meanwhile it is also a training system of mechatronics and relative techniques. According to training requirement or different working task can carry out different combination, installation and debugging, reach the goal of simulating productive function and integrated learning function, is fully appropriate for learning and teaching training evaluation and technical ability competition requirement.
The device contains each working stations, automatic production line, pneumatic system, inverter, PLC high-speed pulse and counting, servo motor, analog value, net technique, human-computer interface, configuration technique and other comprehensive training project.
2. Technical parameters
2.1 Working power supply: three-phase five wire AC 380 V±10% 50 Hz
2.2 Device dimension: long× wide× high=2100mm×1000mm×1500mm
2.3 Computer table dimension: long× wide× high=600mm×530mm×1000mm
2.4 Bench material: aluminum steel structure
2.5 Apparent power consumption : ≤2 KVA
3. Major configuration
3.1 Experiment table: aluminum steel structure, with idler wheel, as installation carrier for mechanical and electrical equipment of automatic production line, each equipment can be installed freely and flexibly.

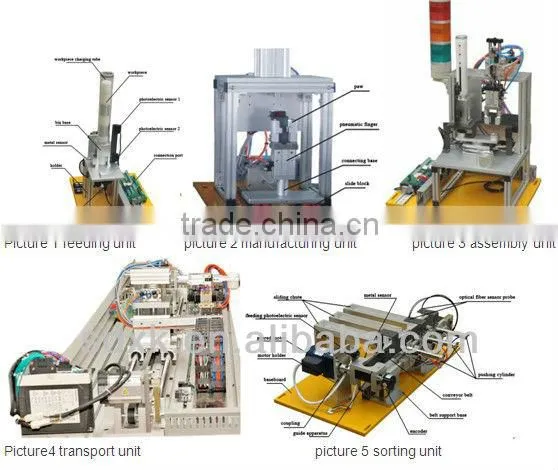

3.2 Feeding unit: mainly composes of vertical cylinder, top material cylinder, pushing cylinder, the material detection sensor components, mounting bracket platform, material detection device components, etc.
3.3 Assembly unit: mainly contains of feeding mechanism, rotating feeding unit, manipulator assembly unit, discharging platform and so on..
3.4 Manufacturing unit: mainly includes of slide material platform ,simulation punch and so on.
3.5 Transport unit: mainly consists of servo motor and driver, Four degrees freedom manipulator, rectilinear motion unit, proportion of transmission mechanism, multifunctional mounting bracket, Synchronous pulley, synchronous belt and so on.
3.6 Sorting unit: mainly includes of conveyor belt, three-phase motor driving unit, sorting pneumatic component, sensor detection unit, feedback and positioner, etc
3.7 PLC(programmable logic controller)and inverter: can select one kind from Siemens, Mitsubishi and huichuan
3.8 Touch screen:MCGS Kunlun tongtai, model: TPC7062KS
3.9 Air pump:W58 Fuxiang electromechanical, mute
3.10 Power distribution system
3.11 Computer cart
3.12 Tools
