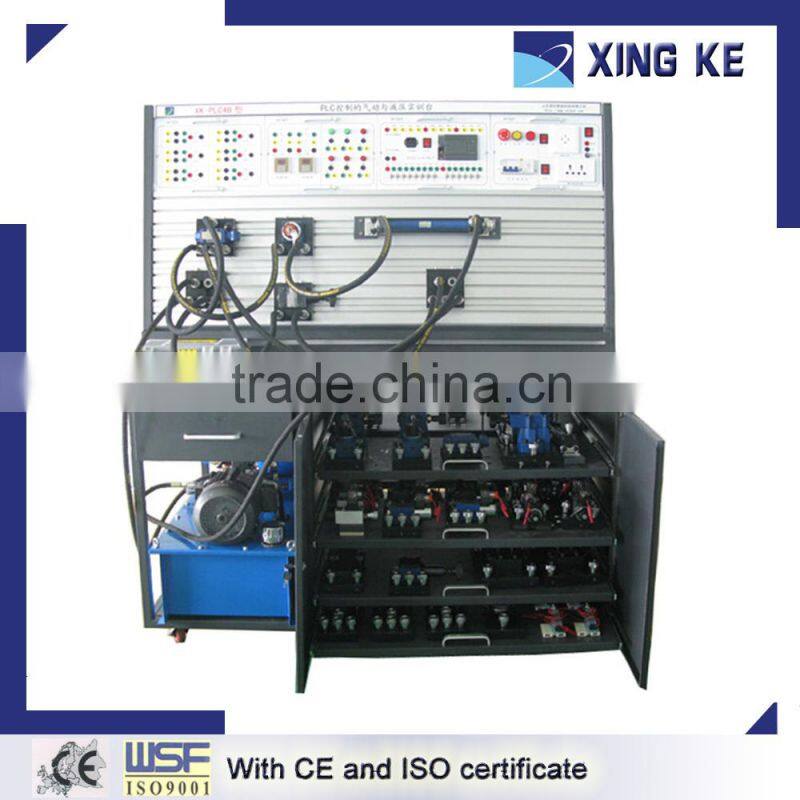

Hydraulic Trainer/Hydraulic Training Equipment(XK-YY2)for Education
(Educational Training Equipment)
1.1 Experimental platform adopts two kinds of control mode: group of relay control and PLC control. It is equipped with common hydraulic components, suitable for teaching practice of machinery,mechanical and electrical integration.
1.2 Operation area is aluminum panel, square pipe frame is provided with casters. On the right side is the control module of the platform, including the leakage protection function module,PLC control module,host computer communication port,a relay control module, switch module. Below the desktop is cabinet, used for the storage of hydraulic components.
2.1 Size: 1500 mm x 750 mm x 1800 mm; 120kg
2.2 The power supply: Three-phase AC380V, power < 500 VA.
2.3 The power modules
1) Three-phase and four phase system, AC380V, 50Hz
2) Three-phase power switch with a leakage protection
3) Equipped with emergency stop button and main power,power supply indicator lamp
4) Provides power supply output of DC24V
2.4Hydraulic special used pump station
2.5Tools accessories components
2.6 Annex: experimental jump line, commonly used tools, software disc
2.7 Manual
3.1 The PLC hardware and software
1) PLC hardware knowledge
2) Wiring training PLC
3) PLC internal resources for learning
4) Using of PLC programming software
5) Download,upload and online monitoring of PLC applications
3.2Hydraulic loop machine learning basic training
1)the electromagnetic valve commutation loop
2)O-function, M-function valve latch circuit
3)pilot-operated check valve atresia
4)the pressure it is set loop
5)two pressure control loop
6)valve decompression circuit
7)H-type electromagnetic valve unloaded loop
8)into the oil throttle speed control loop
9)circuit throttle speed control loop
10)the throttle valve in parallel with throttle speed control loop
11)the order of action of the sequence valve circuit
12)the order of action of the pressure relay loop
13)circuit limit switch the order of action
14)the order of the trip valve action loop
3.3 Configuration list
No. | Name | Model and Explanation | Unit | Qty |
1 | Experiment Bench Main Structure | PLC control Hydraulic experiment bench ( Components install type: T type groove) | set | 1 |
2 | Hydraulic pump station | Motor 1HP, 4P 0.75KW | Set | 1 |
Oil pump 6MPA,VP12-FA3 | Set | 1 | ||
Oil tank | Set | 1 | ||
overflow valve | Set | 1 | ||
oil filter | Set | 1 | ||
Temperature liquidometer | Set | 1 | ||
3 | Hydraulic component | Double acting hydraulic cylinder(MOB32×200-LB) | pcs | 2 |
direct-acting overflow valve DBDH6P-10/B200 | Pcs | 2 | ||
hydraulic control one-way valve SV10PB1-30B | pcs | 2 | ||
one-way valve S8A22/B | Pcs | 2 | ||
one-way throttle valve DV8-1-10B | Pcs | 1 | ||
reducing valveZDR6DP1-30B/210YM | Pcs | 1 | ||
H type three position four way Double solenoid directional control valve(4WE6H61B/CG24NZ4) | Pcs | 1 | ||
O Type three position four way Double solenoid directional control valve 4WE6E61B/CG24NZ4 | Pcs | 1 | ||
M type three position four way Double solenoid directional control valve 4WE6G61B/CG24NZ4 | Pcs | 1 | ||
Two position three way Single control solenoid valve 3WE6A60B/CG24NZ4 | Pcs | 2 | ||
Two position four way Single control solenoid direction valve 4WE6C61B/CG24NZ4 | Pcs | 1 | ||
Approach switch | Pcs | 2 | ||
Four way | Pcs | 6 | ||
Hydraulic oil | KGS | 20 | ||
4 | Tools | tools box | Pcs | 1 |
Multimeter | Pcs | 1 | ||
Screwdriver 6×100(flat type) | Pcs | 1 | ||
Screwdriver 6×100(cross type) | Pcs | 1 | ||
Screwdriver 3×80 (flat type) | Pcs | 1 | ||
Screwdriver 3×80 (cross type) | Pcs | 1 | ||
Scissor | Pcs | 1 | ||
Diagonal pliers | Pcs | 1 | ||
nipper pliers | Pcs | 1 | ||
internal hexagonal wrench | Set | 1 | ||
5 | Hydraulic accessories | oil plug | Pcs | 20 |
oil pipe | Pcs | 20 | ||
quick coupling | Pcs | 30 | ||
6 | Experiment wires | KT4ABD51, 200mm | Pcs | 10 |
KT4ABD51,400mm | Pcs | 10 | ||
KT4ABD51,600mm | Pcs | 10 | ||
7 | Experiment book |
|
| 1 |
9 | Control panel | Include time relay, power, circuit protection system etc. | set | 1 |
