Specifications
1.educational training equipment2.XK-SK0625 CNC machine tools

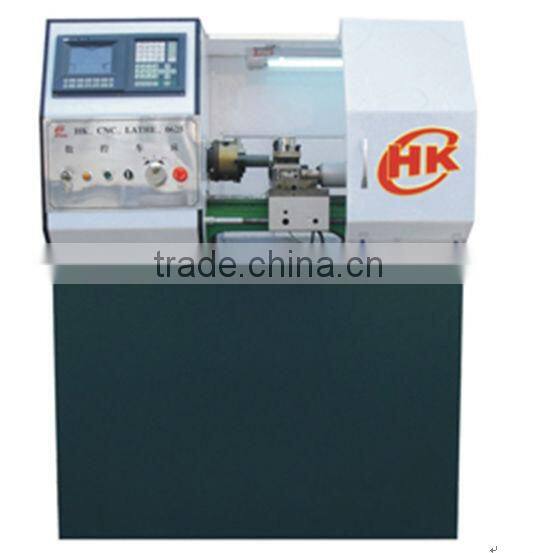

Vocational training equipment, XK-SK0625 CNC machine tools
The main parameters:
1,Lathe bed maximum turning diameter: 250 mm
2,Bed on the biggest turning diameter: 150 mm
3,Rest on maximum turning diameter: 90 mm
4,Maximum processing length: 300 mm
5,Machine tool center high is 125 mm
6,The spindle hole diameter: 32 mm
7,Taper spindle hole head end: Morse number five
8,Spindle speed (VVVF) : 100-1500 - mm/min
9,Automatic tool post: four locations
10,Minimum feeding: 0.005 mm
11,Two axes linkage control shaft number: + spindle control
12,The X axis fast-forward speed: 1500 mm/min
13,The Z axis fast-forward speed: 1500 mm/min
14,Main motor power: 0.75 KW
15,The tailstock sleeve trip: 90 mm
16,Cooling pump power: 0.09 KW
17,Weight: 350 kg
18,Overall dimensions (length x width x height) : 1230 x630x1535mm
