1 Product overview

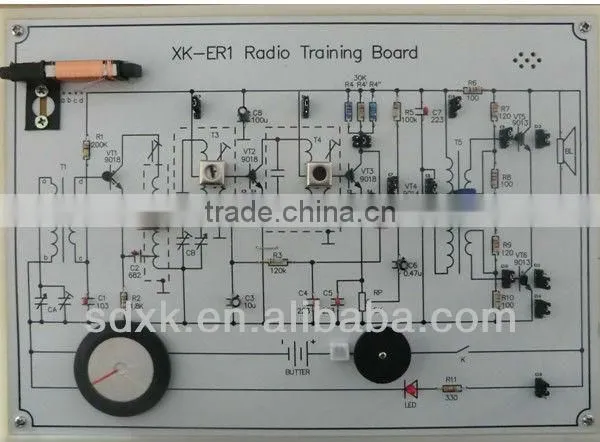

XK-ER1 type radio training board adopt typical six tube superheterodyne circuit, has working stability, high sensitivity, good selectivity and other properties. Amplifier side adopt power amplifier (OTL circuit) without output transformer which has properties as high effectively, good frequency property, loud voice and power saving. Place fault point on circuit special point and man-made kinds of faults, use to understand the circuit fault and learn the troubleshooting method. Basic circuit picture of XK-ER1 type radio is as showing in picture 2.1.In order to analyze conveniently, can refer to block diagram drawing in working process.
2 Working principle
2.1 Input tuning circuit
2.2 Frequency changer circuit
2.3 Mixer frequency circuit
2.4 Intermediate frequency amplifier circuit
2.5 Detection and automatic gain control circuit
2.6 Prepose low amplifier circuit
2.7 Power amplifier (OTL circuit)
3.Debugging steps
3.1 Regulate quiescent point of each stage trasnsistors
3.2 Regulate IF(intermediate frequency)
3.3 Regulate graduation(regulate inductance and capacitance of oscillation circuit)
3.4 Unified regulation(regulate inductance and capacitance of input circuit)
