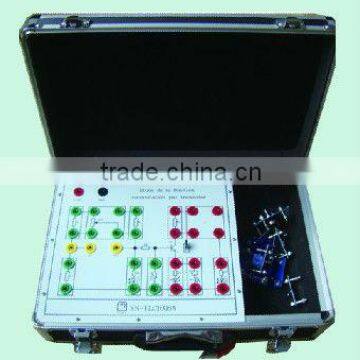

Lab Training Device Experiment Box Electronic Training Kit Educational Device XK-ELC1008A Transistor Applications Training

wooden case

1 Product Overview

The experimental box is mainly used for learning diodes, transistors working principle, and typical application circuit. Experimental box by the composition of the photodiode, transistor, 12V relays, etc., wiring K4 jack. In addition, additional experimental box without desoldering installation template can be demolished.

2 Main parameters:

1) The power supply: AC220V ± 10%, 50HZ, ≤ 100W

2)Signal source: 12V

3)Working environment: no dust, oil mist and corrosive gases

4) Operating temperature: 0 to +50 ° C

5) Storage Temperature: -20 ° C to +80 ° C

6)Humidity: 40 ~ 90% RH

7) size: 370mm × 220mm × 120mm (L * W * H)

8) Weight: <2KG

3 Main function

1)Learning photodiode works and use

2) transistor learning principles and use

3)To learn the transistor open collector drive circuit works and use

4)Learning transistor driven relay circuit works and use

XINGKE Products Specifications

The First-Class Vocational Teaching Equipment Supplier/Manufacturer in People’s Republic of China.
1. Good quality,  Reasonable design and original layout, be suitable for teaching and training.
2.Reasonable price
3.OEM Service

XINGKE Mainly Products Range:

1. Electrical Automation Training Equipment

2. Electronic/Electrical Technology Training Device.

3. Air-Conditioning and Refrigeration Training Sets

4. Power-Electronics Teaching Appliance

5. Mechanical and Electrical Integration Educational Apparatus

6. Sensor and Robot etc. Training Model

7. Car Maintenance Training Equipment/ Auto Electrical/Teaching Demonstration Board

8. Iron-making/Steel Rolling/Nonferrous Metal Smeltery Virtual Production Line Simulation Training System and Construction Machinery Virtual Simulator.

9. Supply OEM Services.

1. The advantage of our Product:

1).We have manufactured for over 10 years.

We are the leading manufacturer of Educational Equipment Industry in China. We have a large group of material suppliers. They are stable and very cooperated due to our big factory strength.

2).The stable output was upon the stable quality. We will schedule the annual orders plan for you upon the stable annual output.

3).Our tech and service team was very powerful and professional.

We always can meet your requirements upon our tech and service. The large group of tech and service team will meet you around 24 hours. And we will develop the new products upon your potential orders.

4).We have our own brand “XINGKE”

5) We supply quality equipment at economical prices.

2. Our Factory:

XINGKE Industry Park located in the Middle Section of IndustryⅡRoad, Zhangqiu, Jinan, Shandong, China. Our factory covered with 1700 square meter.

3. Packaging And Delivery Details:

Packaging Detail: 1. Packaging for training kit: plastic package + carton + plywood pallets

2. Packaging for training equipment: plastic package + plywood pallet

3. As the clients' requirement, print your logo, etc.

Delivery Detail: 20 to 40 days after Received advanced payment (depend on the total amount)

4. After-Service And Training for Foreign User

1. For our exported equipments, the Warranty is one year, within one year, if there is any problem for spare parts(except damage by man-made) We can supply and replacement free of charge. And if exceed one year, we also supply the service, and process to instruct maintain, and instead the parts charge a certain fee.

2. We dispatch our professional and experienced engineer to install equipments and make training for the end users.

5. Reputation:

Our products earn a good reputation among our customers . We welcome customers , business associations and friends from all of the world to contact with us and seek cooperation for mutual benefits.

NOTE: All items are directly from factory, We would allow you a quantity discount, so please contact with me when you plan an order, we will answer back ASAP
