1. Product Overviews:

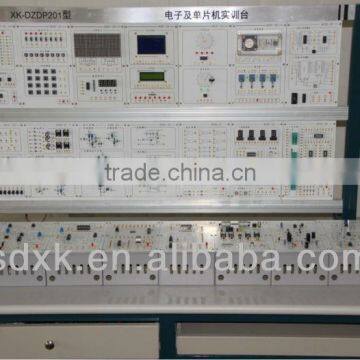

XKDZDP201 integrated the analog electronics technique handled box,digital electronic technique handled box and SCM handled box.
XKDZDZ201 is one training equipment with strong integration, suitable for various higher institution,vocational college,technician training school to proceed teaching experiments,skill assessment and pre-job training.
XK-DZDP201 adopts small modularization standard structure, it’s with reasonable layout and well appearance.
Training bench include AC power supply,DC power supply,function signal generator,analog electronic
handled box (various of diode circuit,transistor circuit,amplifying circuit,waveform generator circuit,
discrete device etc.), digital electronic handled box (various gate circuit,input output,trigger circuit,
combination/sequential logic circuit,CPLD circuit etc.), SCM handled box (51 SCM module,display,motor
drive,temperature control etc), free combination to realize various of experiments.
2. Experiment Bench Technology Parameter:
2.1 Product Size: 1700mm × 700mm × 1600mm (L*W*H)
2.2 Power Supply: single phase three wires AC220V, 50Hz, 0.5KVA
3. Signal Source Technology Parameter
3.1 Adjustable 1.25~15V DC voltage source, capacity 1A
3.2 2-way AC 15V voltage source, capacity 1A
3.3 DC ±12V voltage source, capacity 0.5A
3.4 DC ±5V voltage source, capacity 0.5A
3.5 Signal generator: output frequency,square wave,triangular wave,sine wave
4. Accessory for experiment bench
4.1 Experiment jumper wires: 50 pcs
4.2 Bread board jumper wires: 30 pcs
4.3 USB blaster download wire: 1 pcs
4.4 Quartus II7.2 developed environment: 1set
4.5 General programmer: 1set
4.6 Keil developed environment: 1 set
4.7 Programmer and software (USBASP AVR/51 programmer): 1set
4.8 English manual: 1 pcs
5. Experiment Project
5.1 Analog electronic part experiment
1) Rectifier circuit experiment
2) Filter circuit experiment
3) Stabilivolt diode experiment
4) Triode series connection stabilivolt power supply experiment
5) Three-terminal voltage regulator power supply experiment
6) Common emitter amplifier circuit experiment
7) Common collector amplifier circuit experiment
8) Common base amplifier circuit experiment
9) Differential amplifier circuit experiment
10) Resistance capacity coupling two stage amplifier circuit experiment
11) Direct coupling two-stage amplifier circuit experiment
12) Photoelectric coupling circuit
13) Proportion operation amplifier circuit experiment
14) Addition circuit experiment
15) Subtraction circuit experiment
16) Differential circuit experiment
17) Integral circuit experiment
18) Active low-pass filter circuit experiment
19) Active high-pass filter circuit experiment
20) RC bridge sine wave oscillator circuit experiment
21) LC capacitance feedback sinusoidal wave oscillation circuit experiment
22) Power amplifier circuit experiment
5.2 Part of digital electronic experiment
1) Research of semiconductor diode,triode switch characteristics
2) Discrete component logic gate circuit
3) Basic gate circuit
4) Logic function and parameter test of TTL integration logic gate
5) Logic function and parameter test of CMOS integrated logical gate
6) Applications of TTL collector open circuit gate and tri-state output gate
7) Bombinational logic circuit analysis and design
8) Decoder and its application
9) Numerical comparator experiment
10) Arithmetic logic unit experiment
11) Trigger and its application
12) Shift register and its application
13) Counter and its application
14) Pulse signal generates circuit
15) Pulse time delay and waveform shaping circuit
16) 555 time-base circuit and its application
17) D/A conversion circuit
18) A/D conversion circuit
19) RAM reading and writing experiment
20) ROM experiment
21) GAL programming experiment
22) CPLD programming experiment
23) Multi-way responder
5.3 Part of SCM experiments
1) Flow water light experiment
2) Digital tube display experiment
3) Character LCD display experiment
4) Lattice LCD display experiment
5) 16 x 16 LED dot matrix display experiment
6) Keys input experiment
7) Matrix keyboard input experiment
8) RS232 communication experiment
9) Buzzer driving experiment
10) AT24C256 storage experiment
11) 93C46 storage experiment
12) Temperature control experiment
13) Stepping motor drive experiments
14) DC motor drive experiments
15) Real time clock experiment
