1. Product overview:

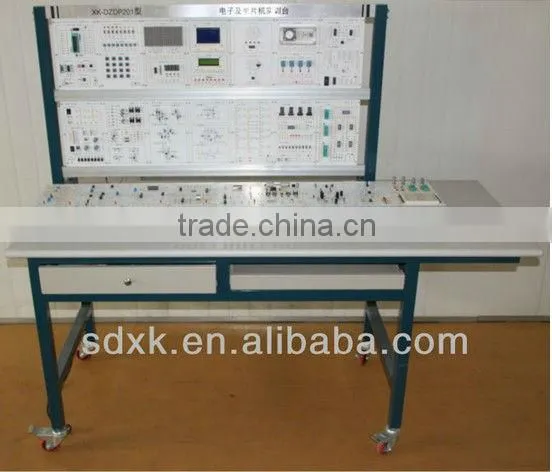

XK-DZDP201 type analog-digital-microcontroller electronic training device is designed for integration analog electronic, digital-electronic and 51 SCM comprehensive training device. It suit for study and practice in vocational colleges
and SCM related specialty. This bench adopts module structure, reasonable design, beautiful appearance.
Clear panel diagram.
2. Technical parameter
2.1 Power supply: AC220V±10%,50Hz,≤100W
2.2 Size: 1600mm*500mm*1600mm (L*W*H)
2.3 Working temperature: 0~+50°C
2.4 Store temperature: -20°C~+80°C
2.5 Humidity: 40~90%RH
3. Configuration list
3.1 Hanging box

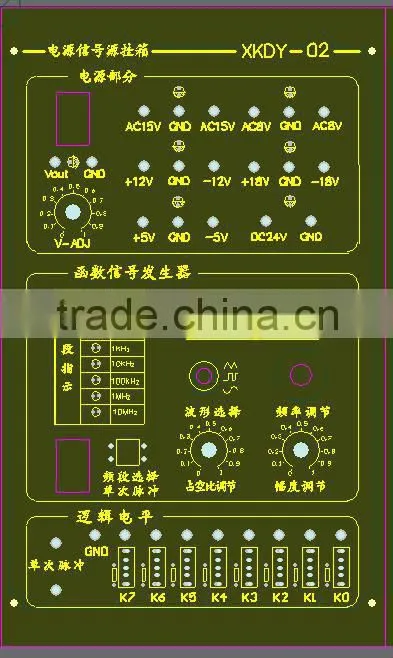

1) XKDY-02 power supply hanging box
Includes power pack, function generator, logic level.
3.2,Analog electronic hanging box
1)XKMD-01 The power hanging box
Include: rectifying unit, filter capacitor, three terminal regulator, battery extension, series regulator.
2)XKMD-02 Triode apply hanging box
Include: common base, emitter, collector, differential amplification circuit; dynatron buz, relay.
3)XKMD-03 Multistage amplifier circuit hanging box
Includes: direct coupling, resistance-capacitance coupling, photoelectrical coupling two stage amplifier circuit.
4)XKMD-04 XKMD-04 amplifying circuit feedback hanging box
Include: voltage series-parallel feedback, current series parallel feedback.
5)XKMD-05 signal processing and dispose hanging box
Include: operation amplifier experiment module, extended module.
6)XKMD-06 waveform generator and waveform transform hanging box
7)XKMD-07 Power amplifier hanging box
Include: discrete component, integrated circuit power amplifier circuit.
3.3,Digital electronic hanging box

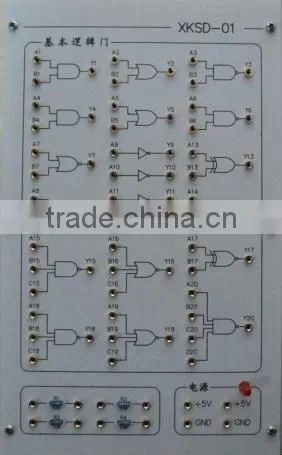

1)XKSD-01 Hanging box
Includes “And” gate, “OR” gate, “NOT” gate, “NAND” gate, “NOR” gate, exclusive-OR gate and “XNOR” gate.

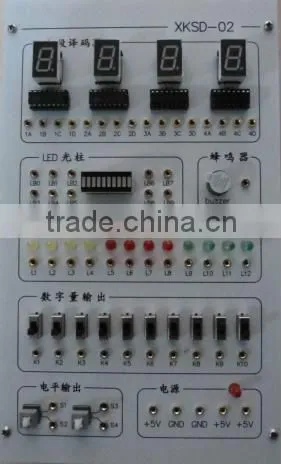

2)XKSD-02 hanging box
Includes common cathode/common anode nixie tube display, LED streamer, LED light display, buzzer,
DO, level output module.

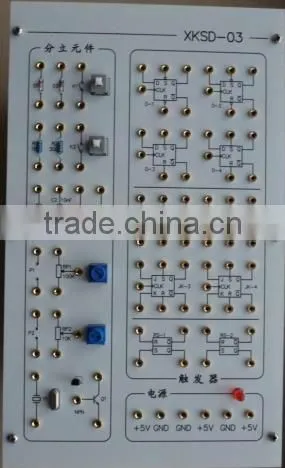

3)XKSD-03 hanging box
It can finish required experiment and extensive test.
4)XKSD-04 hanging box
Includes arithmetic logic unit, 3-8 decoder and binary counter module
5)XKSD-05 hanging box
It includes discrete component and trigger module.
6)XKSD-06 hanging box
Includes 555 chip constitute the monostable trigger, Schmitt trigger, multivibrator and 555 custom function module.
7)XKSD-07 hanging box

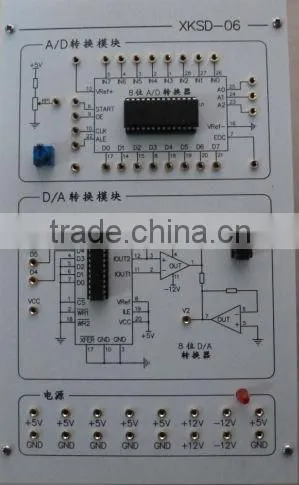

Includes AD switch and DA switch module,
8)XKSD-08 hanging box
Includes RAM and ROM experiment modules.

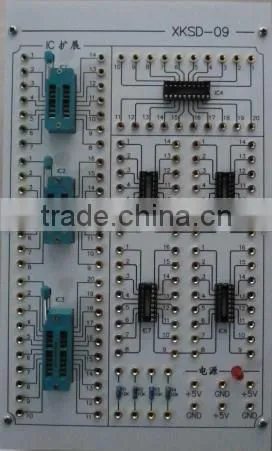

9)XKSD-09 hanging box
Includes CPLD chip EPM7128S and GAL chip GAL16V8D.
3.4,SCM hanging box

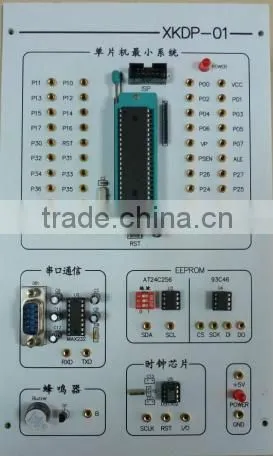

1)XKDP-01 hanging box
Includes 51 SCM minimum system, serial port communication, EEPROM, clock chip, buzzer circuit.
2)XKDP-02 hanging box

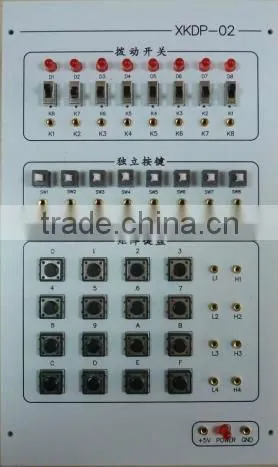

Includes toggle switch, independent key, matrix keyboard output interface.
3)XKDP-03 hanging box
Include lattice screen display and nixie tube display.
4)XKDP-04 hanging box
Include LCD12864 display, LCD1602 display, LED display
5)XKDP-04 hanging box
Include relay drive, temperature sensor circuit
6)XKDP-06 hanging box
Includes stepper motor drive, continuous current dynamo
4,Experiment content
4.1,SCM experiment
1)Serial port communication
2)EEPROM read write experiment
3)Clock read write experiment
4)Buzzer experiment
5)Lattice screen display experiment
6)Nixie tube dynamic display experiment
7)Light water experiment
8) LCD12864 display experiment
9)LCD1602 display experiment
10) Relay drive experiment
11)Temperature data collection experiment
12)Stepper motor drive experiment
13)DC motor drive experiment
14)DC motor velocity measurement experiment
4.2,Analog electronics experiment
15) Half-wave rectifying circuit experiment
16) Full-wave rectifying circuit experiment
17) Bridge type rectifying circuit experiment
18) Filter circuit experiment
19) Voltage regulator diode circuit experiment
20) Fixed voltage output three terminals regulator circuit experiment
21) Adjustable voltage output three terminals regulator’s circuit experiment
22) Parallel regulator power experiment
23) Basic dynatron amplifying circuit
24) Common-emitter amplifying circuit
25) Common-base amplifying circuit
26) Common collector amplifying circuit
27) Differential amplifying circuit
28) Multistage amplifying circuit
29) Direct coupling two stage amplifying circuit
30) Resistance-capacitance two-stage amplifying circuit
31) Photocoupling two-stage amplifying circuit
32) Amplifying circuit’s feedback
33) Voltage parallel negative feedback circuit
34) Current parallel negative feedback circuit
35) Voltage serial negative feedback circuit
36) Current serial negative feedback circuit
37) Signal operation and dispose circuit
38) Ratio calculation circuit
39) Plus minus calculation circuit
40) Minus calculation circuit
4.3,Logic electron experiment
58) Semiconductor diode, dynatron switch character’s research.
59)Discrete component logic gate circuit
60)TTL integrated logic gate’s logic function and parameter test
