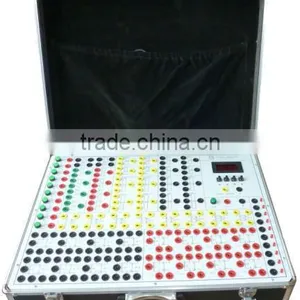

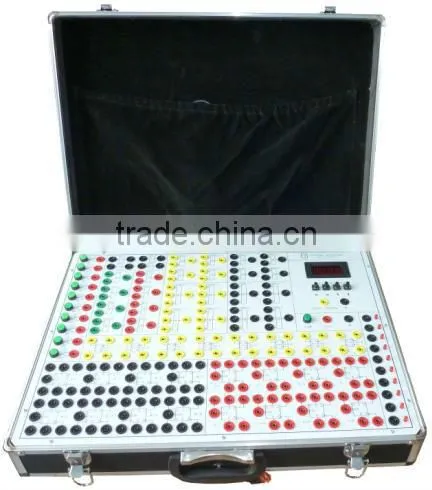

Electronic training kit, High Performance Digital Logic Electronic Trainer
1,Product Overview
Digital logic test box 4 one input "non-logic gates, four 2-input" or "logic gate, four 2-input" and "logic gate, four 2-input and non-logic gates,4-input "and not" logic gates, four 2-input OR logic gate, four 3-input OR logic gate, 8 JK flip-flop 8 D flip-flop 8RS flip-flop 10 high brightness LED, 5-button switch 5 twist switch, 1 to 2KHz signal source constitutes. For learning "non" or "," "," not "and" non-logic gates, JK flip-flop works, works of the D flip-flop, RS flip-flop works. The panel has a power indicator.
2,main parameters:
1) The power supply:AC220V±10%,50HZ,≤100W
2) Signal source:0~2KHz
3) Working environment:no dust, oil mist and corrosive gases
4) Operating temperature: 0 to +50 ° C
5) Storage Temperature: -20 ° C to +80 ° C
6) Humidity: 40 ~ 90% RH
7) size: 370 * 330 * 120 (L * W * H)
8) Weight: <2KG.
3,Main function
1) to learn the works of the "non-logic gate
2) to learn "or" gate works
3) to learn "and" logic gate works
4) to learn NOR gate works
5) to learn AND. NOR logic gates
6) study the works of JK flip-flop
7) study the works of the D flip-flop
8) to study the working principle of the RS Flip-Flop
9) to learn the digital combinational logic
