1.Electronic Technology Experiment Device2.Addition and Subtraction Arithmetic Unit
vocational training equipment, Addition and Subtraction Arithmetic Unit
1.Project Overview
Addition and subtraction arithmetic unit consists of addition and subtraction circuit that composed of operational amplifier and voltmeter that composed of ICL7107.Addition and subtraction circuit can be able to add and subtract for the input signal.Voltmeter circuit is divided into five gear,can do measurement and display on different voltage.

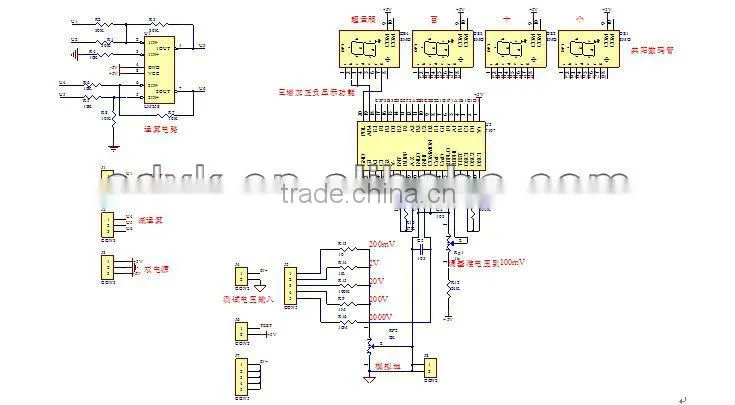

2.schematic diagram
3.Training project
1) Painting circuit schematic diagram and PCB diagram with Protel software
2) Electronic simulation
3) Electronic components selection and testing
4) Circuit board welding and debugging
5) Lab report
4.List of Components
Name |
Type |
No. |
2Pline pressing terminal |
separation distance 4.8mm |
1
|
3P line pressing terminal |
separation distance 5.08mm |
1 |
Capacitance |
224 CBB |
1 |
Capacitance |
474 CBB |
1 |
Capacitance |
103 CBB |
2 |
Capacitance |
101 CBB |
1 |
Capacitance |
34P CBB |
2 |
Resistance |
30K |
3 |
Resistance |
10K |
5 |
Resistance |
10 |
1 |
Resistance |
1K |
2 |
Resistance |
100K |
2 |
Resistance |
1M |
1 |
Resistance |
10M |
1 |
Resistance |
47K |
1 |
Resistance |
24K |
1 |
Common anode nixie tube |
5inch Common anode red |
4 |
|
Single round socket
|
strip
|
2 |
Chip |
ICL7107 |
1 |
Chip |
LM358 |
1 |
Nut |
4 |
|
Srew |
3*10 |
4 |
chip carrier |
40pin |
1 |
chip carrier |
8p |
1 |
Single row pin |
1 |
|
3296potentiometer |
1K |
1 |
3296potentiometer |
2K |
1 |
|
MINI JUMPER
|
Insert into the single row pin |
2 |
