Vocational Training Equipment,Four-way Responder

Vocational Training Equipment,Four-way Responder photo-1
Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
XINGKE
Model Number:
XK-DZTJ05
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name XINGKE
Model Number XK-DZTJ05

Specifications

1.Electronic Technology Experiment Device
2.Four-way Responder

vocational training equipment,  Four-way Responder

1.Project Overview



       The four buttons on the plate are the answer first buttons.Control circuit will lock the button that is first pressed. And disable the other buttons. Digital tube display the button Numbers at the same time. .

.

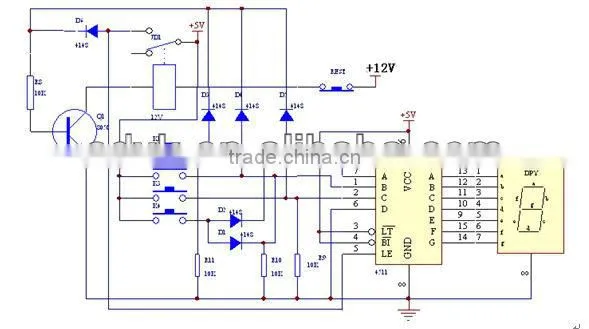

2.schematic diagram



 vocational training equipment,Four-way Responder





3.Training project



1)    Painting circuit schematic diagram and PCB diagram with Protel software

2)    Electronic simulation

3)    Electronic components selection and testing

4)    Circuit board welding and debugging

5)    Lab report



4.List of Components



Name

Type

No

Nixie tube

common cathode

1

Resistor

330

7

Resistor

10K

4

Button

6pin

5

Diode

4148

6

Relay

5V/5pin

1

Audion

8050

1

Chip

CD4511

1

Jack

K2A33

2

manifold block

16pin

1

Screw

3*10

4

Nut

D3

4
