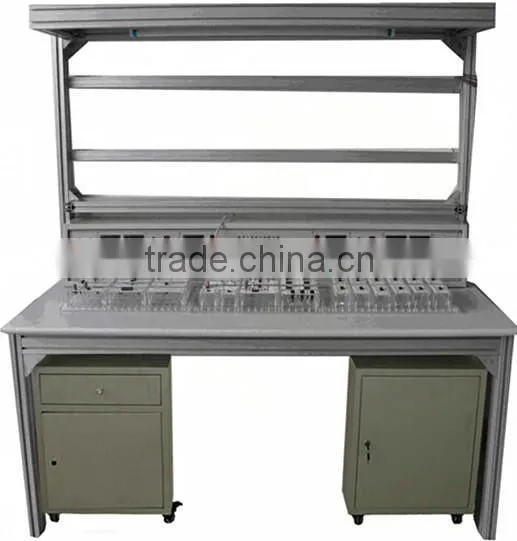

XK-DZMT3 Electronics Lab Experiments Trainer, Microprocessor Trainer, Electronic Training Kits, Electronics Lab Kits
1. Product Overviews:
XK-DZMT3 suitable for vocational education school lab new construction and upgrading, supplying the ideal equipment for school quickly develop training course.

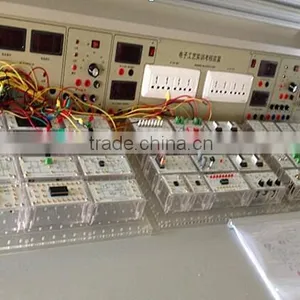

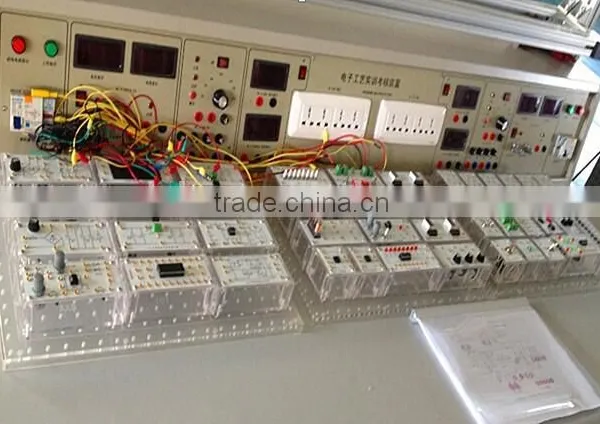

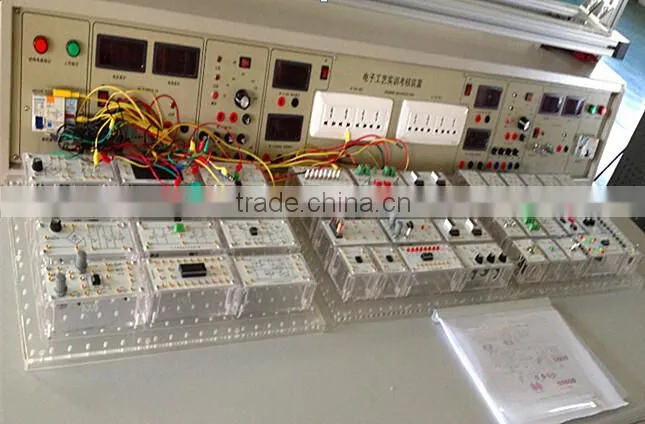

XK-DZMT3 mainly consists of high density platform structure,experiment module (product range that built by modules involves household appliances,industry,wireless etc. Unit module circuit include sensor,signal process,display,interface circuit,microprocessor etc),power control screen,lighting system constitution; .Equipped with universal wheels and offers the components cabinet with the bench used for storing the components,tools and experiment handled box.
2. Experiment Bench Technology Parameter:
2.1 Product Size: 1600mm × 850mm × 1800mm
2.2 Power Supply: single phase AC220V, <1500VA
2.4 With grounding protection,air switch with leakage protection,fuse
3. Signal Source Technology Parameter
3.1 DC ±5V voltage source
3.2 DC ±12V voltage source
3.3 Seven files adjustable 3~24V AC power source
3.4 Adjustable 0~24V AC power source
4. Accessory for Experiment
4.1 Experiment wires: 50 pieces
4.2 Bread board jumper wires: 30 pieces
4.3 Digit dual trace oscilloscope: 1 set
4.4 Digit frequency meter: 1 set
5. Experiment Project
5.1 Analog electronics technical composite application, innovate training project
1) Performance test and application of common used diode
2) Measurement of bipolar transistor and field-effect tube output characteristic
3) Research of single tube amplifying circuit
4) Research of dipolar amplifying circuit and negative feedback amplifying circuit
5) Debugging of audiophone circuit (electronics products circuit) (integrated application)
6) Constant current charging circuit (field-effect tube application) (electronics products circuit) (integrated application)
7) Audion amplifying circuit trouble removal
8) Research of rectifying, filtering and voltage regulator circuit
9) Research of DC voltage stabilization positive,negative power circuit
10)Typical composite complementary OTL power amplifier circuit debugging (electronic product circuit) (integrated application)
11)OTL power amplifier circuit trouble removal
12)LM386 integrated audio power amplifier circuit and application (electronic product circuit) (integrated application)
13)Operational amplifier basic operational circuit
14)Operational amplifier constitutes operation circuit,differential operation circuit
15)Research of that operational amplifier constitutes voltage comparator transfer characteristic
16)Production and debugging of gas sensor makes smoke alarm (electronics product circuit) (integrated application)
17)Research and debugging of square wave,triangular wave and sawtooth wave generatorcircuit
18)Making competition of square wave,triangular wave and sine wave generator
19)Production and debugging of RC sine-wave oscillator
20)Capacity three-point type LC sine-wave generator
21)Active filter circuit research
22)Application and debugging of DC-DC integrated voltage inversion circuit (electronic product circuit) (integrated application)
23) Produce and debugging of constant temperature control circuit (electronic product circuit) (integrated application)
5.2 Digital electronic technique application,innovation training projects
1)Basic logic gate circuit functions test
2)Priority encoder functions test
3)Binary system decoder and data selector functions test
4)Full adder and carry look ahead full adder functions test
5) Value comparator function test
6) Seven segments code LATCH/coding/actuator function test
7) Various triggers function test
8) Bi-directional shifting register function test
9) The 2151 decimal system counter function test
10) Two bits decimal count/decode/drive/display circuit
11) Reversible decimal count circuit function test
12) N system counting circuit function test
13) 555 timer basic application circuit
14) Differential type monostable trigger
15) Integration monostable trigger and application
16) Integration Schmitt trigger and application
5.3 Integrated application training project
1) Acousto-optic control energy saving light circuit (electronic products circuit) (integrated application)
2) 8 wires data transmission circuit (electronic products circuit) (integrated application)
3) 4 bits ring counting beat generator (electronic product circuit) (integrated application)
4) Pulse signal generator (electronic product circuit) (integrated application)
5) Ambulance/fire fighting truck sounding alarm circuit (electronic product circuit) (integrated application)
6) D/A transducer change numerical code into unipolarity,bipolar simulate voltage
7)CNC frequency conversion triangular wave – square wave generator
8)Shifting register fancy lantern display circuit (electronic product circuit) (integrated application)
9)8 bits priority encoder responder circuit (electronic product circuit) (integrated application)
10)Touching type code electronic lock circuit (electronic product circuit) (integrated application)
11)Digital clock circuit (electronic product circuit) (integrated application)
12)Two bits decimal system counting coincident circuit (electronic product circuit) (integrated application)
13)Traffic light control circuit (electronic product circuit) (integrated application)
14)Up/down step wave generator (electronic product circuit) (integrated application)
15)Photovoltaic conversion plus/reduce count circuit (electronic product circuit) (integrated application)
5.4 Power electronics technology application,innovation training project
1)Thyristor control characters and its solid switch application(electronic product circuit) (integrated application)
2)Unijunction transistor trigger circuit(electronic product circuit) (integrated application)
3)Debugging and analysis of thyristor single phase half control bridge rectifier circuit (resistance load)
4) Research of thyristor single phase half control bridge type rectifier circuit (resistance inductive load) (counter emf load)
5) IGBT tube DC chopping circuit’s debug and analyze
6) Produce and debugging of bidirectional thyristor single phase AC dimming circuit (dimming table lamp)
7) Bipolar transistor (BJT) PWM control DC motor reversible speed control circuit
