Electronic Lab, Analog Electronics Lab Experiment Bench
System overview:

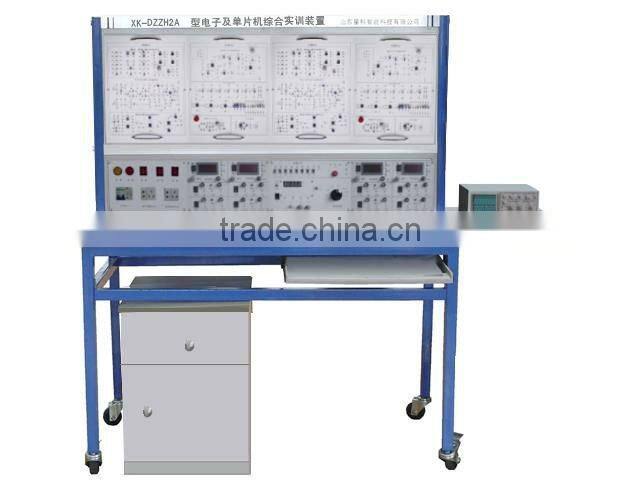

XK-MNDZ1 analog electronics training set can carry out experiment and practical teaching on analog electronics technique, electronic circuits, fundamentals of circuit and other related courses. The training set adopts modular structure, can be collocated flexibly according to different needs. The lower part of the test bed is equipped with four functional modules containing DC stabilized power supply, signal source and the required test instruments and meters. Experimental screen can be put into two sets of digital circuit test modules or two sets of analog circuit test modules or a set of analog circuit test module and a digital circuit test module, to meet two students do experiments at the same time.
Specifications:
Overall dimensions: 1700mm×700mm×1400mm;
Power Supply:
Ÿ Single-phase AC 220V ; ≤ 500W;
Ÿ With power source indicator and power supply indicator;
Ÿ With ground protection;
Ÿ With leakage protection;
Ÿ With over-current protection;
Experimental power source:
Ÿ DC ± 15V voltage source 2-way
Ÿ AC dual 15V voltage source 2-way
Ÿ DC± 5V voltage source 2-way
Ÿ AC Dual 8V voltage source 2-way
Ÿ Adjustable DC voltage source 1.25 ~ 30V 2-way
Ÿ Adjustable constant current source 4 ~ 20mA 2-way
Ÿ Spare socket AC 220V 2-way...
Digital readout function signal generator:
Be made up of MCU, integrated function signal generator and external circuit.
Ÿ Sine wave: frequency 1Hz ~ 2MHz, sub-file adjustable,
Ÿ Triangle wave: frequency 1Hz ~ 2MHz, sub-file adjustable,
Ÿ Square wave: frequency 1Hz ~ 2MHz, sub-file adjustable, duty cycle adjustable.
Ÿ TTL output: frequency 1Hz ~ 2MHz,
Ÿ Digital display frequency meter: range 2MHz.
Instrument:
Ÿ Voltmeter: range DC200V 0.5 level;
Ÿ Ampere meter: range DC200mA 0.5 level;
Ÿ Digital multimeter: three half digital readout.
Experiments and Training Projects.///
Basic experiment and training of analog electronics:
(1) Emitter follower
(2) FET amplifier circuit
(3) Monopole amplifying circuit
(4) Two-stage amplifying circuit
(5) Negative feedback amplifying circuit
(6) Ratio computing circuit
(7) Add operation circuit
(8) Integral operation circuit
(9) Differential operation circuit
(10) Filter circuit
(11) Voltage comparator circuit
(12) Complementary symmetry power amplifying circuit
(13) LM386 audio power amplifying circuit
(14) RC oscillating circuit
(15) LC oscillating circuit
(16) Square-wave generator circuit
(17) Triangle wave generator circuit
(18) Sawtooth generator circuit
(19) Rectifier circuit
(20) Filter circuit
(21) Stabilivolt voltage-stabilizing circuit
(22) Three-terminal fixed voltage-stabilizing circuit
(23) Three-terminal adjustable voltage-stabilizing circuit...
Electronic integrated project:
(1)Touchable time delay switch circuit;
(2) Manual dimmer switch circuit;
(3) Transistor radio assembling training.
