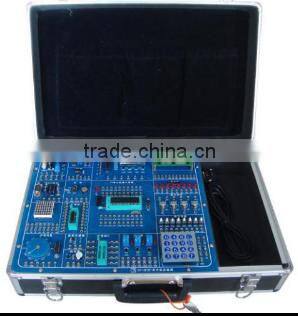

XK-MCB4 Electronic Trainer Kit Microcontroller Training AVR SCM Experiment Microprocessor Training Kit

XK-MCB4 Electronic Trainer Kit Microcontroller Training AVR SCM Experiment Microprocessor Training Kit thumbnail-1
XK-MCB4 Electronic Trainer Kit Microcontroller Training AVR SCM Experiment Microprocessor Training Kit photo-1
US$ 500 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
XingKe
Model Number:
XK-MCB4
Contact Supplier Request Quote Chat Now
Shandong Xingke Intelligent Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name XingKe
Model Number XK-MCB4

XK-MCB4 Electronic Trainer Kit Microcontroller Training AVR SCM Experiment Microprocessor Training Kit

                   XK-MCB4 Electronic Trainer Kit Microcontroller Training AVR SCM Experiment Microprocessor Training Kit

1. Product Introduction:

XK-MCB4 experiment box integrated power source unit,ATMEGA16A SCM min system and common function experiment unit, for example Nixie tube,LCD,Lattice screen,stepper motor,independent button,matrix keyboard,storage chip etc.

Modularized design and classical circuit are suitable for user learning AVR SCM.

2. Training box main parameters:

2.1 Overall Size: 500 (L) x 340 (W) x 165mm (H); 4KG

2.2 The power supply: single-phase power supply, AC 220 V, 50/60 Hz, power ≤10VA.

2.3 With grounding protection,over-current protection,power supply indication,main power indication

2.4 Working environment: temperature: -10℃~+40℃

3. Signal Source Technology Parameter:

3.1 DC 2.5V reference voltage source, capacity: 20mA

3.2 DC 5V voltage source, capacity: 1 A

3.3 Adjustable 0~+5V DC voltage source, capacity: 0.5 A

4. Accessories of experiment kit

1) Power line: 1pce

2) K2 Experiment wires: 40 pieces

3) 9 PIN serial port extension cord: 1pce

4) USBASP AVR/51 programmer: 1pce

5) English manual: 1pce

5.Experiment Item

(1) Flow water lights experiment

(2) Independent button input experiment

(3) 4×4 matrix keyboard input experiment

(4) Relay drive experiment

(5) Temperature acquisition experiment

(6) Buzzer drive experiment

(7) 4×4 dot screen display experiment

(8) Dynamic digital tube display experiment

(9) Stopwatch counts down experiment

(10)LCD1602 LCD display experiment

(11)AT24C256 Storage experiment

(12) 93C46 storage experiment

(13)RS232 communication experiment

(14)RTC display experiment

(15) Stepper motor drive experiment



XK-MCB4 Electronic Trainer Kit Microcontroller Training AVR SCM Experiment Microprocessor Training KitXK-MCB4 Electronic Trainer Kit Microcontroller Training AVR SCM Experiment Microprocessor Training Kit

XK-MCB4 Electronic Trainer Kit Microcontroller Training AVR SCM Experiment Microprocessor Training KitXK-MCB4 Electronic Trainer Kit Microcontroller Training AVR SCM Experiment Microprocessor Training Kit
