Industrial Automation Training Cabinet (virtual Load) With PLC Train Software

Specifications

XK-GCZD2 is durable, economical and practical for trainee to master knowledge of industrial automation and practical operation.

Industrial Automation Training Cabinet (virtual load) with PLC train software



1. Product structure:

Adopt nets board type training cabinet structure, easy to organize various training programs.

2. Main parameters:

Size: 700 mm x 1800 mm x 450 mm;

The power supply: the three-phase AC380V, power < 500 VA.

3. Main components:

training cabinet, nets orifice plate, power control panel, PLC, inveter, electrical components, three-phase asynchronous motor, computer (optional) etc.(PLC can choose Siemens, mitsubishi, schneider, omron, AB and other brands of products).

4. Main functions:

can finish PLC commony usedl programming instructions learning and training, frequency converter application training, typical motor control training, typical lighting distribution electricity training, typical machine circuit training, typical relay contact device control  PLC reconstruction project. Have a safety protection function.

5. Annex:

experimental jump line, commonly used tools, software disc, the product specification.

6. Training project:

6.1. PLC basic instruction training

6.2. inverter training

1) The operation panel to control the inverter to run experiments;

2) Inverter Jog run the experiment;

3) based on external potentiometer to control the inverter running the experiment;

4) based on an external voltage control of inverter operation experiment;

5) drive analog output detection experiments;

6) The inverter switch output detection experiments;

7) inverter speed control experiment;

8) PLC to control the inverter to run experiments;

6.3. a typical motor control training project;

1) PLC control motor start and stop the project;

2) PLC control motor jog, and self-locking project;

3) PLC control motor reversing project;

4) PLC control motor star delta start-up projects;

5) PLC to control the motor to reverse braking project;

6.4. a typical lighting distribution training;

6.5. a typical machine tool line training;

6.6. a typical relay contactor control PLC reconstruction project...

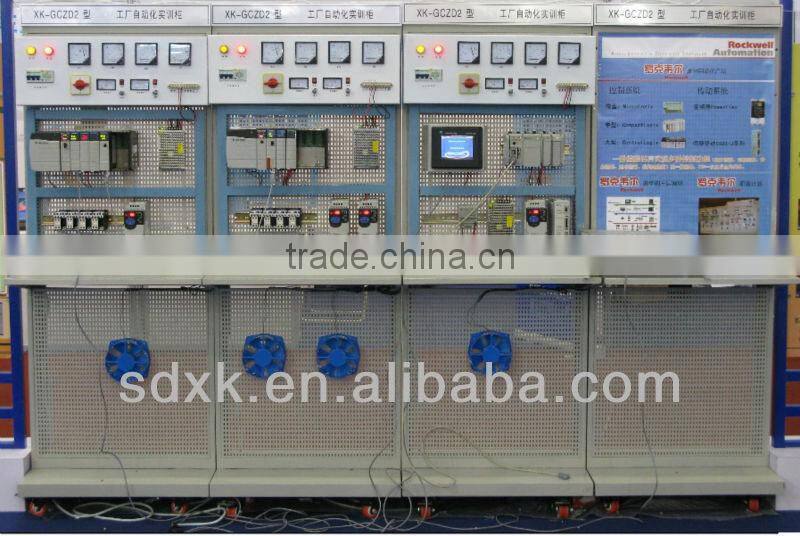

This model could make a set of industrial automation training complex,

as shown in picture:
