Educational kit,Education trainer,Power Electronics and Motor control Training Device
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
- Electronic training kit,Education trainer,Dc Servo Motor Closed-Loop Control Trainer
- Electrical lab equipment,Industrial Automation Training Cabinet (virtual load)
- Educational equipment,Primary and Intermediate Maintenance Electrician Training and Evaluation Device
- Educational kit,Electrical Wiring and Motor Control Technology Training Kit (double station)
- Electronic lab kits, Electrician and Electronics Training Device
- Educational trainer,Safety Electricity Training Device Electrical equipment
Product Details
Place of Origin: | Shandong, China | Brand Name: | XINGKE | Model Number: | XK-DLDJ1 |
Packaging Details
wooden package or according to your requirement
Product Description
Specifications
1.educational kit,education trainer2.motor control training
3.power electronics training

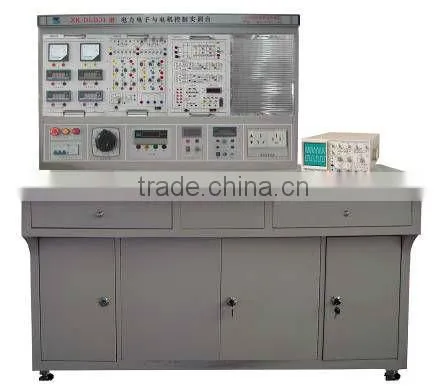

Educational equipment for schools,Power Electronics and Motor control Training Device
1. system overview
XK-DLDJ1 power electronics and motor control training device can be as many courses training equipment, such
as“power electronics technology”,“dc speed regulating ”“AC speed regulating”“motor driving”etc.
nical parameters
2.1dimension: 1700mm×700mm×1400mm
2.2 power supply
1)three-phase five-wire(or three-phase four-wire) 380V±5% 50Hz
2)power source indication, power supply indication
3)ground protection
4)leakage protection
5)over-current protection
6)security feature conform to relative government standard.
2.3 experiment power supply
1)AC power supply: three-phase0~450V adjustable AC power supply, single-phase0~250V adjustable AC power supply
2)armature power supply: 0~250V,3A continuously adjustable
3)field power supply: 220V,0.5A
4)adjustable DC voltage signal source1.25~30V two path
5)DC regulated power supply positive and negative 15V: one path in each
6)spare socket AC220 two path;
2.4 instrument
1) AC digital voltmeter liquid crystal display measuring range AC500V 0.5 grade
2) DC digital voltmeter liquid crystal display measuring range DC500V 0.5 grade
3) AC digital ampere meter digital display measuring range 2A
4) DC digital ampere meter digital display measuring range 2A
5) digital tachometer digital display measuring range 3000rpm
6)digital power meter digital display measuring range 1KW
3. experiment training project
3.1 thyristor trigger circuit training project
u Unijunction transistor trigger circuit experiment
u Sine wave synchronous phase-shift trigger circuit experiment
u Sawtooth wave synchronous phase-shift trigger circuit experiment
u Single-phase integrated sawtooth wave trigger circuit experiment
u Three-phase integrated sawtooth wave trigger circuit experiment
3.2 thyristor application circuit training project
u Single-phase half-wave controlled rectifying circuit experiment
u Single-phase bridge type controlled rectifying circuit experiment
u Single-phase bridge type full-controlled rectifying and active inverter circuit experiment
u Three-phase half-wave controlled rectifying circuit experiment
u Three-phase bridge type half-controlled rectifying circuit experiment
u Three-phase bridge type full-controlled rectifying and active inverter circuit experiment
u Three-phase half-wave active inverter circuit experiment
u Single-phase parallel connection inverter circuit experiment
u Single-phase AC voltage regulator circuit experiment
u Single-phase AC power regulator circuit experiment
3.3 motor driving training project
u Understanding DC motor
u DC generator
u DC shunt generator operating characteristic and mechanical characteristic testing
u DC separately excited motor operating characteristic and mechanical characteristic testing
u DC motor speed regulating
u DC motor soft start and dynamic braking
u DC motor positive and negative rotary control
u Three-phase squirrel asynchronous motor operating characteristic
u Three-phase asynchronous motor mechanical characteristic
u Three-phase asynchronous motor starting and speed regulating
u Knife switch positive rotary control circuit
u Contactor inching positive rotary control circuit
u Self-locking positive rotary control circuit
u Over-load protection positive rotary control circuit
u Two direction switch control positive and negative rotary control circuit
u Contactor interlocking positive and negative rotary control circuit
u Button interlocking positive and negative rotary control circuit
u Button and contactor composite interlocking control circuit
u Automatic round trip control circuit
u Contactor control series resistor reduced voltage starting circuit
u Time relay control series resistor reduced voltage control circuit
u Manual operation star delta reduced voltage starting
u Contactor control star delta reduced voltage starting
u Time relay control star delta reduced voltage starting
u Half-wave rectification dynamic braking control circuit
Full-wave rectification dynamic braking control circuit
matching motor

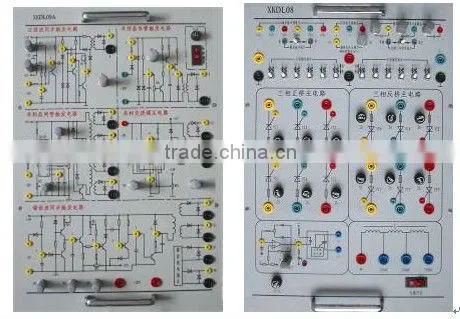

part functional module
