Industrial Automation Production Line Training Set, Automation training set, electrical trainer, production line training
1. System overview

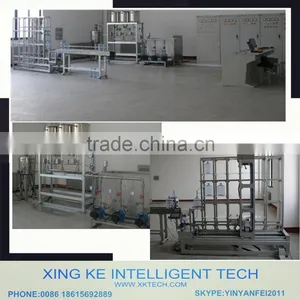

Training room arrangement diagram
XK-MX6A type industrial automation production line model, adopt industrial actual equipment, refer to arrangement of industrial operation room, electrical room and work shop to arrange, simulate the industrial environment, make the students be personally on the scene, implement training and probation combining together. Trough refine industrial center automatics, the model covers four typical parameters as pressure, temperature, flow and liquid level. have three-phase water pump, stirrer, heater, electrically operated valve, electric control valve, stepping motor, servo motor, three-phase asynchronous motor, DC motor and other actuating element, covers most common used advanced technology such as PLC, inverter, encoder, stepping motor, servo motor,automation instrumentation and etc.. Model of the control cabinet using industry standard to decorate, make students really understand the practical application of the factory. Model of the pipeline, water tank, etc. adopt stainless steel material, beautiful and practical. Model is to simulate a product line process that contains three kinds of raw material supply automatically, three kinds of material mixing, heating, stirring, quantitative filling, manipulator handling, belt transmission, automatic stereoscopic warehouse storage. Factory automation production line model is an essential training system to implement the factory cognition and to cultivate factory professional ability.
2. System features
1. Industrial automation production line model, adopt industrial actual equipment, refer to arrangement of industrial operation room, electrical room and work shop to arrange, simulate the industrial environment, make the students be personally on the scene, implement training and probation combining together.
2. Trough refine industrial center automatics, the model covers four typical parameters as pressure, temperature, flow and liquid level. have three-phase water pump, stirrer, heater, electrically operated valve, electric control valve, stepping motor, servo motor, three-phase asynchronous motor, DC motor and other actuating element, covers most common used advanced technology such as PLC, inverter, encoder, stepping motor, servo motor,automation instrumentation and etc.. It is an essential training system to implement the factory cognition and to cultivate factory professional ability.
3. Model of the control cabinet using industry standard to decorate, make students really understand the practical application of the factory.
4. Model of the pipeline, water tank, etc. Adopt stainless steel material, beautiful and practical.
5. Technical setting is integrity and fluency, It is to simulate a product line process that contains three kinds of raw material supply automatically, three kinds of material mixing, heating, stirring, quantitative filling, manipulator handling, belt transmission, automatic stereoscopic warehouse storage.
6. System adopt advanced multi-layer network structure
3. Technical index
Training room index
Training room area: ≥120mm2
Power supply requirement
Three-phase five-wire ac power supply capacity15KW
4. System composition
XK - MX6A factory automation production line model consists of three level pump frequency conversion constant pressure water supply subsystem, liquid level PID regulation subsystem, pressure PID control subsystem, flow PID regulation subsystem, position control subsystem, subsystems of three liquid mixing reaction, stirring subsystem, temperature PID regulation subsystem, quantitative filling subsystems, pneumatic carrying manipulator subsystem, subsystems of conveyor belt, three-dimensional storage subsystem, workshop power supply subsystem, PLC control subsystem, upper machine monitoring subsystem, and the automation instrument of subsystems
5.Training project
Project1: Three pump frequency conversion constant pressure water supply project
Project2:Liquid level PID regulation project
Project3:Pressure PID regulation project
Project4:Flow PID control project
Project5:Position control project
Project6:Project of three kinds of liquid mixed reaction
Project7:Automatic can filling project
Project8:Pneumatic carrying manipulator project
Project9:Stepping motor and servo motor control project
Project10:Encoder and motor control project
Project11: three-dimensional storage project
Project12:Automatic production line project.
