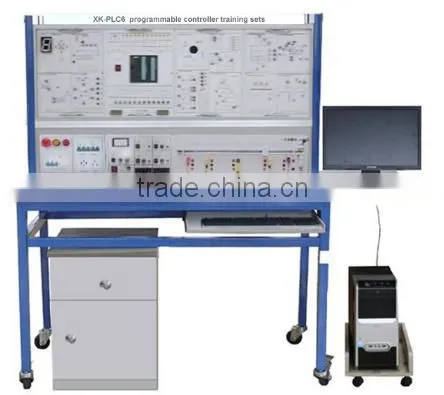

Vocational Didactic Training Set, Electrical Practical Training, XK-PLC6 PLC Programmable Controller Platform

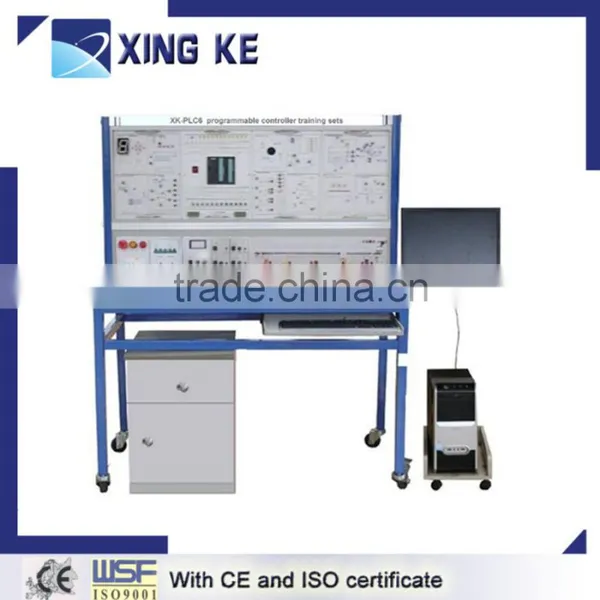

Picture for reference, computer is not standard configuration
1. Product Overview:
XK-PLC6 with modular desktop structure, hanging box replacement convenient, easy to organize various training project, expand and upgrade are convenient. XK-PLC6 will finish PLC programming instructions learning and practice, PLC typical project training and PLC network communication experiment and configuration training, etc.
The device is composed of mobile experiment platform, power supply module, signal source module ,PLC hanging box, PLC simulation load hanging box (2units), linear movement module, stainless steel net board(size 420mmX297mm),AC contactor, thermal relay, three-phase asynchronous motor, accessories and spare components, necessary tools and manuals.
Stainless steel net board Three-phase asynchronous motor
2. Training platform technical index
2.1 Size: 1700mm×700mm×1500mm
2.2 Power supply: three-phase five-wire AC380V voltage, frequency 50/60Hz, Power<1000VA
2.3 PLC: can select Siemens, AB, Schneider, Mitsubishi, Omron and other brands product
3. Signal source technical index
1) 1.25~30V adjustable DC voltage source 1 path, capacity 0.5A
2) 4~20mA adjustable DC current source 1 path
3) DC24V voltage source 1 path, capacity 1 A
4) DC12V voltage source 1 path, capacity 1A.
4. Training platform accessories
(1) K2 jumper line: 50pcs
(2) PLC programming cable:1pce
(3)Assorted software: PLC programming software, SCADA software (kingview DEMO version software)

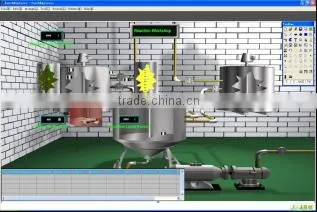

PLC programming software SCADA software
(4) Manual: 1pce
(5) 0.75 guide line: 30m
(6) K4 plug: 10pcs
5. Experiment list
5.1 Understanding PLC hardware and software
1) Understand PLC hardware
2) PLC wiring practice
3) PLC internal resource studying
4) The usage of PLC programming software
5) The downloading, uploading and online monitoring of programming application program.
5.2 PLC basic instruction practice training
1) Boolean instruction training
2) Timer instruction training
3) Counter instruction training
4) Transfer instructions training
5) Data shift instruction training
6) Arithmetic operation instruction training
7) Logic instruction training
8) Sequence control relay instruction training.5.3 PLC project training1) Beacon lights twinkle circle2) Eight-bit code display to show numbers3) Automatic mail sorting4) Automatic cistern water level control
5) Tool Choice control of machining center6) Automatic immixture of multi kinds of liquid control7) Automatic molding machine
8) Automatic assembly line control
9) Automatic rolling mill control
10) Traffic lights control
11) Manipulator motion control12) Automatic material transport and beladung f control
5.4 PLC control three-phase asynchronous motor running project training1) PLC control of motor running/stopping2) PLC control of motor jogging self locking3) PLC control of motor forward/reversal rotation4) PLC control
5) PLC, contactor, motor control wiring training.
5.5 PLC control car linear motion project training
1) PLC control for DC motor positive and negative rotary
2) Stroke switch application training
3) Photoelectric switch application training
4) Proximity switch application training
5) Hall switch application training
6) PLC control training for trolley simulating material transportation
7) PLC control training for trolley many place calling and response
5.6 SCADA software training (Kingview DEMO version software)
1) The usage of SCADA software
2) Basic animation connection application
3) Moving, zooming animation connection application
4) Vertical moving animation connection application
5) Value input and output animation connection application
6) Typical SCADA project training.
