1.Product overview:

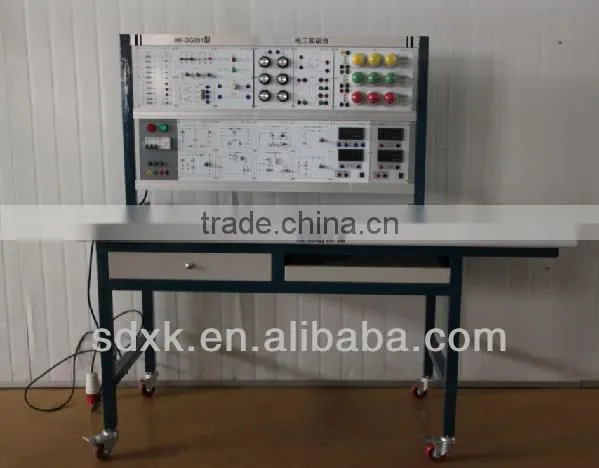

XK-DG201 type basic electric training device is a self-designed basic electric training platform required by home and abroad, the platform is applied to learning and practice in electrical related majors from all kinds of vocational colleges and universities.XK-DG201 have many properties such as easy to use, functional, modular structure, convenient to use, etc. This experiment platform is modified based on the former electrical training table to make it upgrade and functional complement convenient.
2.Technical parameters:
2.1 power:AC220V±10%,50HZ,≤100W;
2.2 dimension:1600mm×500mm×1600mm (L*W*H);
2.3 working environment: 0~+50°C;
2.4 storage temperature:-20°C~+80°C;
2.5 humidity:40~90%RH;
3. Configuration list:
3.1 XKDY-02 power hanging box
Contains: power part, function signal generator and logic level
3.2 XKYB-03 Instrument hanging box
Contains: single-phase power meter (0-500V0-2A),0-20VDC of DC voltmeter
3.3 XKDG-01 resistor and capacitor hanging box
Contains:2W of power resistor (10 kinds), 50V of pressurization capacitor(10 kinds)
3.4 XKDG-02 inductor, diode and transistor hanging box
Contains: inductor(1mH,4.7mH,10mH),diode(voltage regulator tube, single-direction diode, lighting diode), multiturn potentiometer(1KΩ,10KΩ,47KΩ),transistor measurement unit(NPN,PNP),conversion interface.
3.5 XKDG-03 alarming indication hanging box
Contains: red and blue incandescent lamp(12V,0.1A),starter and ballast(inductive type)
3.6 XKDG-04 three-phase electric power measurement unit
Contains: nine indicator(220V,25W),CBB capacitor(1μF,2.2μF,4.7μF)
3.7 XKDG-05 whole bridge rectifier and transformer unit
Contains: rectifier electric bridge, single-phase transformer(220V transformed to 110V and 55V,power of 110W)
3.8 XKDG-06 variable resistance box unit
Contains: resistance group of 6 module
3.9 XKDG-07 superposition theorem and norton’s theorem unit
Contains: kirchhoff’s law/superposition principle, Thevenin theorem/Norton’s theorem
3.10 XKDG-08 two port network, RLC series resonance circuit
Contains :two port network module and RLC series resonance circuit module
3.11 XKDG-09 RC series and parallel selective network and RC network transition and
calculus circuit
Contains: RC series and parallel selective network module and RC network transition and calculus circuit module
3.12 XKDG-10 equivalent current source and voltage source unit
Contains: equivalent current source and equivalent voltage source unit.
4.System function:
1)the simplest circuit measurement
2)Components identification and series and parallel resistor circuit
3)Potential and voltage measurement and potential map’s drawing
4)Mapping of volt-ampere characteristics
5) Verifications of Kirchhoff’s law
6)Verifications of Superposition’s law
7)Verifications of Thevenin theorem and Norton’s theorem
8)The equivalent transformation of voltage source and current source
9)Two port network measurement
10)Measurement of characteristic of R,L,C component impedance
11)Research of R,L,C series and parallel resonance circuit
12)Measurement of characteristics of RC frequency selective network
13)One-stage dynamic circuit
14)Two-stage dynamic circuit
15)Using the three-meter method to measure equivalent parameters of AC circuit
16) Research the phase of AC Sinusoidal steady-state circuits
17)Mutual-induction observation
18)Measurement of characteristics of single-phase iron cord transformer
19)Voltage and current measurement of three-phase AC circuit
20)Power measurement of three-phase circuit
21)Measurement of power factor and phase sequence
22)Checking the single-phase wat-hour meter...
