1. Product overview

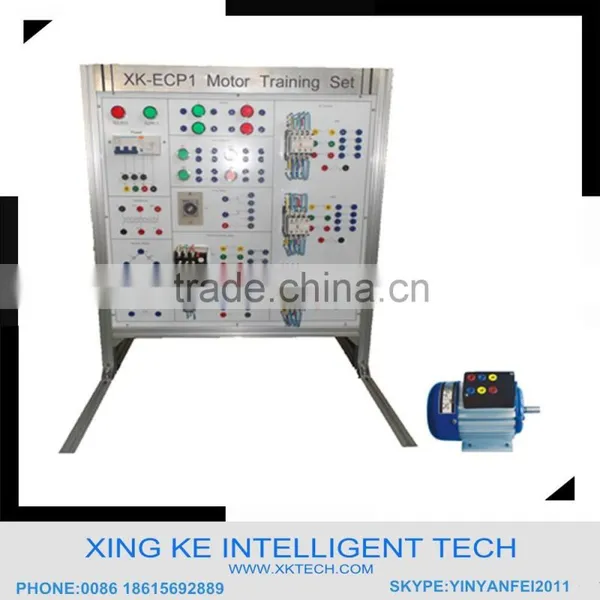

XKMCP1 motor training device can complete start control, braking control of three phase asynchronous motor. With motor control
need various control components and provide jack, student can according principle diagram to connect control wires by themselves.
Training device power source equips with leakage protection, short circuit protection, etc, to guarantee experiment safety.
2. Experiment bench technical parameter
2.1 Size: 660mm*600mm*620mm
2.2 Power supply: the three-phase AC380V, power < 500 VA
2.3 Three phase power supply main switch with leakage protection
2.4 With accident sudden stop button, power supply indicator, power indicator
3. Experiment bench accessories
3.1 Experiment guide wires 20pcs
3.2 Three phase asynchronous motor 1 set
4. Experiment list
Contactor cognitive experiments
Transformers cognitive experiments
When the control switch cognitive experiments
One-way running control circuit
Positive and negative control line operation
Self-locking control experiments
Interlock control experiments
Motor Y / DELTA buck start control
Automotive Dynamic Brake Control
