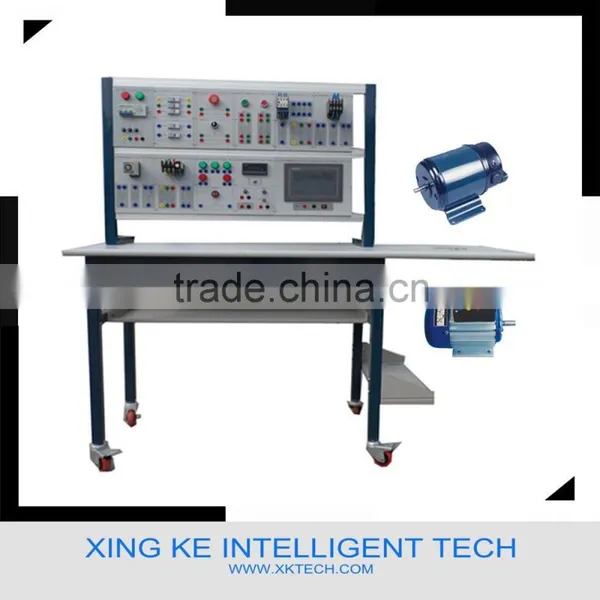

Electric Motor Train, AC-DC Motor and Control Training Bench, Electrical Lab
1.Product overview:
XK-DT201 type motor and motor control training device is a self-designed motor drive training platform according to the international and domestic demands. This platform is applied to learning and practice of motor drive or other related majors in all kinds of vocational colleges.
XK-DT201 type training device have many properties, such as:
-flexible combination, convenient to use, strong function, modular structure, easy to use, etc.
-Through ways of free combination, this experimental platform can finish most controlled experiments of three-phase AC motor and DC motor, besides, it is integrated that configuration intelligent evaluation system and thus make this product possess very Significant advancement.
2.Technical parameters:
2.1. Power:AC380V±10%,50HZ,≤500W
2.2. Dimension:1600mm×500mm×1600mm (L*W*H)
2.3. Working temperature:0~+50°C
2.4. Storage temperature:-20°C~+80°C
2.5. Humidity: 40~90%RH
3. Configuration list

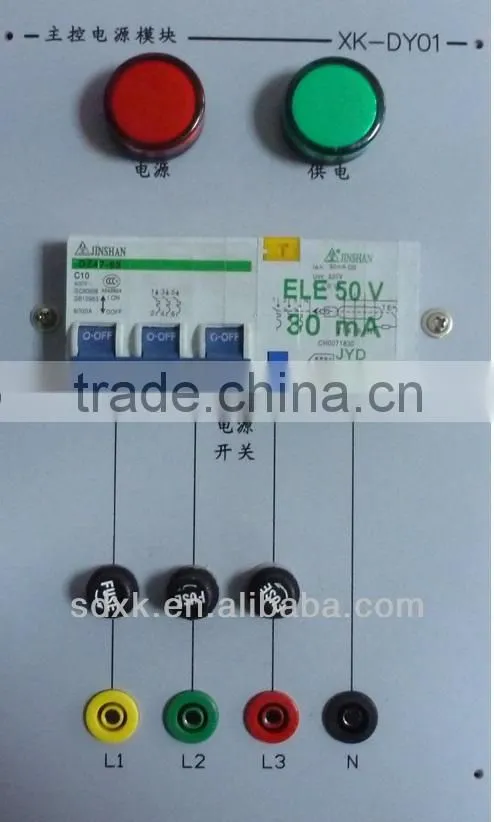

3.1.XKDY-01 Power module:
Contains: two indicators(red ,green)three-phase four-wire leakage protection switch, fuse

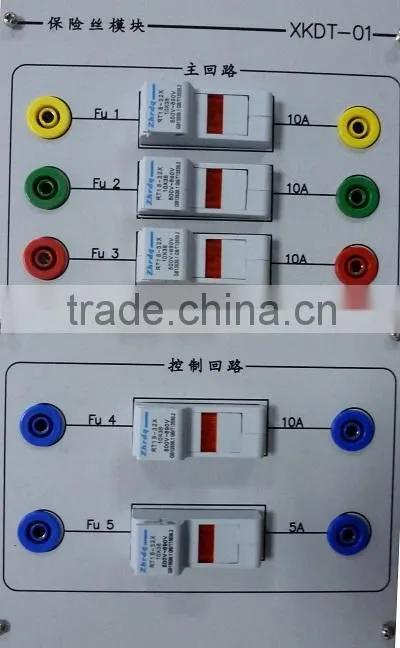

3.2 XKDT-01 Fuse module
.
Contains: five fuses(four of 10A,one of 1A)

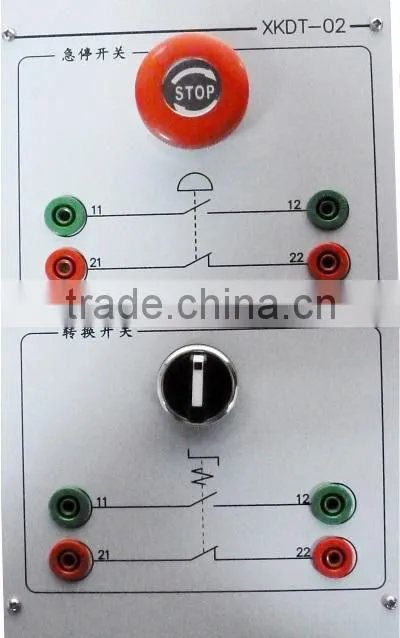

3.2. XKDT-02 Switch module
.
Contains: emergency stop switch, change-over switch

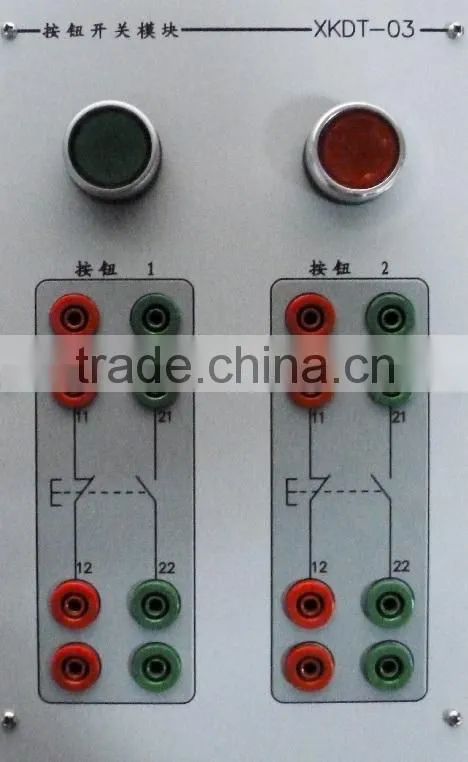

3.4. XKDT-03 Button module
Contains: two self-recovery buttons(green, red)

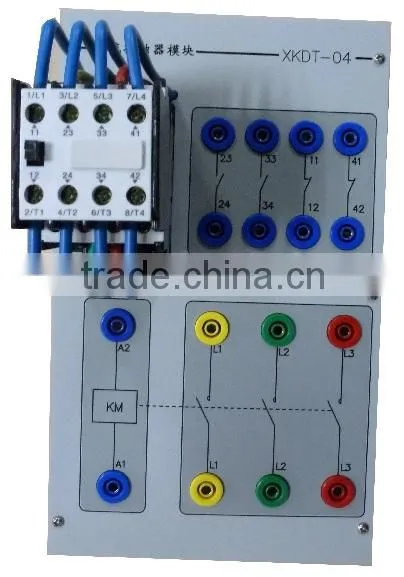

3.5.XKDT-04 AC contactor module
Contains: AC contactor, evaluation panel

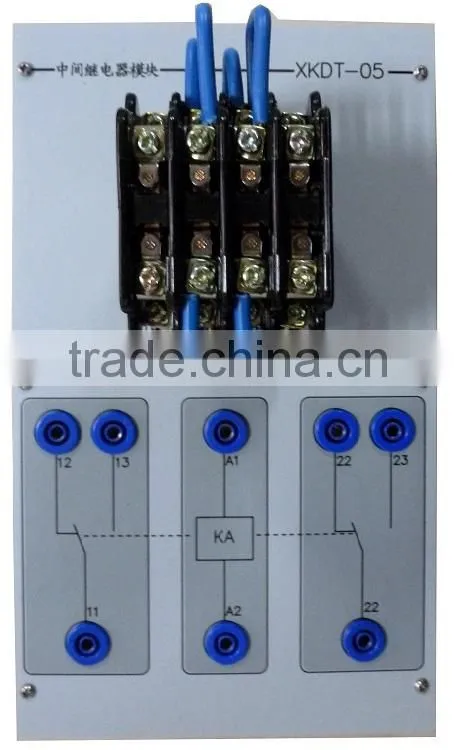

3.6. XKDT-05 Intermediate relay module
Contains: intermediate relay, evaluation panel
3.7.XKDT-06 Timing relay module

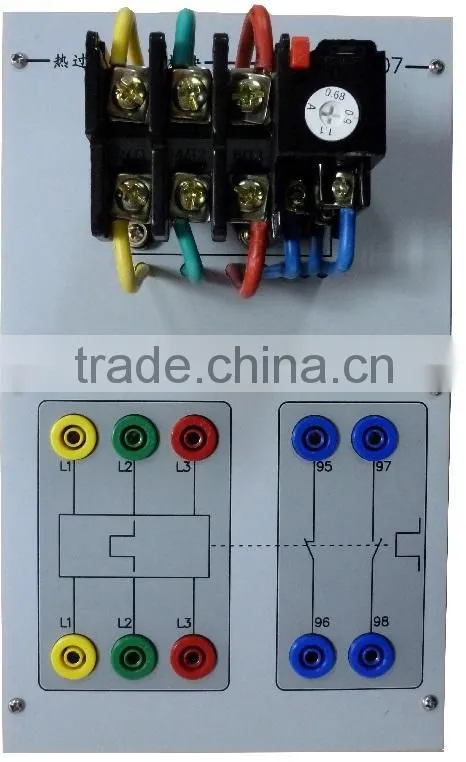

3.8.XKDT-07 Thermal overload relay module
Contains: thermal overload relay, evaluation panel
3.9. XKDT-08 Acousto-optic detection module
Contains: five indicators(three of green, two of red),buzzer
3.10. XKDT-09 DC motor speed regulation module
Contains: voltmeter, DC motor drive power, fuse(2 pcs), multiturn potentiometer(4.7KΩ)

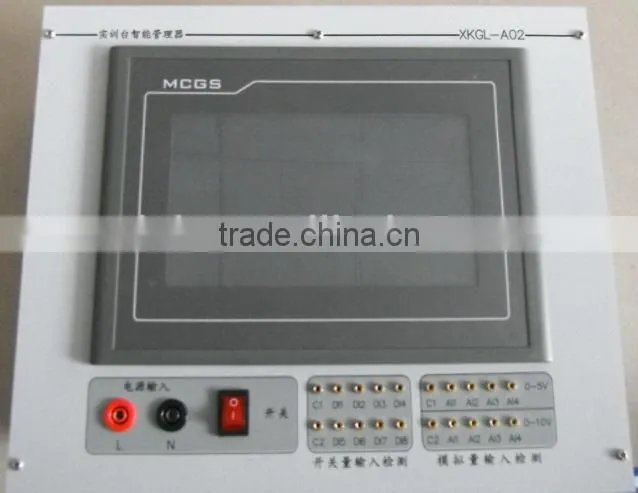

4. Intelligent supervisor
Intelligent supervisor of Xingke training table
Main interface of intelligent supervisor
