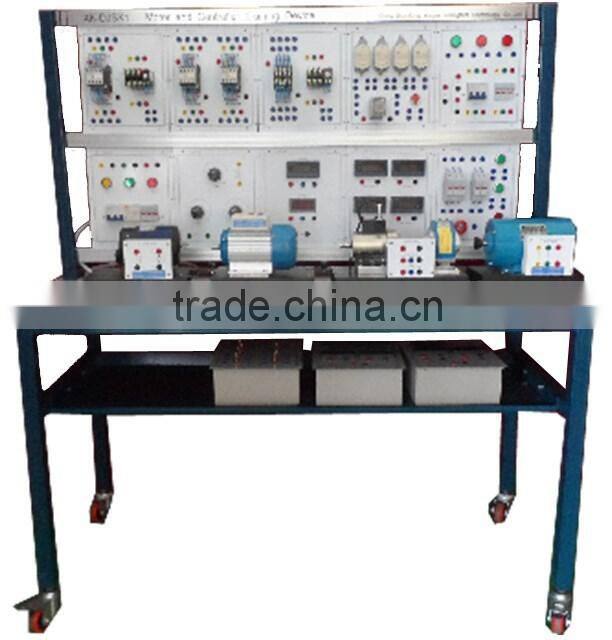

Motor and Controller Training Device/XK-DJSX1/Electrical Training Kit for Teaching
(Motor Control Training/Electrical Training Kit/Teaching Device)
XK-DJSX1 motor and controller training device contains DC separately excited motor, DC shunt-excited motor, DC compound excitation motor, three-phase AC synchronous motor, capacitance single phase AC motor, three-phase asynchronous motor, can accomplish motor character and control training.
This device is modular structure, can carry out many hanging box experiments combination, with castors, can move freely, table surface is fireproofing, waterproofing, wear-resisting high density board.
2.Technical performance
2.1 Input power supply: three-phase four-wire(380V±10% 50HZ)
2.2 Size: 1490mm×700mm×1550mm
2.3 Working environment: temperature -100C-+400C, relative humidity<85%(250C), altitude<4000m
2.4 Device capacity: <1000W
3.Training device accessories
3.1 DC separately excited motor 1set
3.2 DC shunt excited motor 1set
3.3 DC compound excited motor 1set
3.4 Single phase capacitance motor 1set
3.5 Three-phase synchronous generator 1set
3.6 Three-phase asynchronous motor 1set
3.7 Three-phase double speed motor 1set
3.8 Character measuring module 1set
3.9 Coupler 2sets
3.10 Inside hexagon spanner 1set
3.11 Experiment guide line 100pcs
4.1 DC generator experiment
4.2 DC motor experiment
4.3 Single phase transformer experiment
4.4 Three phase transformer connection experiment
4.5 Three-phase squirrel type asynchronous motor working characteristics
4.6 Single phase capacitance start asynchronous motor
4.7 Three-phase synchronous generator operation characteristics
4.8 Three-phase asynchronous motor inching and selflocking control circuit
4.9 Three-phase asynchronous motor forward and reverse rotary control circuit
4.10 Three-phase asynchronous motor voltage reduced start
