Motor Training Device, Motor Teaching Model, Motor DC Motor-AC Generator Training Device

Motor Training Device, Motor Teaching Model, Motor DC Motor-AC Generator Training Device photo-1
US$ 10 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
XingKe
Model Number:
XK-DJ201
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name XingKe
Model Number XK-DJ201



Motor training device, Motor teaching model, Motor DC Motor-AC Generator training device

                  Motor training device, Motor teaching model, Motor DC Motor-AC Generator training device



1. Product overview

XK-MG02 type DC motor AC generator practical training bench is a type of electricity generating system practical training platform, widely use in colleges and vocational school for DC motor speed regulated and AC generator gird connection experiment, equips with three phase resistance load module. With signal source, no need external access motor control power source, beautiful appearance, easy to installation and use.

Practical training device with leakage protection, short circuit and other protection, to guarantee experiment electricity safety.

2. Experimental bench technical parameter

2.1 Size: 632mm*400mm*740mm (L*W*H)

2.2 Power supply: three phase four wires AC380V±10%,50HZ,≤300W

2.3 Three phase power supply main switch with leakage protection, IΔn30mA,time 0.1S

2.4 With accident sudden stop button, power supply indicator.



3. Signal source technical indicator

3.1 DC0~220V adjustable DC power source

3.2 AC three phase 380V

3.3 DC0~12V adjustable DC power supply

4. Experimental bench accessories

4.1 Experimental wires: 20 PCS

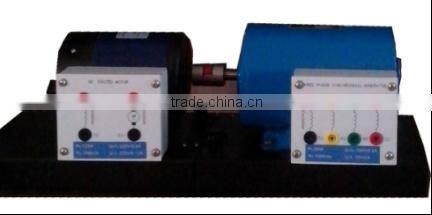

4.2 Generator group 1 set

Motor training device, Motor teaching model, Motor DC Motor-AC Generator training device

4.3 Load resistance box 1 pcs

Motor training device, Motor teaching model, Motor DC Motor-AC Generator training device

5. Experiment list

5.1 Separated DC motor speed adjustable circuit

5.2 Three phase synchronous motor running characteristics

5.3 Three phase synchronous motor with load experiment

5.4 Three phase generator gird running

Motor training device, Motor teaching model, Motor DC Motor-AC Generator training deviceMotor training device, Motor teaching model, Motor DC Motor-AC Generator training device

Motor training device, Motor teaching model, Motor DC Motor-AC Generator training deviceMotor training device, Motor teaching model, Motor DC Motor-AC Generator training device
