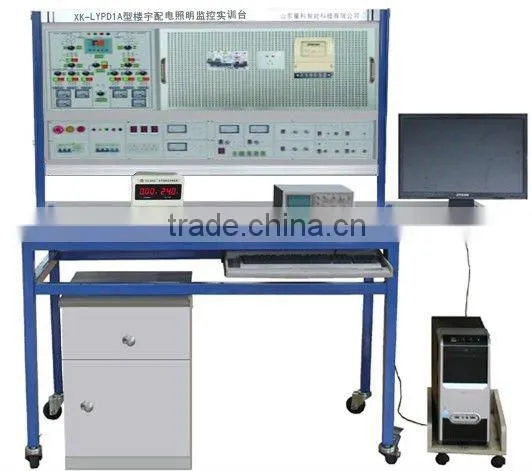

Educational training equipment,Building Electricity Distribution Training Device
1.product structure:
desktop modular structure
2.main parameters:
Ø size 1200 mm x 700 mm x 1450 mm;
Ø The power supply: the three-phase AC380V,frequency 50 HZ, <500w, three-phase five line system, leakage and over current protection
3.main components:
the power supply and the signal source panel, acquisition and sensor panel (Hall current sensor, ac voltage
isolation sensors, pointer type dc voltmeter, pointer type dc ampere meter, fieldbus core card, interface
card, etc.), for distribution electricity training model, lighting distribution electricity training templates,
voltage measurement instrument, the network power meters, red green lights, etc. Except computer.
4.main functions:
used for distribution electricity circuit training, lighting line installation debugging training, intelligent I/O
modules installation debugging, each sensor installation debugging, understanding and application of field
bus topological structure, understanding and application of configuration software , maintenance and
training
5.annex:
experimental jump line, commonly used tools, software disc, the product specification.
6.Training Projects
1) Electrician tools in common use cognition and application.
2) In common use wire cognition and application.
3) Common illumination device and steering circuit installation and debugging.
4) Illuminating line calculation, lectotype and laying.
5) Intelligent I/O module installation and debugging.
6) Network interface card (NIC) cognition, installation and setting.
7) Network-based electric power instruments application.
8) Integrated Hall voltage sensor cognition and application.
9) Integrated Hall current sensor cognition and application.
10) Single-phase, three-phase electronic-type electric energy meter installation and application.
11) Relevant industrial control software cognition and application.
12) Profibus topology structure cognition and application
13) Configuration software cognition and application
14) Communication between field bus devices and configuration software.
15) Building distribution, lighting, remote-control system
16) Power supply distribution system transfer-switching and operation-order.
17) Power supply distribution system main connection and mode-of-operation intro.
