XK-LYJK1A Intelligent Building Video Monitoring Training Device
PRODUCT INTRODUCTION
XK-LYJK1A intelligent building video monitoring training platform mainly includes all kinds of cameras, pan/tilt/zoom (PTZ) controllers, decoder, part of the security equipment training
TECHNICAL PARAMETER
(1) Training equipment power supply: single-phase AC 220±10% V, three-wire access, capacity<1KW, table-board bipolar open with over-current protection, leakage protection, specification IΔn≤30mA,≤0.1S,woodiness table-board equipped with insulated pad and shell ground protection, have power source, power supply indicator, security features meet relevant national standards
(2) Dimension: long*wide*high=1500mm*720mm*1650mm
(3).All kinds of camera parameters”
1) Pistol camera
Picture sensor: 1/3"Type IT CCD
Signal system: PAL model
Horizontal resolution: 480TV line
Signal to noise ratio: 52db
Minimum illumination: 0.5LUX
Shutter speed: 1/50-1/100,00(second)
White balance: auto tracing white balance
Focusing system: electric focused mode
Video output: 1.0Vp-p75Ω(BNC)
Power supply configuration: DC12V
Power consumption: 350mA
2) Dome camera
IT Super HAD CCD:320,000 pixel
Maximum horizontal resolution: 450TVL
Maximum illumination: 0.5Lux
Adapt to backlight compensation of a variety of light conditions
With high quality signal to noise ratio greater than 48db
White balance control method: automatic tracing white balance
Original lens: f=6mm
3) Infrared ray machine
CCD type: 1/3"SONYCCD
Horizontal resolution: 480TV Line
Minimum illumination: OLUX
Aperture, focal length mode: hand-operated
Backlight compensation: automatic
Zoom times: photology 16×
Working temperature:-10℃~50℃,maximum relative temperature 90%
Working voltage: DC 12V±10%
Weight: 1650g
Infrared ray operating range: 80m
4) Web camera
Using embedded design and convenient to networking
Support PAL/NTSC composite video
Support dynamic IP address and support local area network, Internet (ADSL, CABLE MODEM)
Video code rate 16Kbps-4Mbps continuously adjustable, frame rate1-30 (1-25) continuously adjustable
Picture delay is less than 200 milliseconds (local area network (LAN))
Video shield, motion detection, probe etc. alarming functions (can set area and sensitivity)
Support multiple user access at the same time, Multilevel user password permissions management
Support PTZ control
The front support Jpeg snapshot
Support miniUSB interface, and can be connected to the mobile hard disk device
5) Video capture card
AVI soft compression format
Can provide real-time video acquisition function
Can choose a different speed playback, Fast forward or retreat quickly
Video takes up hard disk space, 120 M - 250 - M/road/hour
Display resolution 768 x576 pixels
6) Other major equipment in system
Pan/tilt/zoom, pan/tilt/zoom controller, pan/tilt/zoom decoder, infrared correlation detector, infrared detector, twisted pair transceiver.
Twisted pair transceiver Infrared detector
TRAINING ITEMS
Understand intelligent building video monitoring training platform
Learn making video line of BNC terminal
Use of video collection and software
Application of pistol camera
Application of hemisphere camera
Connecting, configuration and application of web camera
Connecting and use of infrared integrated machine and pan/tilt/zoom decoder
Configuration and connecting of pan/tilt/zoom decoder
Connecting and use of universal pan/tilt/zoom and pan/tilt/zoom controller

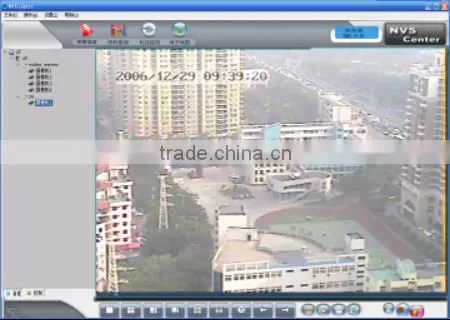

Computer application in video monitoring system
Computer to realize pan/tilt/zoom control
Computer to realize infrared integrated machine control
Computer to log in the web camera monitoring picture
Application of twisted-pair transceiver
Application of perimeter protection equipment-active infrared detector
