XK-LYCB1A INTELLIGENT BUILDING PRACTICAL TRAINING PLATFORM FOR REMOTE METER READING
PRODUCT INTRODUCTION
The system consists of multiple remote meter reading training platforms of which contain a main control platform, each platform can be used as a independent collection and management system. Intelligent building meter reading management platform software is installed in the upper pc, collector and the concentrator is to use bus technology (RS-485 or CAN, Loworks or Profibus) for networking. Can realize signal acquisition and data management of remote meter, remote water meter and remote gas meter.
TECHNICAL PARAMETER
1) Power supply: AC220V power supply
2) Size: long*wide*height=1500mm×720mm×1450mm
3) Matching upper computer and installing meter reading management platform software as training platform’s management core
4) XK-DMP energy concentrator: accept pc computer releasing collection instruction and carry out multimachine communication with energy collector in network, collect the data and upload to the pc computer
5)XK-DCP 8 channel energy collector: as multichannel measuring meters, collect each input channel pulse signal ,and then to accumulate, save, respond to energy concentrator’s instructions at any time, upload the data to energy concentrator .The system consists of 2 energy collector and with concentrator together constitute energy data collection network

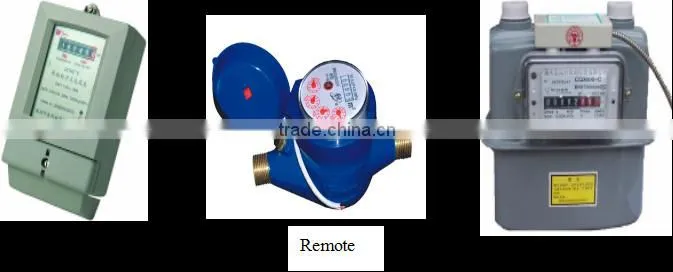

6) Equipped with remote water meter, output water consumption in pulse mode, can directly connect to collector input port
7) Equipped with remote meter, output electricity consumption in pulse mode, can directly connect to collector input port
8) Equipped with remote gas meter, output gas consumption in pulse mode, can directly connect to collector input port
SYSTEM STRUCTURE DIAGRAM
TRAINING ITEMS
RS-485 network building
Understanding and application of RS-485/232
Remote water meter connection and understanding experiment
Remote electric meter connection and understanding experiment
Remote gas meter connection and understanding experiment
Principle and application of collector
Principle and application of concentrator
Network communication experiment
Understanding of the upper computer management software
Application of database software
Comprehensive experiment of remote meter reading
