XK-DYQ01 mainly used for TIG welding, plasma cutting three aspects of training and practice.ISO CE certifications OEM

XK-DYQ01 Welding / TIG /Plasma Arc Cutting Triple Training Bench

1.Project Overview

XK-DYQ01 type TIG welding, plasma cutting training units, is a welder craft skills training units, With welding using three, to be completed by welding, TIG welding, plasma cutting welding and cutting in three different ways. Simulate the actual factories and enterprises in the technical requirements of the welder, welder with common tools that allow students to operate their own hands, training workpiece welding, assembly, installation, maintenance, commissioning and other technical, training equipment, small footprint, easy to operate, which is the major colleges, vocational school, technical school indispensable ideal teaching training equipment.

2.List of Components

NO. Name specification quantity
1 Training platform

1) All metal body, strong wear resistance

2) size:1500×700×1000mm

 1/platform
2

Portable electric welding

 / cutting / welding three

 welding machine(charged

 welding and argon arc

welding torch, regulator,

cylinder, argon tungsten

needle, plasma cutting

nozzle and other

accessories)

1) Type No. CT-418

2) rated input capacity

(welding / TIG / cutting )5.7/3.8/4.8KVA

3) rated output voltage (electric): 26.8V

4) rated output voltage (TIG): 17.2V

5) rated output voltage (cutting): 96V

6) no-load voltage (electric): 63V

7) no-load voltage (TIG): 63V

8) no-load voltage (cutting): 250V

9) The current adjustment range

(welding): 10-170A

10) The current adjustment range (TIG): 10-180A

11) The current adjustment range (cutting): 20-40A

 1 /platform
3 argon gas bomb

1) Name: seamless steel gas cylinders

2) use environment temperature:

-20 to 60 degrees

3) nominal working pressure: 15MPa

4) test pressure: 22.5MPa

5) gas tight test pressure: 15MPa

6) filling medium: permanent gases,

high pressure liquefied gases

7) nominal volume: 8L

8) body material: 37Mn

9) design service life: 30 years

 1/platform
4 air compressor

1) 3P pump

2) exhaust pressure: 0.8Mpa

3) volume: 0.1M3/min

4) power: 1.5KW

5) power: 220V/50HZ

6) current: 7A

7) weight: about 17KG

8) size: 540*265*590MM

 1/platform
5 welding electrode

1) electrode materials: titanium calcium

 type coating, low carbon steel

2) electrode diameter: 2.5mm

3) welding current: 60-100A

4) quantity:60

 60/platform
6 Welding electrode dryer

1) model: DHT-10-220V

2) type: vertical

3) capacity: 10.0Kg

4) electrode length: 450mm

5) working voltage: (AC 200V)

6) maximum temperature: 30-400 °C

7) power: 1000W

 1/platform
7 Welding mask

1) Portable electric welding hood

2) Material: PP plastic

3) Including the lens piece

 2/platform

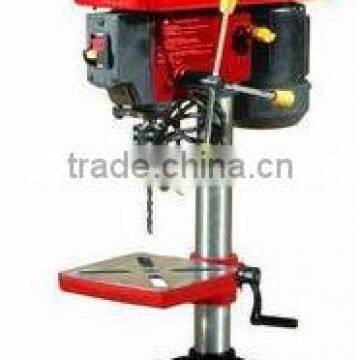

8

Laser bench drill  drilling

machine

1) voltage::220V/50HZ

2) spindle speed range:500-2500RPM

3) power: 250W

 1/platform

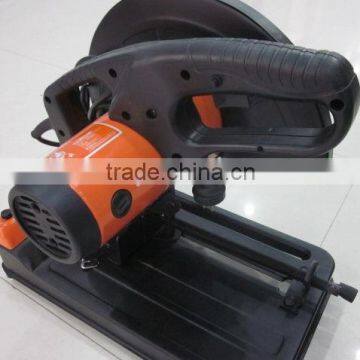

9 cutting machine

1) voltage: 220V

2) frequency: 50Hz

3) power: 1800W

4) rotate speed:3800r/min

 1/ platform

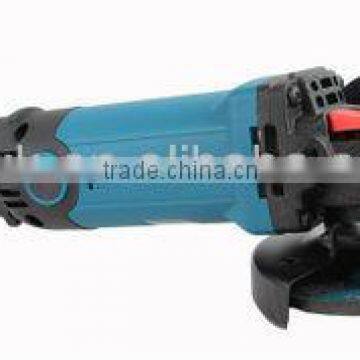

10 polishing machine

1)  input voltage: 220V/50HZ

2)  input power: 820W

3)  the no-load speed: 9000r/min

 1 / platform
11  vernier caliper

1)  Lenth:150mm

2) material: stainless steel net

3)  weight: About 150g

 1/ platform
12  ABS steel tap

1) specifications: 3M

2) size: 7.5mm*25mm

3)  weight: 288g

4) material: ABS plastic steel tape

 2/ platform
13  angle square

1) ruler seat selection of high quality

aluminum alloy forged, durable,

comfortable fee

l2) specifications: 30mm

 2/ platform
14 hammer

1) specifications: 250g

2) hammer weight: 250g

3) gross weight: 350g

 2/ platform
15  against ultra-violet protective goggles

1) type: welding protective goggles

 (IR5.0, anti scratch coatings)

2) Suitable for cutting, brazing, soldering,

 welding operation.

 2 / platform
16  Special clothes

1) material: Canvas

2) size: 170~190

 2 / platform
17  Special gloves

1) packing: 2 pairs / box

2) weight: 200G/pairs

 2 / platform
18  Special shoes

1) upper material: suede leather

2) thick skinned: 14-16

3) size: 38-46 (option two)

 2/ platform
19  drill

1) material: high hardness of

HSS steel

2) number: 1mm~13mm 25.

3) specifications:1mm,1.5mm,2mm,

2.5mm,3mm,3.5mm,4mm,4.5mm,5mm,

5.5mm,6mm,6.5mm,7mm,7.5mm,8mm,

8.5mm,9mm,9.5mm,10mm,10.5mm,

11mm,11.5mm,12mm,12.5mm,13mm

 1 / platform
20  polished section

1) specifications: 100*3*16mm

2) model: WA80

3) main materials: Selected high

 level sands, high strength reinforced

mesh, high quality resin binder

4) suitable operation: metal, stainless

steel cutting

 2 / platform
21  cutting disk

1) specifications: 350*3*25.4mm

2) use speed: 3900r/min

 2 /platform
22  Pistol Drill

1) rated voltage: 220V

2) frequency: 50HZ

3) power: 500W

4) clamp range: 0.6mm~10mm

 1 / platform
23 riveter

1) product size: 300mm*125mm

2) materials: handle: Rubber

3) Internal claw: alloy steel,

the hardness of HRC65

4) The gun body: 2.5mm plate

 1 / platform
24  rivet

1) Name: core pulling rivets

2) specifications: M4*8MM

3) material: Aluminum Tierra core

4) types: open type

5) number: 500/ box

 1 / platform
25 wire-cutter

1) specification: 8 inch 200mm

2) material: chromium vanadium alloy steel

3) net weight: 360g

 2 / platform
26 nipper pliers

1) specification: 6 inch

2) material: tool steel

3) length: 17cm

 2 / platform
27 screwdriver

1) specifications: 3*200mm

and 5*200mm (each a word,

 cross a total of four)

2) screwdriver head with magnetic, easy to use

 2 / platform
28 tin snips

1) specification: 8 inch 210mm

2) material: chromium vanadium alloy steel

 2/ platform
29  hacksaw frame

1) specifications: 300mm

2) net weight: 500g

 2/ platform
30  saw blade

1) material: high carbon steel

2) specifications: fine tooth (1.0mm)

3) length: 300mm

 4 / platform
