Specifications
1.automotive training equipment2.vehicle electrical Training set
3.car maintenance model

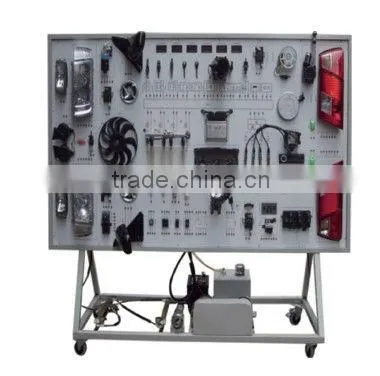

Automotive training equipment,Buick Excelle entire vehicle electrical Training sets
Product overview
This product is based on KaiYue buick car the whole car electrical equipment physical , show lighting system, instrument system, ignition system, starting system, charging system, electronic control system of engine, comfortable system, speaker system, electric Windows system, electric door lock system, wiper system, audio and so on various system composition structure and working process. Apply to higher vocational technology in general education of college and, training organization of the whole vehicle electric car the system theory and practice teaching need maintenance. The training sets the function is all ready, convenient operation, safe and reliable
Main parameters:
Outer size:2040mm×1240mm×700mm(L×W×H);
Dynamic power:380V AC voltage;
Work voltage:12VDC voltage;
Work temperature:-50°C~50°C;
Storage battery:60AH/12V
Weight:80Kg
functions
1.Can run the entire vehicle electric system and show all the car electrical system's composition structure and principle
2.Run all electric equipment switch and button,can true demo automobile electrical work process of each system
3.Panel painted color painting.circuit diagram,the student can be intuitive control circuit diagram,know and analyze vehicle electric work principle of each system
4.Detection terminal are installed on panel,which can directly detection circuit element of each system of the electrical signals on the panel electric vehicle,such as resistance,electrical signals installation has a diagnosis,can connect special or general type car decoder,the engine control unitof ECU coding,read the fault code,remove fault code,reading of the data flow,executive element test,set parameters,such as matching waveform analysis and guard against theft from diagnosis function.Pressure,current and frequency,waveform signal etc.
5.Chassis part adopts steel welding structure, and the surface of the lacquer that bake process,with the foot wheel lock
6.Equipped with instructions and related material
7.For security matching,remote control and matching operation
8.Fault simulation system can simulate the real operation condition,set a variety of common fault
Failure set way using manual,can alone setting 24 fault points,including the typical vehicle electrical system of typical fault.
