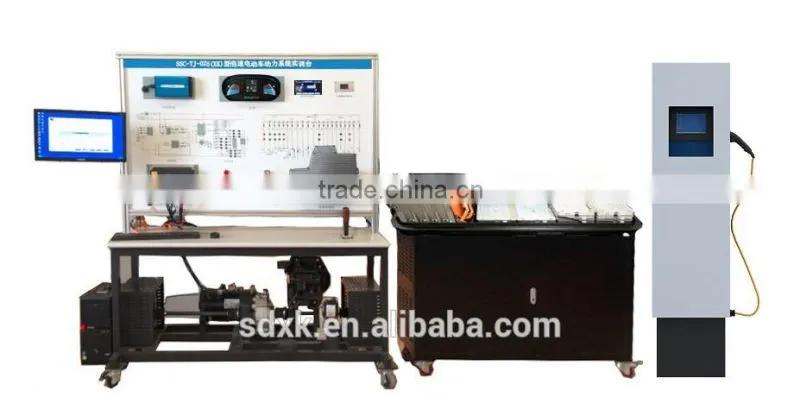

SSC-TJ-026(XK) Training Bench of High Speed Electric Automobile Power System, equipped with faults setting and removing software system, is a software -hardware combination and virtual-actual combination integrated electric automobile teaching equipment, including power motor, motor control system, accelerator pedal, charging system, braking system, ignition switch, gear device, charging pile, power battery, computer, power battery control cabinet. The equipment, based on JAC IEV5 electric power assembly, could demonstrate the structure and working principle of automobile power system. All systems of the equipment can be put real operation, such as starting, acceleration, deceleration, faults detection and diagnosis, trouble simulation and shooting, etc. It could clearly demonstrate the appearance of the power system components, installation position and the connection of all component modules, which provides students a more intuitive understanding of the electric automobile power system.
1. Power supplies: AC 22V;
2. Temperature: -20℃～50℃
3. PC: Founder Wenxiang D430-B10
1. The main function of charging system
2. The composition of charging system
3. The introduction of general charging plug assembly
4. The introduction of special plug for charging pile
5. The maintenance of simple charging pile
6. The attention of high tension electric maintenance
7. The function of tension system
8. The composition of high tension system
9. The repair of high tension system
10. The position of high tension system
11. The principle of high tension system
12. The maintenance of high tension system
13. The functions and composition of battery system
14. The structure of battery system
15. The main functions and principles of battery management system
16. The principle of battery management system
17. The attention of battery installation
18. Battery maintenance
19. The maintenance of battery management system
20. The attention of electric automobile charging
21. Motor control principle
22. The structure and composition of motor
23. Motor maintenance
24. The principle of CAN communication system
25. The detection of CAN communication system
26. The introduction of DC/DC functions
27. The basic function of DC/DC
28. The arrangement diagram of DC/DC
29. The connection of DC/DC power battery
30. The teaching of new energy automobile power system’s principle
31. The teaching demonstration new energy automobile power system’s transmission route
32. The teaching demonstration of new energy automobile power system’s acceleration
33. The teaching demonstration of new energy automobile power system’s rapid acceleration
34. The teaching demonstration of new energy automobile power system’s general acceleration
35. The teaching demonstration of new energy automobile power system’s deceleration
36. The teaching demonstration of new energy automobile power system’s braking
