Help CenterSSS-TJ-021(XK) Experimental Bench of Electric Motor's Performance
Related Products
-
SSC-TJ-023 Training Bench of Electric Motor's Dismounting and MaintenanceNegotiableMOQ: 1 -
SSC-TJ-022(XK) Training Bench of Pure Electric Automotive Power Steering SystemNegotiableMOQ: 1
-
SSC-ZC-003(XK) Low Speed Electric Assembling-Disassembling AutomobileNegotiableMOQ: 1
-
SSC-TJ-007(XK) Training Bench of Pure Electric Automotive Air-Conditioning SystemNegotiableMOQ: 1
-
SSC-TJ-001 (XK) Experimental Bench of BMS Battery Management System (low Voltage)NegotiableMOQ: 1

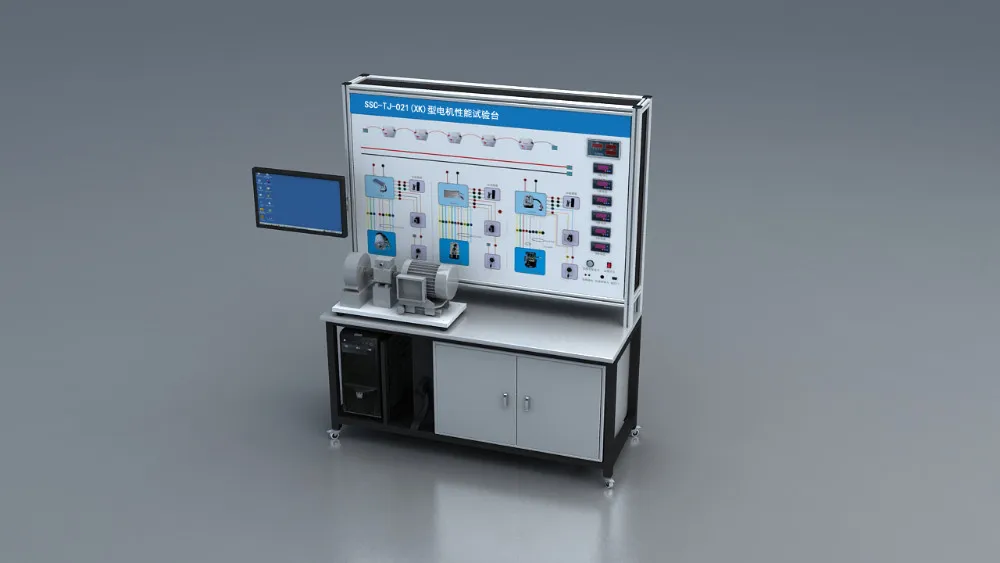

SSS-TJ-021(XK) Experimental Bench of Electric Motor’s Performance consists of training bench frame, new energy automotive battery units, three new energy automotive common electric motors (DC permanent magnet, AC asynchronous, switched reluctance), three new energy automotive accessory motor controllers, accelerator pedal, position device, ignition switch, digital voltage meter, current meter, tachometer, torque meter, power meter, desktop computers and the other modules.
It could simulate the motor’s working status when the electric vehicle is at constant speed, acceleration, deceleration, ascent and descent which are the same as the real electric automotive. The training bench can display the dynamic parameters of the motor rotation, such as voltage, current, torque, speed, power and etc. The upper-computer software can display the changing curve of the motor torque, rotating speeds, power from which you could see those parameter changing during the acceleration, deceleration of the machine directly.
1. Size: 1464mm*600mm*1800mm.
2. Power supply: AC220V, single-phase three wire, less than 250W.
1. The relation between the motor speed, torque, and the other parameters under the uniform condition of automotive
while using DC permanent magnet motor in electric vehicle.
2. The relation between the motor speed, torque, and the other parameters under acceleration of automotive
while using DC permanent magnet motor in electric vehicle.
3. The relation between the motor speed, torque, and the other parameters under deceleration of automotive
while using DC permanent magnet motor in electric vehicle.
4. The relation between the motor speed, torque, and the other parameters under constant speed of automotive while
using AC induction motor in electric vehicle.
5. The relation between the motor speed, torque, and the other parameters under acceleration of automotive while using AC induction motor in electric vehicle.
6. The relation between the motor speed, torque, and the other parameters under deceleration of automotive while
using AC induction motor in electric vehicle.
7. The relation between the motor speed, torque, and the other parameters under constant speed of automotive while
using switched reluctance motor in electric vehicle.
8. The relation between the motor speed, torque, and the other parameters under acceleration of automotive while
using switched reluctance motor in electric vehicle.
9. The relation between the motor speed, torque, and the other parameters under decelerations of automotive while
using switched reluctance motor in electric vehicle.
