Plastic Air Conditioning Blower Fan

Plastic Air Conditioning Blower Fan photo-1
Plastic Air Conditioning Blower Fan photo-2
Plastic Air Conditioning Blower Fan photo-3
Plastic Air Conditioning Blower Fan photo-4
Plastic Air Conditioning Blower Fan photo-5
Plastic Air Conditioning Blower Fan photo-6
US$ 19 - 22 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
AC
Blade Material:
Plastic
Mounting:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Electric Current Type AC
Blade Material Plastic
Mounting Other
Place of Origin Shanghai, China
Brand Name Anneng
Model Number YJF-LFJ42S
Power 118 W
Voltage 240V/110V
Air Volume 410 m3/h
Speed 2650 rpm
Certification CE, ROHS
After-sales Service Provided Engineers available to service machinery overseas



 Fan Display



 air conditioner blower with two  impellers
 Type:  YJF-LFJ42S

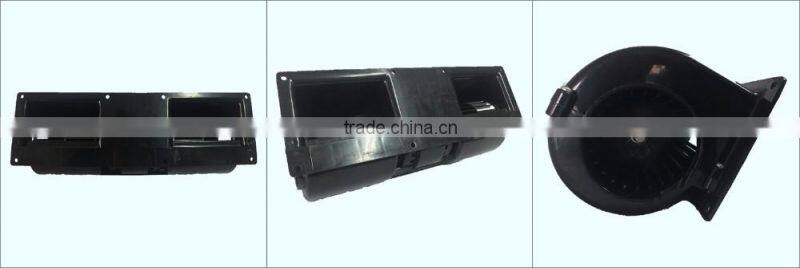

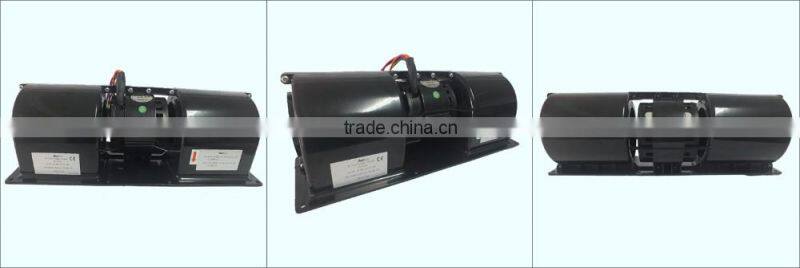

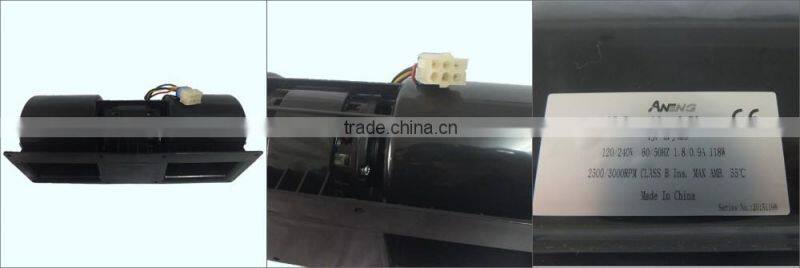

Product Pictures
  Part 1. Fans.

plastic air conditioning blower fanplastic air conditioning blower fanplastic air conditioning blower fan

(PS: ANNENG Reserved, Pirates Must Investigate.)

Product Datasheet
Specification
Model Type: YJF-LFJ42S
Rated Voltage  Frequency Rated Current Input Power Speed Air Flow Air Flow Static Pressure
(VAC) (Hz) (A) (W) (RPM) (CFM) (m3/h)  (Pa)
240/120 50/60 0.83/1.33 113/118 2600/3000 238/250 405/425 140/190

Details Description
Current Leakage  <=3.5mA
Operation Mode  continuous operation S1
Direction of Rotation  clockwise, seen on rotor
Mounting Position  at will
Insulation Class  "B" or "F"
Cable Length  450mm
Bearing   sleeve bearing
Net weight   2.0kg
Motor Protection  Thermal overload protector (TOP) brought out
Number of Blades  /
Type of Protection  IP44
Approval  CE
Operate Life  >=40,000hours



Charts
    plastic air conditioning blower fan

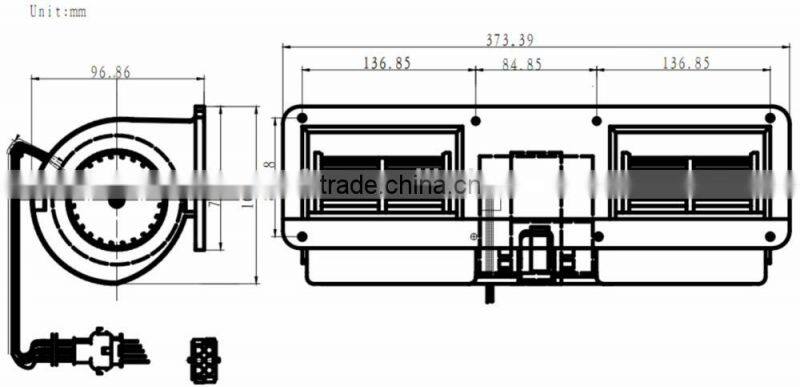

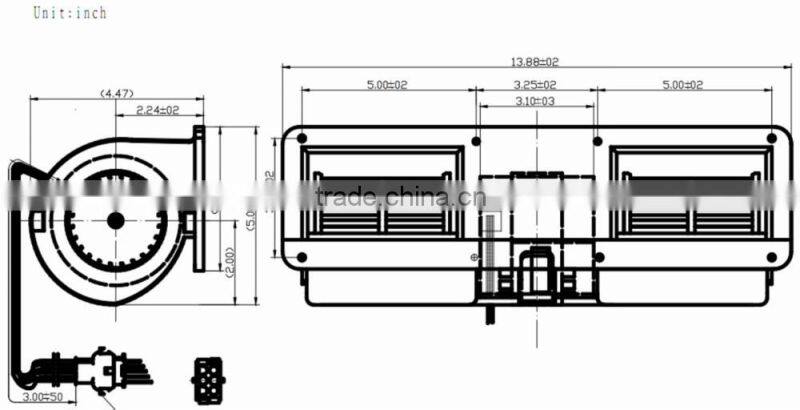

Drawing

plastic air conditioning blower fan





plastic air conditioning blower fan



Other 110V / 220V AC Fans
plastic air conditioning blower fan plastic air conditioning blower fan plastic air conditioning blower fan







Factory Display
Production Line
  1.Product Process Inspection
plastic air conditioning blower fan
  2.Motor Independent Production
plastic air conditioning blower fan
Packaging

1. for Sample, packing individually by foam carton;

2. for Mass, pallet package 120x100x120CM.

plastic air conditioning blower fan
Certifications
plastic air conditioning blower fan
Our Guarantees

 Quality Guarantee

We are professional manufacturer in ac,dc,ec centrifugal fans with brushless external rotor motor. All the fans are produced by ourselves independently, including the motor. So we have more confidence on the products' qulaity and performance.

 Price Guarantee

The products are sold by our own factory directly. So the reason for low price is simple: no middlemen.

 Delivery Time Guarantee

We will make production on time as order and send the goods according to mutual confirmed delivery time. We will try our best to avoid risk of any delay.

 Service Guarantee

We adopt the mode of combining the sales team and engineers team. So we can provide the responsible suggestion and recommendation when we contact at first time.We will check all details before accepting the order, and keep quality before delivery.
