Syringe Driven Filters

Syringe Driven Filters thumbnail-1
Syringe Driven Filters photo-1
US$ 0.001 - 0.08 MOQ: 100 Cases
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Jet Biofil
Model Number:
PTF205013
Contact Supplier Request Quote Chat Now
Guangzhou Jet Bio-Filtration Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Jet Biofil
Model Number PTF205013
After-sales Service Provided Overseas service center available
Product series: Filtration Products

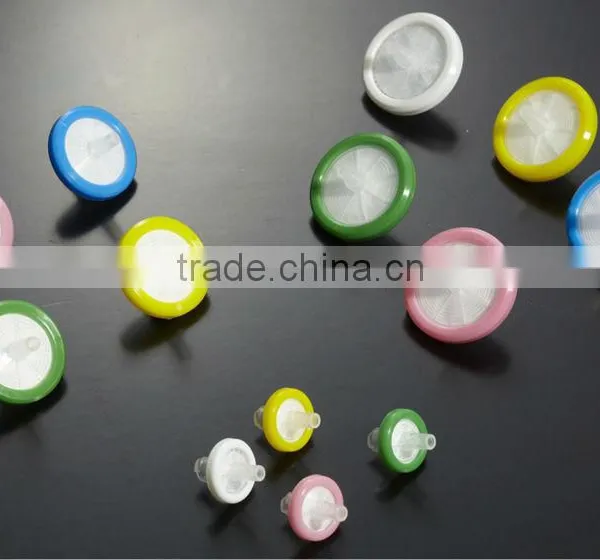

Product name: Syringe Driven Filters
Product information

Syringe driven filters are widely used in laboratory, whichare easy to operate, safe and effective.

  • Available with 6 membrane types of FCA,PVDF, PES, MCE, Nylon and PTFE
  • 2 membrane areas of 0.65 and 4.3 cm2
  • 3 pore sizes: 0.1, 0.22 and 0.45μm
  • Quality tested for filter efficacy and housing integrity
  • Low hold-up volume
  • Gamma radiation sterilized
  • Non-pyrogenic

Ordering Information

  • Individually packed in peel-to-open paper/plastic blister pack
  • Designed recycle paper package box for easy open and close or place
  • Every package box is labeled with lot No.

Technical Product Information

Membrane Material
Housing Diameter (mm )
Filter Area
(cm2)
Housing Material
Process Volume (ml)
Hold-up Volume ( μl)
PVDF
13.0
0.65
PP
10
≤ 50
30.0
4.3
PP
100
<100
PES
13.0
0.65
PP
10
≤ 50
30.0
4.3
PP
100
<100
MCE
13.0
0.65
PP
10
≤ 50
30.0
4.3
PP
100
<100
Nylon
13.0
0.65
PP
10
≤ 50
30.0
4.3
PP
100
<100
PTFE
13.0
0.65
PP
10
≤ 50
25.0
4.3
PP
100
<100

Individually package

Cat. No.
Membrane Material
Color
Pore Size(μm)
Housing Diameter (mm)
Sterile
Qty. per box/ case
FMC201004
MCE
Yellow
0.22
4.0
Y
100/800
FMC201013
0.22
13.0
Y
100/800
FMC201025
0.22
25.0
Y
45/360
FMC201030
0.22
30.0
Y
45/360
FMC401004
0.45
4.0
Y
100/800
FMC401013
0.45
13.0
Y
100/800
FMC401025
0.45
25.0
Y
45/360
FMC401030
0.45
30.0
Y
45/360
FPV103004
PVDF
Blue
0.10
4.0
Y
100/800
FPV103013
0.10
13.0
Y
100/800
FPV103025
0.10
25.0
Y
45/360
FPV103030
0.10
30.0
Y
45/360
FPV203004
0.22
13.0
Y
100/800
FPV203013
0.22
13.0
Y
100/800
FPV203025
0.22
25.0
Y
45/360
FPV203030
0.22
30.0
Y
45/360
FPV403004
0.45
4.0
Y
100/800
FPV403013
0.45
13.0
Y
100/800
FPV403025
0.45
25.0
Y
45/360
FPV403030
0.45
30.0
Y
45/360
PTF205004
PTFE
White
0.22
4.0
Y
100/800
PTF205013
0.22
13.0
Y
100/800
PTF205030
0.22
25.0
Y
45/360
PTF205030
0.22
30.0
Y
45/360
PTF405004
0.45
4.0
Y
100/800
PTF405013
0.45
13.0
Y
100/800
PTF405025
0.45
25.0
Y
45/360
PTF405030
0.45
30.0
Y
45/360
FNY202004
Nylon
Pink
0.22
4.0
Y
100/800
FNY202013
0.22
13.0
Y
100/800
FNY202025
0.22
25.0
Y
45/360
FNY202030
0.22
30.0
Y
45/360
FNY402004
0.45
4.0
Y
100/800
FNY402013
0.45
13.0
Y
100/800
FNY402025
0.45
25.0
Y
45/360
FNY402030
0.45
30.0
Y
45/360
FPE204004
PES
Green
0.22
4.0
Y
100/800
FPE204013
0.22
13.0
Y
100/800
FPE204025
0.22
25.0
Y
45/360
FPE204030
0.22
30.0
Y
45/360
FPE404004
0.45
4.0
Y
100/800
FPE404013
0.45
13.0
Y
100/800
FPE404025
0.45
25.0
Y
45/360
FPE404030
0.45
30.0
Y
45/360
FCA206004
      FCA

0.22
4.0
Y
100/800
FCA206013
0.22
13.0
Y
100/800
FCA206025
0.22
25.0
Y
45/360
FCA206030
0.22
30.0
Y
45/360
FCA406004
0.45
4.0
Y
100/800
FCA406013
0.45
13.0
Y
100/800
FCA406025
0.45
25.0
Y
45/360
FCA406030
0.45
30.0
Y
45/360







 ABS=Acrylonitrile Butadiene Styrene
PP=Polypropylene
PVDF=Polyvinylidene Fluoride
PES=Polyethersulfone
MCE=Mixed Cellulose Ester
PTFE=Polytetrafluoroethylene
