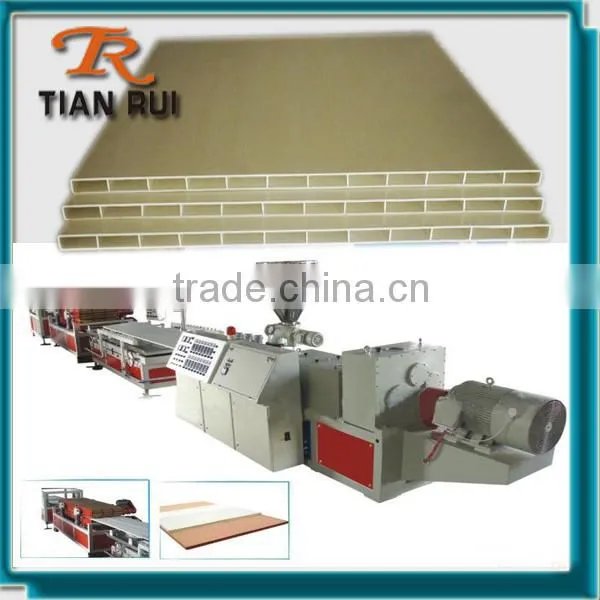

door panel extrusion mould
specification
Product name: door panel extrusion mould | ||||||
| Mould material: | 3Cr17, 3Cr17MoNiV,or as per your request |
|||||
| Mould component: | Die head, aluminum heating bands, calibrators and water tank | |||||
| Mould cavity: | 1 or multi-cavity | |||||
| Mould surface treatment: | High polished surface. | |||||
| Profile material: | wpc ( plastic+wood flour) | |||||
| Extrusion speed: | 3-7 meters per minute | |||||
| Package: | Wooden case, | |||||
| Lead time: | 35-40 days | |||||
| Production ability: | 60 sets per month | |||||
| Main Market: |
Southeast Asia,Europe,Africa,etc. |
|||||
| Test service: | Mould will be tested to reach the demanded technical standard before delivery. | |||||
| Feature: |
Selectable co-extrusion of different raw materials: PVC, PP, PE, ABS Selectable technology: low-foaming, high-foaming & substance co-extrusion Stable discharging, high efficiency, superior quality |
|||||
| Service | Provide complete set of production process and technology transfer service | |||||
Detailed Descriptions
1.Advanced mirror polished surface treatment technology.
2.High quality 3Cr17 stainless steel material for wood plastic extrusion mould.

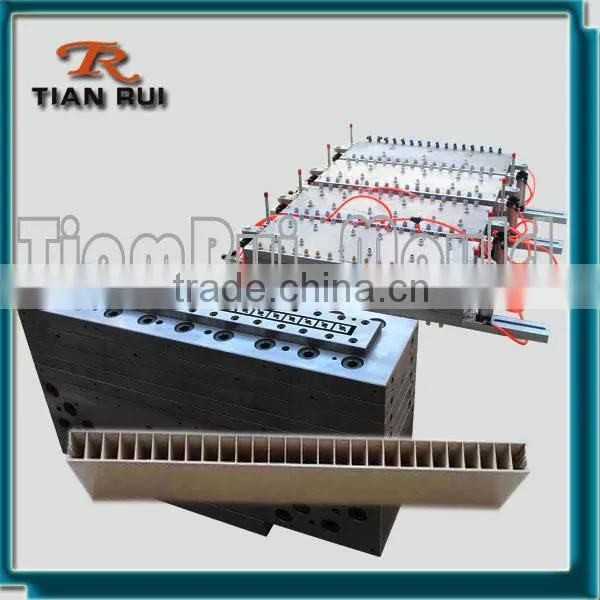

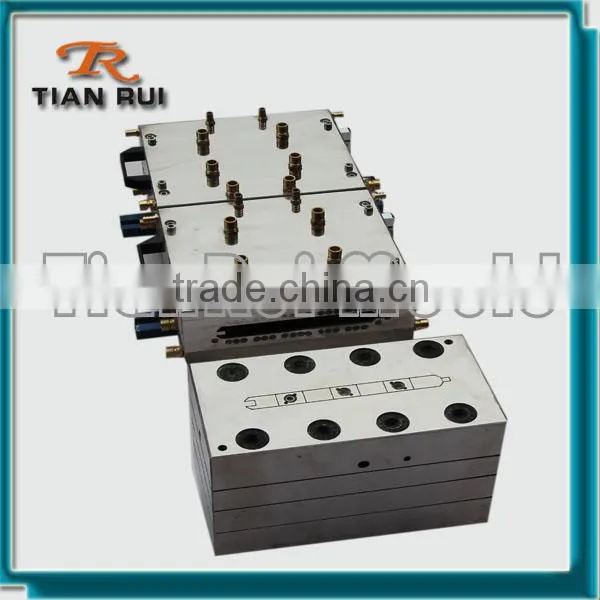

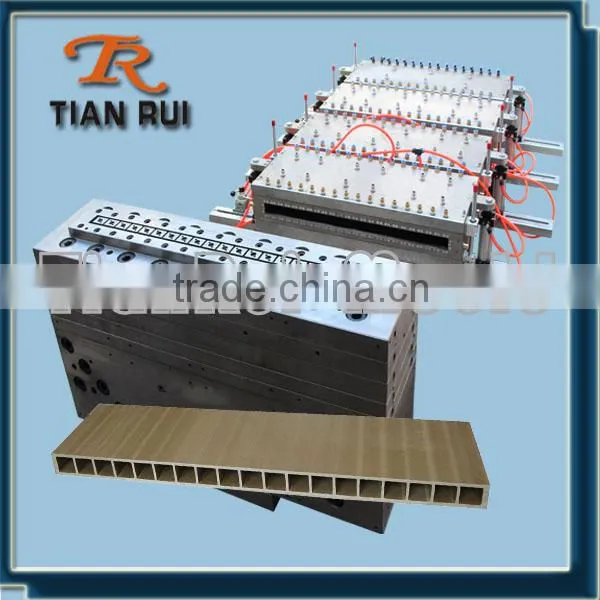

3.Configuration:one die head + four heating plates+three-segment calibrator +two-meter stainless water tank or as you require.
Our Advantages Of WPC Extrusion Mould
1.The mold structure differs according to the amount of the wood flour in the wood-plastic formulations to achieve the predefined technical specifications effectively;
2.The realization of the internal cooling of the die ensures the balance of the internal and external cooling. The least resistance design of styling segment, effectively reduces the forming resistance of styling segment , ensures the size of final products, reduces the abrasion of the mould and extends the using life of the mould.
3The adjustable pre-cooling of the die design guarantees the cooling of the products efficiently in the condition of high speed extrusion and makes it easy to adjust.
4. The technology of single-chamber, dual-chamber and multi-cavity is used to achieve efficient production.
5.The main components of the mould are dealt with special technology treatment and it doubles the service life of the mould.
6.Removable positioning device;
7.Assembling and disassembling are very convenient;

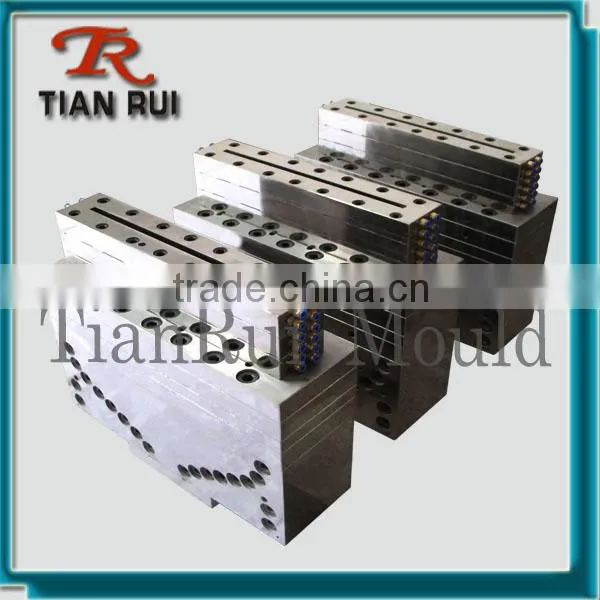

Similar Moulds And Samples Of WPC Profiles
Applications Of Samples
We always can manufacture the mould as your requirement,you can offer us your own CAD drawings,or we can design the drawings for you.
Value-added services
Comprehensive cost control service;
Mould designing service;
Emergency manufacturing delivery service:;
Mold debugging Service;
Customer production training service;
High Quality After-Sale Service
- Provide technical support
- One year free quality warranty
- Lifetime paid maintenance
Manufacturing And Packaging
Hubei TianRui Plastic Mould Co., Ltd is one of the earliest manufacturers and developers that specialize in plastic profile extrusion mould. The company has gathered a team of the earliest mould manufacturing elites who are professional in mould designing, manufacturing and testing and rich in experience.
Why Choose Us?
1.we are the one of biggest WPC extrusion mould designers and manufacturer in Hubei.
2. our moulds account for the majority China market. Full range of specifications: floor, wall, ceiling, guardrail, door and window series etc.
3. Rich experience: over 20- years of experience in the mold industry with trustworthy skills, offering comprehensive services.
4. High-quality,high speed,high precision molds and reasonable prices.
5. The wood-plastic molds feature fine wood texture and environmental protection .
6.Different PVC,PE,PPR,ABS,Pc and other plastic pipe mould, wpc wood plastic composite mould.
7.We can provide a whole set to technical support including extruder election,formulas process and extrusion mould.
