Factory Supply 3 Axle Tanker Aluminium Alloy Fuel Tank Trailer

Factory Supply 3 Axle Tanker Aluminium Alloy Fuel Tank Trailer photo-1
US$ 16,000 - 28,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Semi-Trailer
Material:
Steel
Certification:
Other, ISO 3C
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in china
Delivery Detail:
Delivery time depends on order quantity.
Type Semi-Trailer
Material Steel
Certification Other, ISO 3C
Size 12100*2500*3900mm
OEM No. n/m
Max Payload 40000 kg
Place of Origin Hubei, China
Brand Name chengliwei
Model Number clw

Specifications

Factory supply 3 axle tanker aluminium alloy fuel tank trailer
1Adopt high tensile steel.
3. compartments available

Factory supply 3 axle tanker aluminium alloy fuel tank trailer



1 Tank trailer capacity range from 20000litres to 60000litres

2 fuel could be fill from top or bottom loading

3 The tank could divided into many compartments as customerneeds

4 axles brand : FUWA ,BPW. etc ....

5 Trailer landing gear: TFOC, FUWA ,JOST ...etc

6 Tires : signal tyres .tubeless tyre,nylon tyres ,radial tyres .etc

7 Kingpin : 90# or 50#







Product Description



Fuel tanker trailer with 3 axles

#

Descriptions

Specifications and types

General

Truck Brand

CHENGLIWEI (OUR BRAND)

Approx. Dimension

12990*2500*3900mm

GVW./Kerb Wt.

40000 / 7170 kg



Fifth wheel load

32830 kg

Axles

BPW/FUWA brand ect,3x13 tons double wheels with drum brakes

Specification

Landing legs

JOST/FUWA brand, heavy duty , mechanical 2-speed manual operation,

28,000 kg per pair

Suspension system

3 axles mechanical suspension

King pin

90# or 50#

Tyres

11.00R20 12PR

Tank shape

Elliptical

Total volume

50,000 litres

Tank material

High quality carbon steel

Manhole

Europe manhole

Mudguards

Heavy duty mudguard with rubber mud-flaps

Bumpers

Side bumper mounted between landing gear and first axle,

rear bumper is European standard

Brake

Dual circuit pneumatically operated

Electric system

24V lighting system.7-pole distribution cable .



Painting

Painted with two anti-corrosive primer coats and two level top coat

Emergency valve, flow meter ,bottom loading system, foldable handrail, epoxy coating inside

the tanker is optional

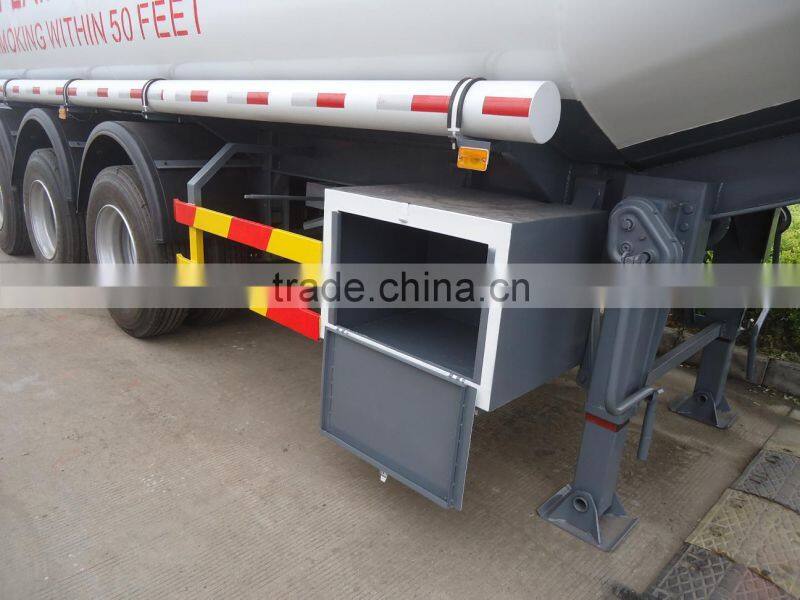

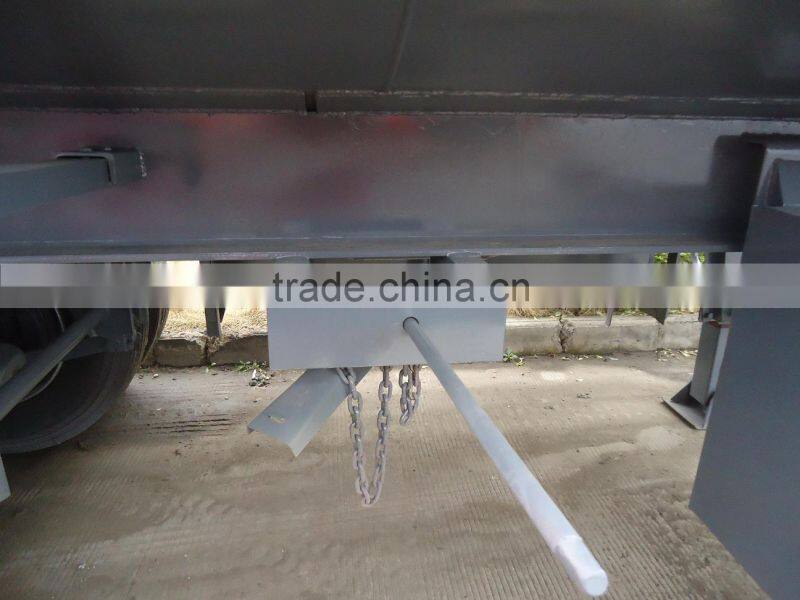

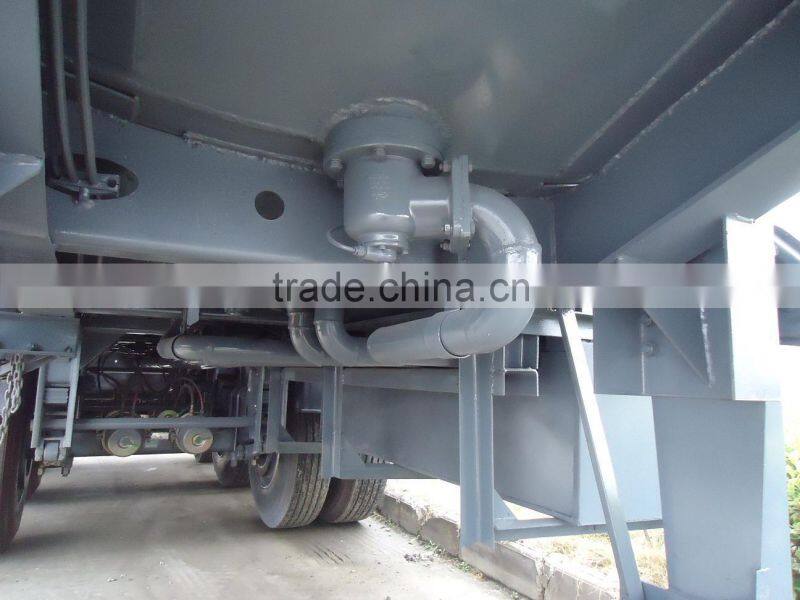

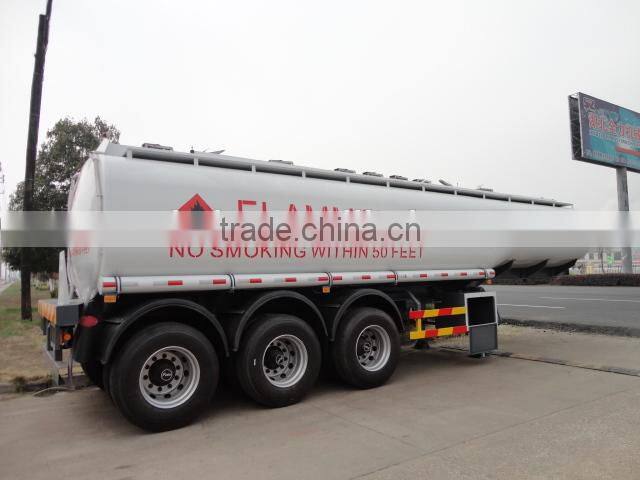

Detailed Images

 Factory supply 3 axle tanker aluminium alloy fuel tank trailerFactory supply 3 axle tanker aluminium alloy fuel tank trailerFactory supply 3 axle tanker aluminium alloy fuel tank trailerFactory supply 3 axle tanker aluminium alloy fuel tank trailer





 SEMI-TRAILER SERIES:

 Factory supply 3 axle tanker aluminium alloy fuel tank trailer



OUR WORKSHOP :

Factory supply 3 axle tanker aluminium alloy fuel tank trailerFactory supply 3 axle tanker aluminium alloy fuel tank trailerFactory supply 3 axle tanker aluminium alloy fuel tank trailerFactory supply 3 axle tanker aluminium alloy fuel tank trailerFactory supply 3 axle tanker aluminium alloy fuel tank trailer



TRAILER COULD BE DIVIDED INTO MANY COMPARTMENTS:

Factory supply 3 axle tanker aluminium alloy fuel tank trailerFactory supply 3 axle tanker aluminium alloy fuel tank trailer



Certifications

 Factory supply 3 axle tanker aluminium alloy fuel tank trailer



Company Information

 Factory supply 3 axle tanker aluminium alloy fuel tank trailerFactory supply 3 axle tanker aluminium alloy fuel tank trailer



Welcome to visit our company! suizhou city, Hubei Province.



Contact person:  Dora Wan



 Tel :0086-13872885090   Skype :janecake102    Trademanager:cn1511340685
