best buy 8 Line phone voice recorder,gsm voice recorder

Specifications

best buy 8 Line phone voice recorder,gsm voice recorder

Product Introduction:

Embedded phone boxes is a fusion of advanced digital signal processing technology, embedded voice recording products, It is simple, without a computer, recording time is long, safe, reliable, low-power, more energy-saving features, it can give your work and life with to great convenience. NewNew 8 line voice telephone recorder/gsm voice recorder

This product can be widely used in commercial telephone recording, power dispatch recording, hotline telephone recording, telephone recording complaints, Key positions in telephone recording, paging stations recording, recording of financial securities, public security alarm recording, call monitoring the security sector, aviation, railway, transportation scheduling recordings and the recording industry's production scheduling.

1.Power that can work without connecting to the computer, independent, low power consumption, the product machine consumes less than 4 watts.

 New 8 line voice telephone recorder/gsm voice recorder

2.Default standard 8G TF card, support for G729 and mp3 compression format, saving storage space, sustainable recorded 2000 hours of voice, high compression and high-quality, easy to play.

New 8 line voice telephone recorder/gsm voice recorder

3.Remote login through web browser to visit record box device, convenient management recording system.

5.Support real-time query record, multi-criteria query, convenient and quick to find recording information, real-time playback of audio files, download and delete record audio files.

 New 8 line voice telephone recorder/gsm voice recorder

6.Recordings may aggregate statistics by channel and time and support the sort of records in many ways, user-friendly to operate.

 New 8 line voice telephone recorder/gsm voice recorder

7.Support dual standard call number detection(FSK and DTMF), automatically adaptive capability, with caller ID accuracy rate up to larger than 99.9%.

 New 8 line voice telephone recorder/gsm voice recorder

8.High Resistance design in telephone interfaces, to ensure no impact to the original telephone system and no impact to communication between the two sides.

 NeNew 8 line voice telephone recorder/gsm voice recorderw 8 line voice telephone recorder/gsm voice recorder

9.Using DSP digital technology, 8-channel work independently, high quality recording, voice processing ability, and the system is embedded linux software, safe and reliable, anti-virus.

 New 8 line voice telephone recorder/gsm voice recorder

10. When the system disk will be full, the system will automatically remove the first audio files in order to ensure that the system can record continuously. Also be set to automatically back up recordings, ensure the recording of data is not lost.

 New 8 line voice telephone recorder/gsm voice recorder

11. Support software telephone line voltage measurement function, can adapt to any telephone line.

 New 8 line voice telephone recorder/gsm voice recorder

12. Telephone module telephone lines against lightning strikes and anti-short, safe, reliable, and durable.

 New 8 line voice telephone recorder/gsm voice recorder

13. Support online software upgrades, convenient and practical.

 New 8 line voice telephone recorder/gsm voice recorder

14. Support Simplified Chinese, English and other languages versions.

 NeNew 8 line voice telephone recorder/gsm voice recorderw 8 line voice telephone recorder/phone chip recorder

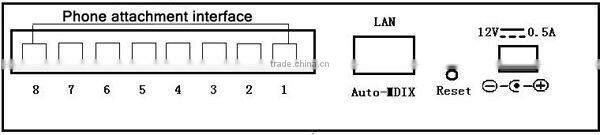

Panel Description:

The installation process:

New 8 line voice telephone recorder/gsm voice recorder

1 telephone line connection method:

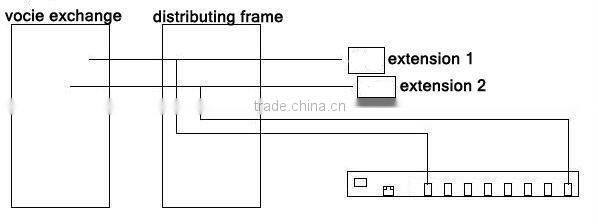

• a. with a patch panel connection method:

If you have room patch panels, according to complete the installation shown above. Extension from the patch panel wiring to a cable to another leads to the telephone jack on the telephone recording box is complete.

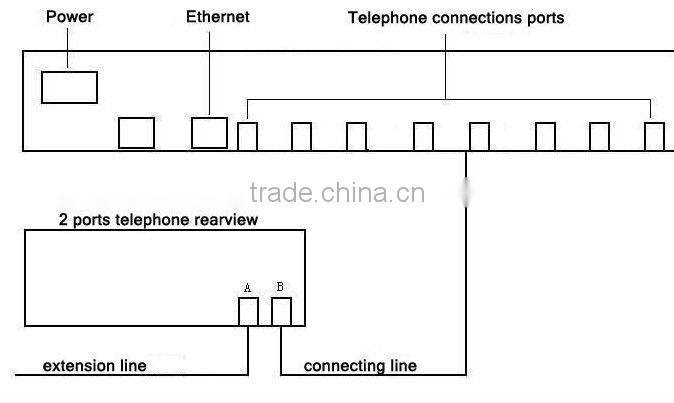

• b. Double wiring hole phone connection method:

If you use the phone wiring has two holes, then a voice switch wiring access hole extension line, and the remaining hole with the supplied wiring cable connected to the recording box wiring holes, as shown below:

• c. single connection hole phone connection method:

If you use only one phone connection hole, you need to use the junction box. Voice switches, wireless access junction box extension of the input hole, 2 out of a hole with the supplied cable connected to the phone, one connected to the recording box, as shown below:

 New 8 line voice telephone recorder/phone chip recorder

Each telephone channel has an LED indicator, channel indicator that the meaning of:

• LED on: telephone and telephone hook ring
• LED off: hang up and phone calls to stop vibration
• LED flash: no connected phone line or line fault
• LED fast flash: the phone module channel exception
• LED fast flash: the phone module channel exception

Detailed picture

FAQ explain

1.How many kinds of modem for Recorder box?

   There are 1/2/8 lines.

2.How about our service?

    We have professional engineer to help you about all your tech problems  anytime,the satisfaction of our customers is our greatest desire.

3.What is our main express shipment?

   DHL,UPS,FEDEX,TNT,EMS(can ship to anywhere all over the world)

4.How long we're warranty ?

   1 year

5.During warranty time,if have problem,how to do?

    We'll test by teamview or send back,we'll exchange new in free.

6.How long about our techinical support?

    In free,forever

If you need more details,contact me freely.
