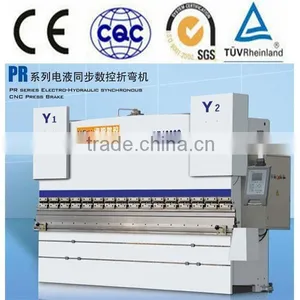

Help CenterQuality as AMADA Euro Design High Performance PR Series Electro-hydraulic Synchronous CNC Press Brake
Related Products
-
Hydraulic Notching Machine ( Fixed Angle)US$ 3,000 - 8,000MOQ: 1 Set -
Hydraulic Notching Machine QC28Y-4X200US$ 3,000 - 8,000MOQ: 1 Set
-
4*200 Hydraulic Hose Crimping Machine, V-notch Machine, Angle Notching MachineUS$ 3,000 - 8,000MOQ: 1 Set
-
China Jotun Hydraulic Variable Angle Notching Machine,hydraulic NotcherUS$ 3,000 - 8,000MOQ: 1 Set
-
Hydraulic Plate BenderNegotiableMOQ: 1 Set
Specifications
1.Same as Amada quality2.TWO factory with 150 employees
3.CE press brake
4.EIGHT year gold supplier
5.After sales service

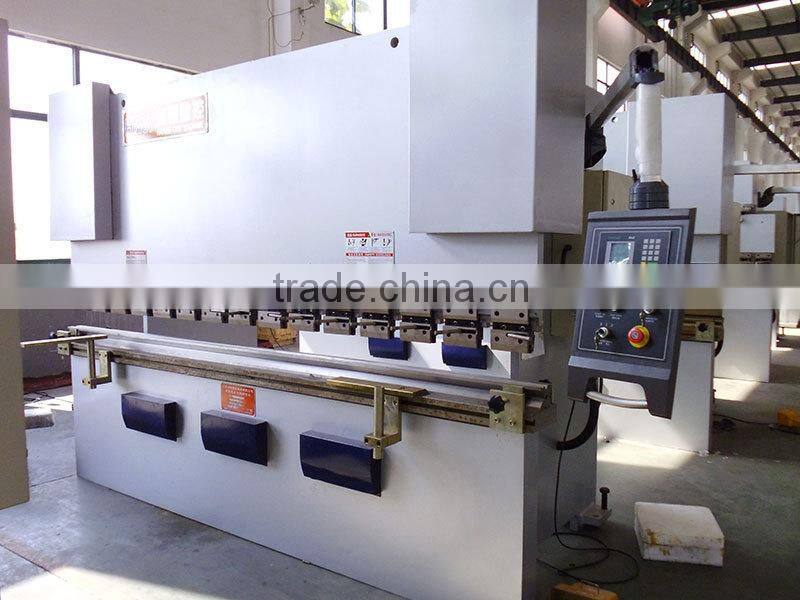

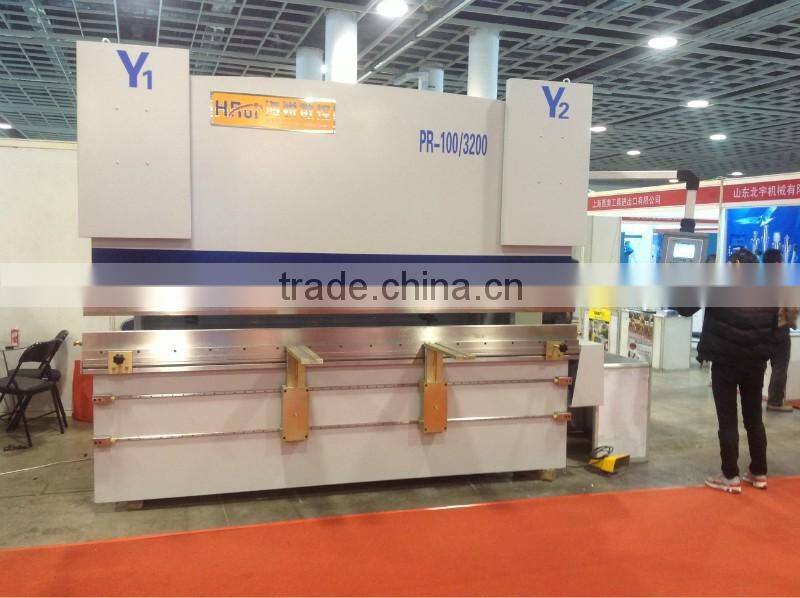

Euro design quality same as AMADA high performance PR series electrohydraulic CNC press brake with advanced CNC control system

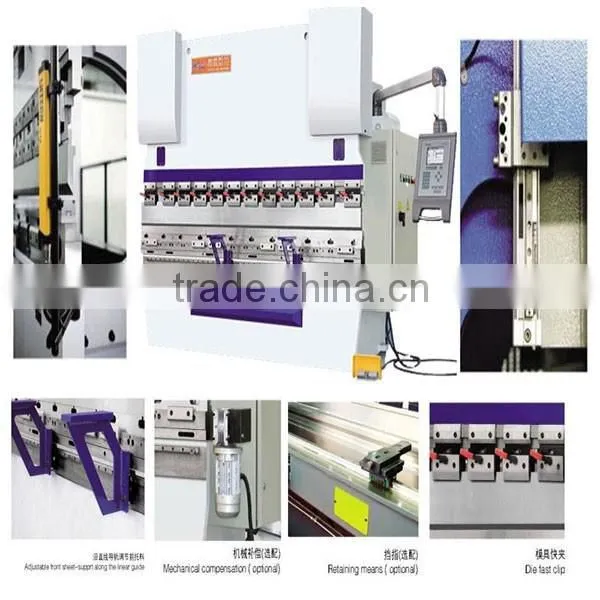

Main features and standard configuration:
1.Netherlands DELEM DA-52S CNC system
2.The numerical control system for Y1-Y2-X-V (3 +1) axis
3. Whole welded structure.
4. Dual cylinder connecting slider directly to control it’s up and down running.
5. Italian ATOS high performance electro-hydraulic proportional servo-synchronization control hydraulic system.
6.Optional Germany ELGO / Turkey OPKON high precision magnetic grid scale (Y1-Y2 - axis).
7.It controls the worktable hydraulic crowning compensation (if more than 300 tons , we choose workbench deflection compensation system)
8.Sweden SKF / Japan NOK original imported master cylinder seals
9. Germany EMB / JS sleeve type pipe joints.
10.Taiwan HIWIN / PMI-AMT back gauge linear guides and ball screw

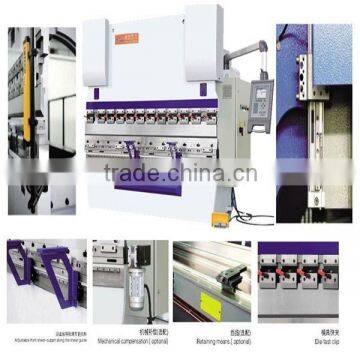

11. Mechanical Petiole wedge block partial compensation mechanism.
12. Standard combined upper and lower mold.
13. With the back door curtain.
14. Double linear guide and front support device.
PR series main import deployment list | |
Control system |
Italian ESA,Netherland DELEM, or Swiss CYBELEC |
Servo motor and drive |
Japanese YASKAWA |
Hydraulic system |
HOERBIGER Company of German BOSCH |
Ball bearing lead screw |
Taiwan HIWIN |
Straight-line guide |
Taiwan HIWIN |
Seal ring |
FLETZ, Japanese VALQUA |
Raster ruler |
HEICENHAIN, GIVI |
(optional parts for electro hydraulic press brake)
What is Electro-hydraulic servo CNC bending machine
1. It uses the advanced electro-hydraulic synchronization. Y1- Y2 axis is the 2 oil cylinders separate moving parameter controlled by the CNC system.

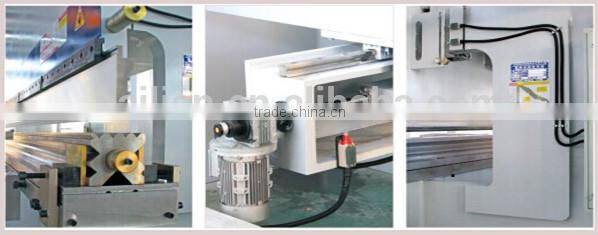

2.Both sides of the machine are equipped with a RSF grating. The usage for the grating is to measuring the distance between the slider and working table. The granting is connected with the working table through a small frame(C shaped frame), which maximum eliminates the column’s deformation impact on the slider’s position.
3.The slider’s moving position data will feedback to the CNC system immediately. It can measure and output the servo value control S1-S2.
4.It controls two electro-hydraulic servo value’s output flow, to let the two oil cylinders synchronization.
5.The position measuring process is called closed-loop control.

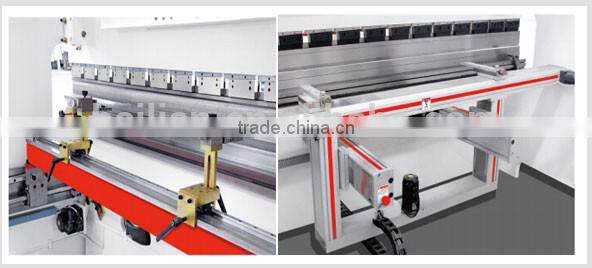

(Optional back gauge device, can operate with Xaxis, R axis, Z axis electrically adjustment)

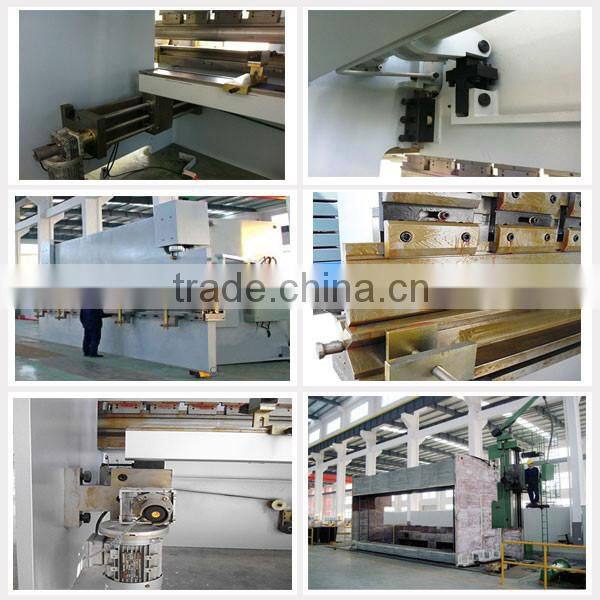

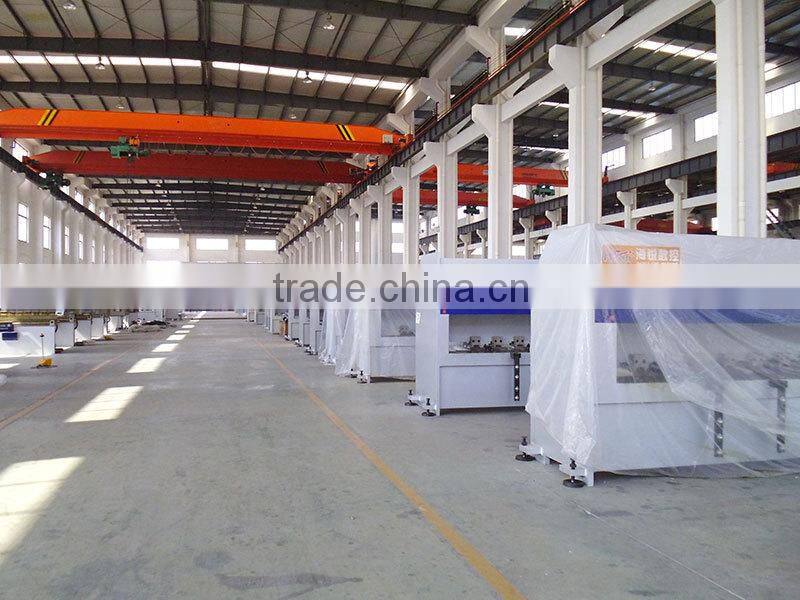

(Real product taked in our new factory, the yellow thing is RUST-PROOF OIL)
