China U Panel/4 Panel/cercular Jumbo Bag With Petal Closure

china U panel/4 panel/cercular jumbo bag with petal closure

PRODUCT DESCRIPTION

A flexible intermediate bulk container (FIBC), bulk bag, big bag or super sack, is an industrial container made of flexible fabric that is designed for storing and transporting dry, flowable products, such as sand, fertilizer, and granules of plastic.

FIBCs are most often made of thick woven polyethylene or polypropylene, either coated or uncoated, and normally measure around 110 cm or 45-48 inches in diameter and varies in height from 100 cm up to 200 cm or 35 to 80 inches. Its capacity is normally around 1000 kg or 2000 lbs, but the larger units can store even more. A bulk bag designed to transport one metric ton of material, will itself only weigh 5-7 lbs.

Transporting and loading is done on either pallets or by lifting it from the loops. Bags are made with either one, two or four lifting loops. The single loop bag is suitable for one man operation as there is no need for a second man to put the loops on the loader hook. Emptying is made easy by a special opening in the bottom such as a discharge spout, of which there are several options, or by simply cutting it open.

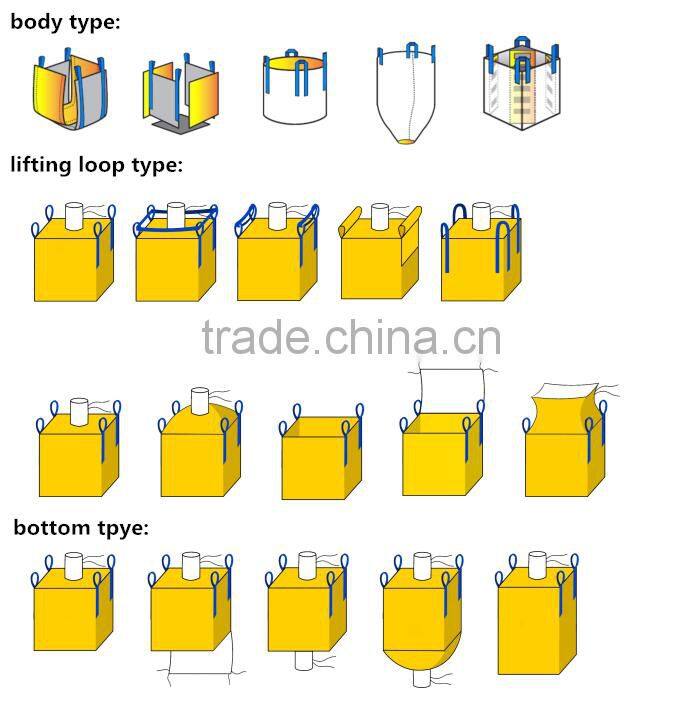

Structural forms

• U-Panel construction
• Circular/Tubular construction
• Baffle construction
• Four side panel construction
• Round construction
• core construction
• GN Drive Construction
• c-panel Q bag

Electrostatic properties

• Type - A - no special electrostatic safety features
• Type - B - Type B bags are not capable of generating propagating brush discharges. The wall of this FIBC exhibits a breakdown voltage of 4 kilovolts or less.
• Type - C - Conductive FIBC. Constructed from electrically conductive fabric, designed to control electrostatic charges by grounding. A standard fabric used contains conductive threads or tape.
• Type - D - Anti-static FIBCs, essentially refers to those bags which have anti-static or static dissipative properties without the requirement of grounding.

Product parameters

*All products can be customized. *

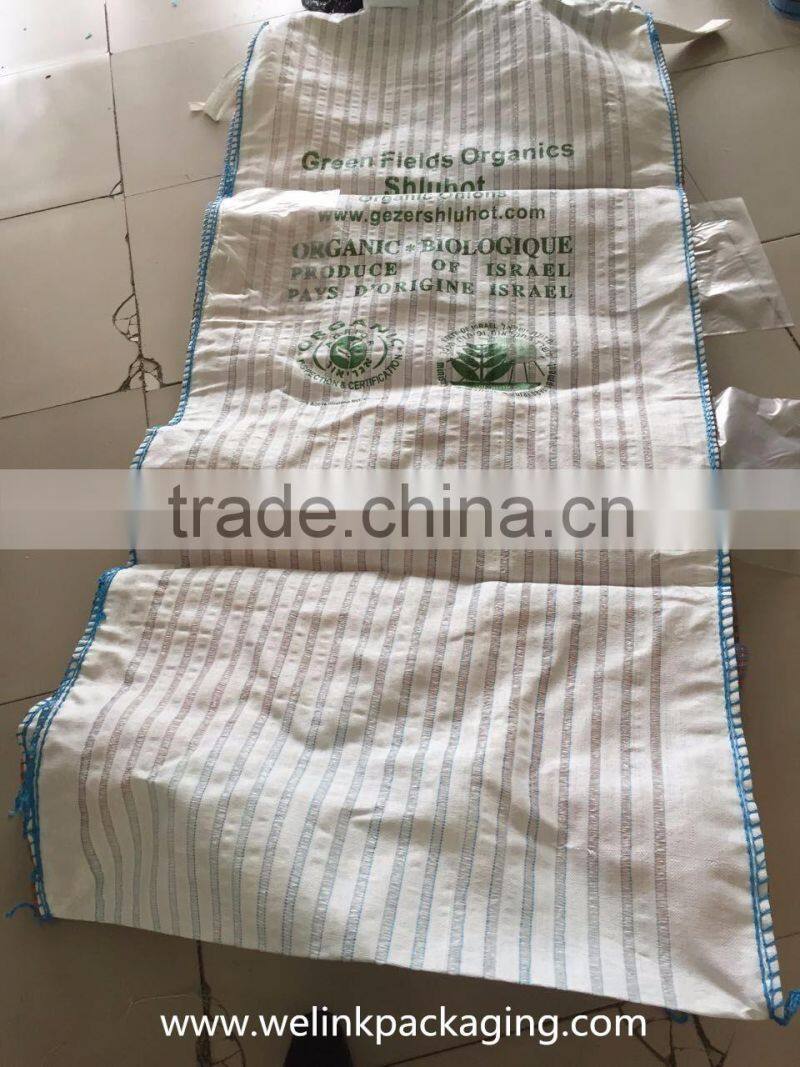

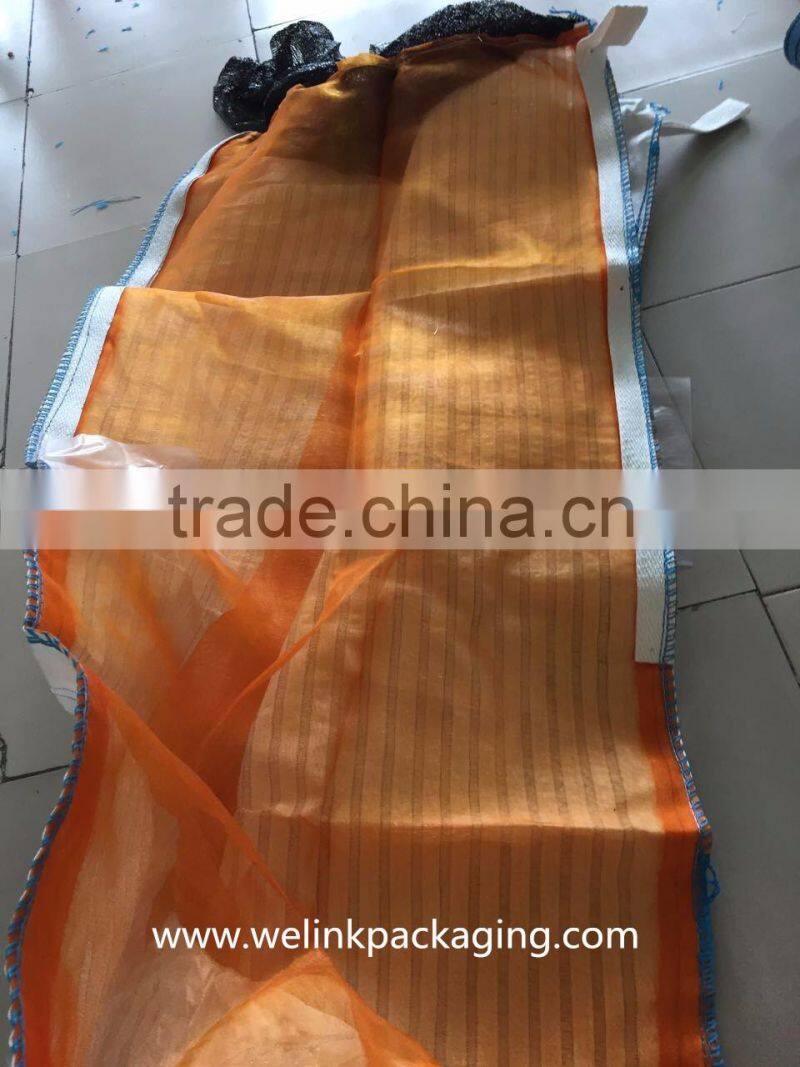

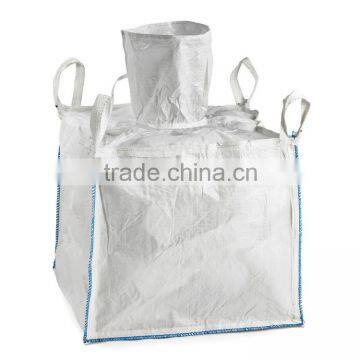

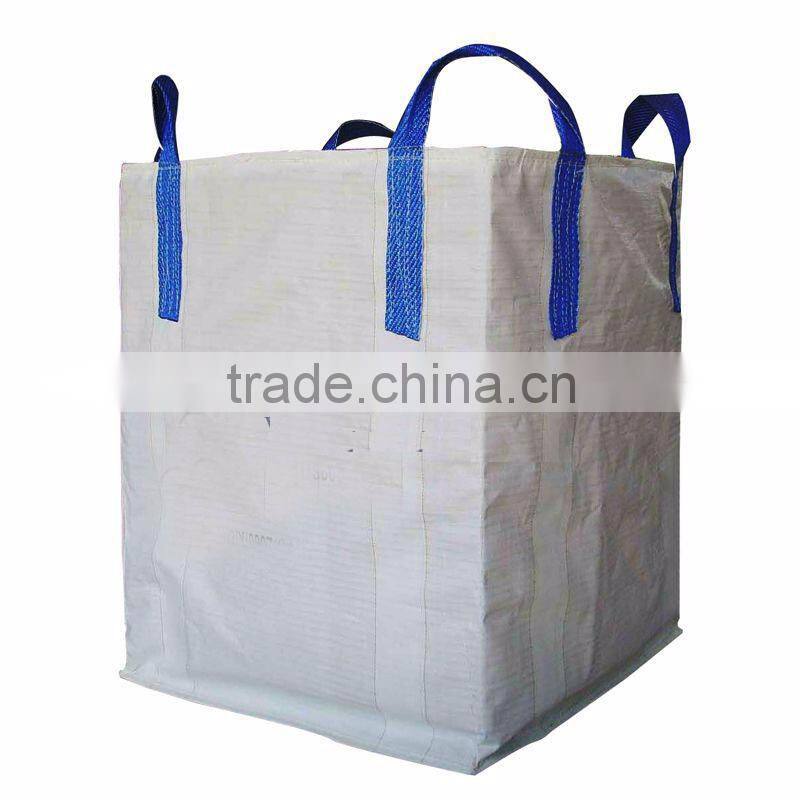

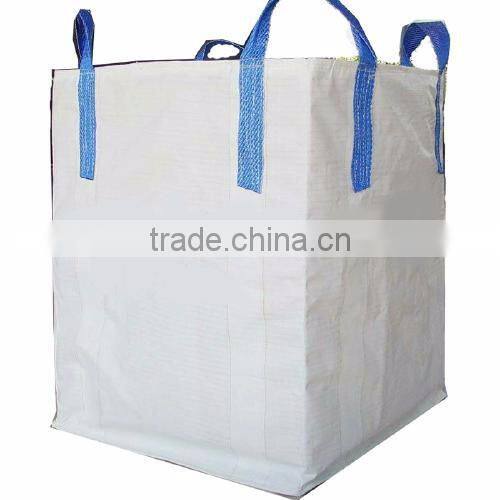

PRODUCT PICTURE

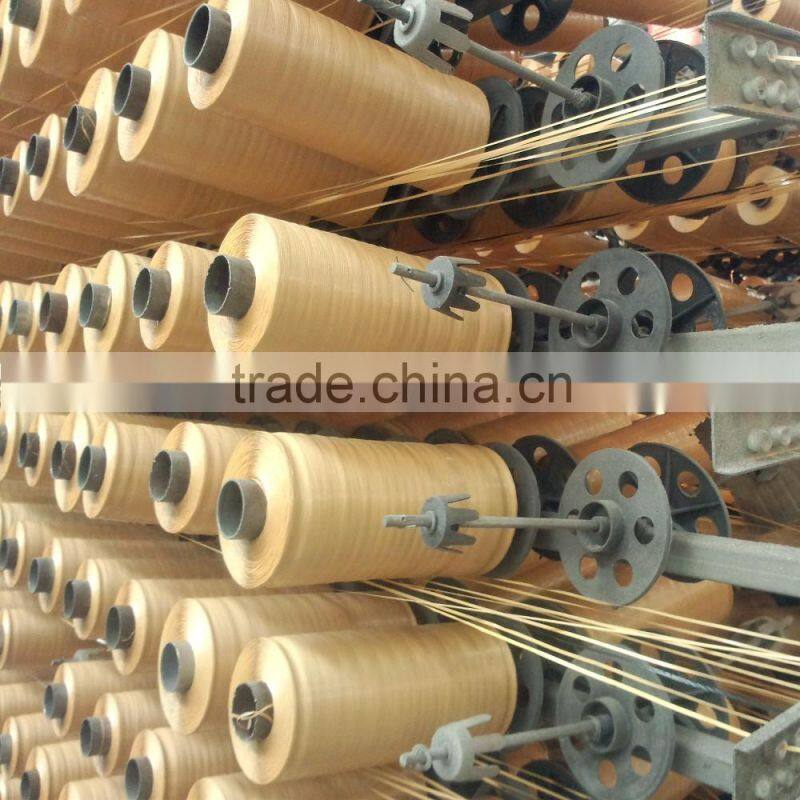

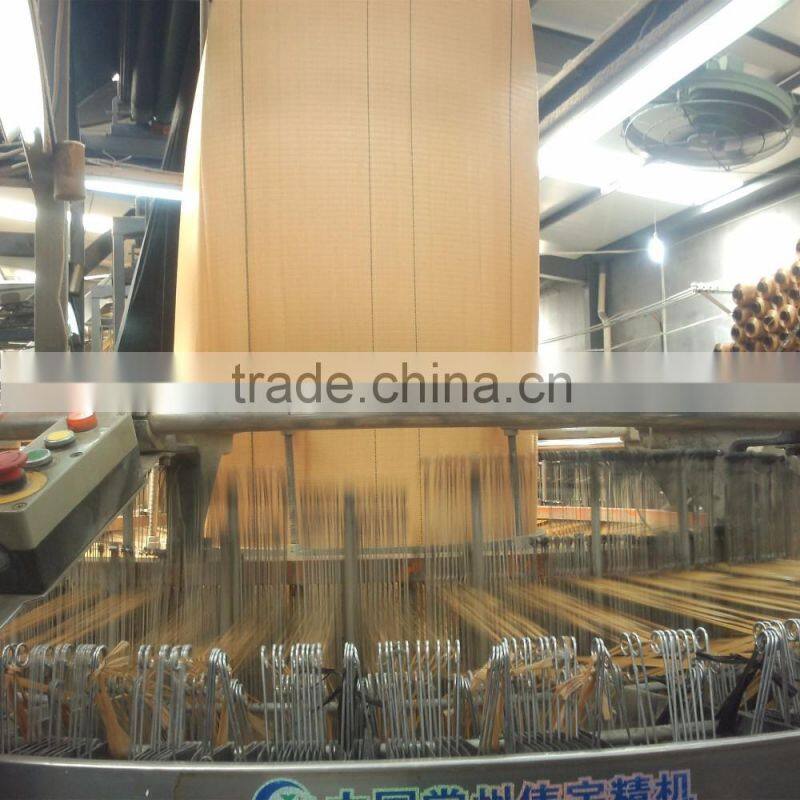

WORKSHOP

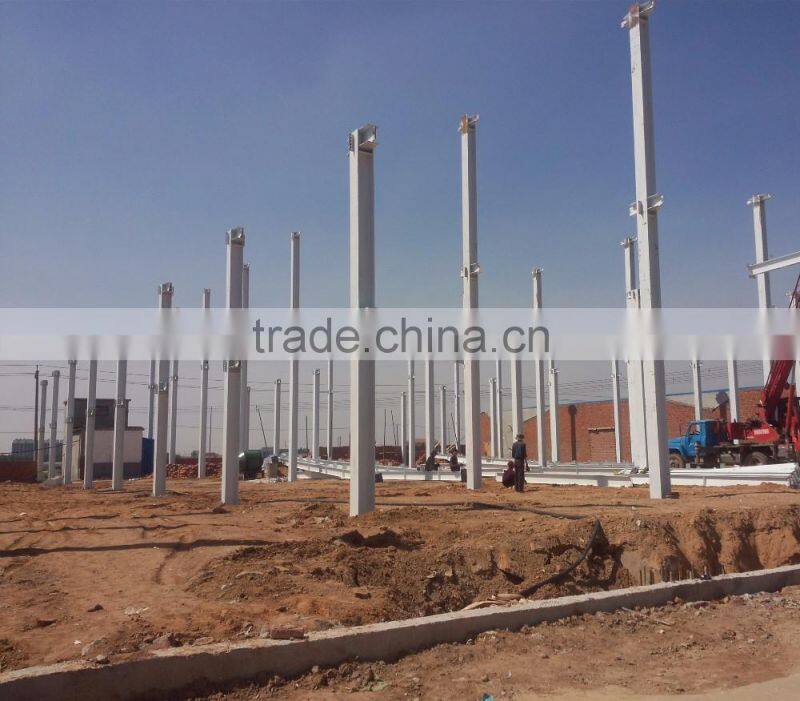

Dust-free food grade workshop is under construction.

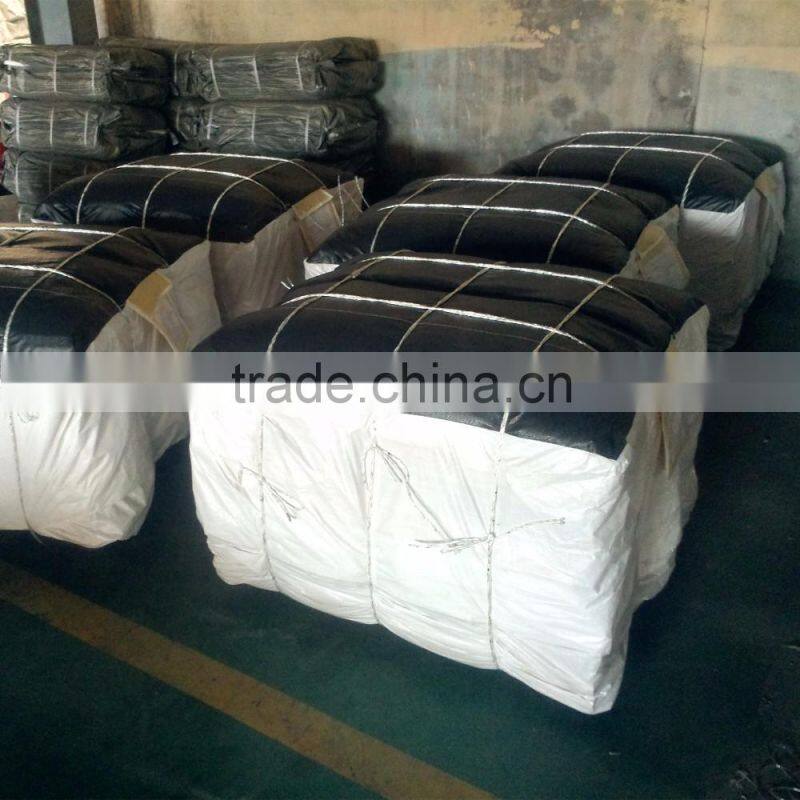

Packaging

About us

Shandong Welink Packaging is a vertically integrated manufacturer of flexible intermediate bulk containers, committed to being a leader through innovation in the bulk bag industry, in both the products that we offer and the outstanding service we provide.

Shandong Welink Packaging is an ISO 9001 certified professional producer of flexible packaging with almost 40 years’ experience, and now is applying for ISO22000 certification.

Welink can provide various packaging include FIBC, PP woven bags HDPE bag, valve bag and shopping bag for wide range of industries.

Welink is located in Weifang, Shandong Province, China. The production base covers 50000 square meters, with 400 employees and 50 technicians and 20 advanced production lines including extruding machines, circular weaving machines, coating machines, sewing machines and we have automatic production line from Starlinger to produce high quality valve bags.

Our products are widely used in industries from salt, sugar, chemicals to gardening and minerals. Products and services have been supporting deliveries&storage of customers all over the world.
