Custom designed dongfeng small mini road sweeper truck

FOB Price

USD $25,000 - $45,000 / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Custom designed dongfeng small mini road sweeper truck

The vehicle is composed by chassis ,auxiliary engine,air blower ,magnetic valve ,debris bin ,water

Bin,sweeping system,suction system ,water sprinkling system, hydraulic system,electrical control system,etc,..

This road sweeper is suitable for brushing,suction and transportation of dusts,leaves,mud,soil ,sand,stone chips ,g

ravels and other small particles on the ground of city roads and areas.

Product Description

ROAD SWEEPER TRUCK
#	Descriptions	Specifications and types
General	Truck Brand	Chengliwei (our brand)
	Chassis Brand	DONGFENG
	Approx. Dimension	597020002380 mm
	GVW./Kerb Wt.	6495 / 4865kg
Cab	Cab Capacity	2 persons' seat
Cab	Air Conditioner	Air Conditioner is optional
Chassis	Drive Type	4X2,left hand drive
	Fuel Type	Diesel
	Engine Make & Model	YUCHAI ENGINE
	Power	90 Ps / 66 KW
	Displacement	2659 ml
	Emission Standard	EURO II or EURO III or EURO IV
	Wheelbase/No.of axle	3300 mm / 2
	Tyre Specfication	7.00-16,6.50-16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Automative metallic paint
	Debris bin capacity	3.5CBM
	Clean water bin capacity	0.8CBM
	Air blower	Manganese or stainless steel,drive by auxiliary engine
	Auxiliary engine	77hp @ 3600rpm
Equipments	Debris bin and water bin are made of stainless steel ,corrosion-resistant Four booms sweeping system and suction system combine working ,high efficient. Water sprinklers equipped on brooms,suction nozzle. Suction nozzle is floating type,self adjustable for different road condition. Air blower is special for road sweeper,high efficient,low noise

The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.

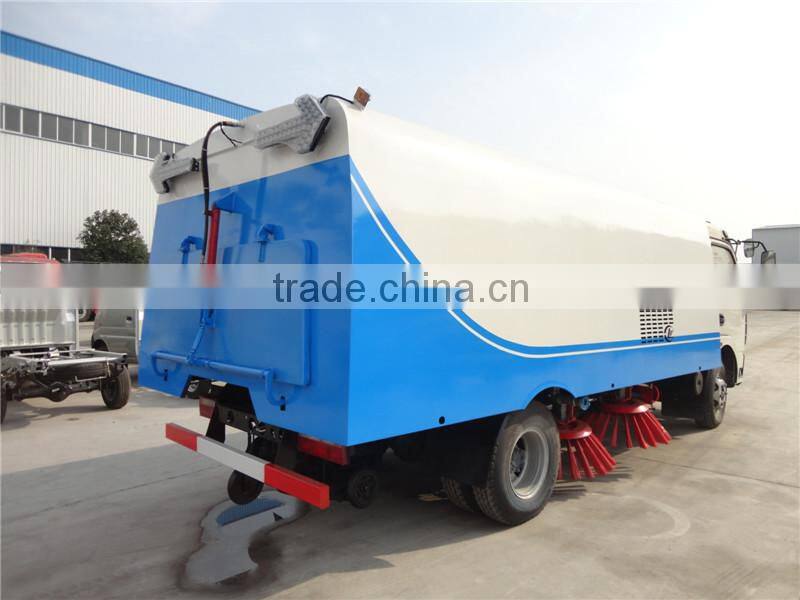

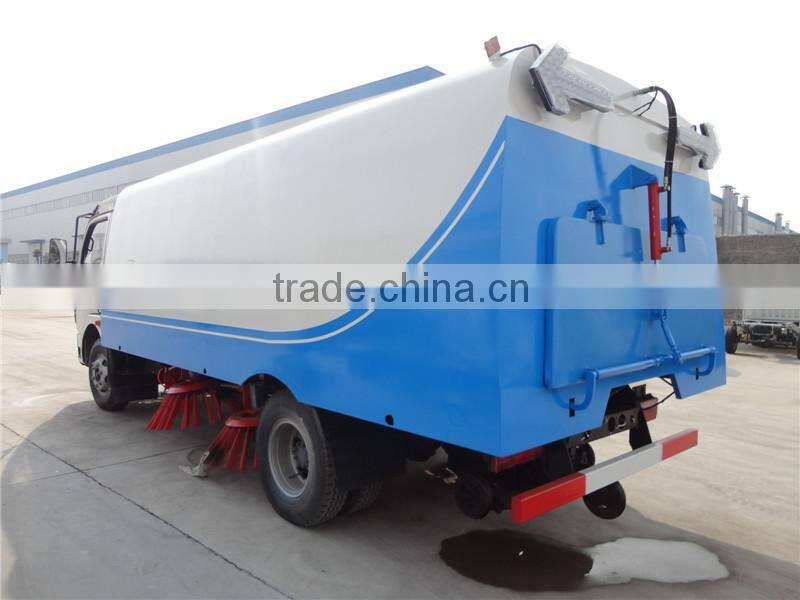

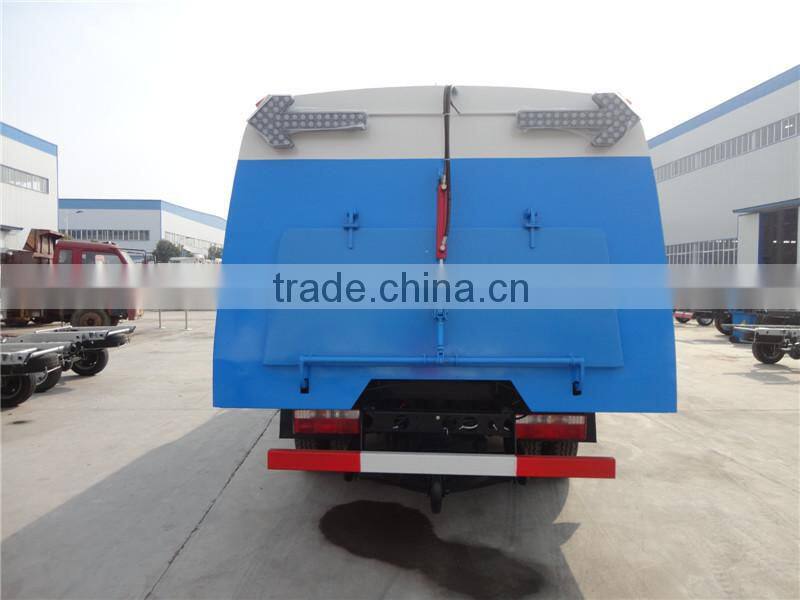

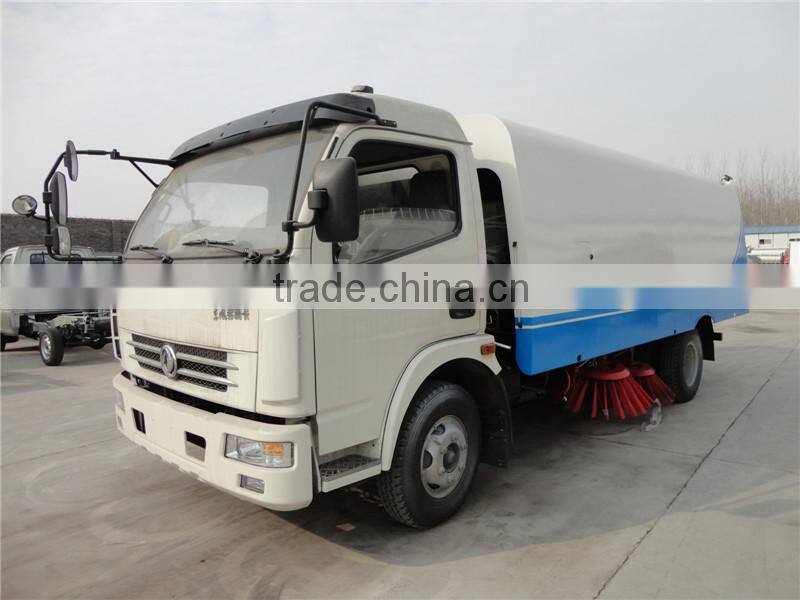

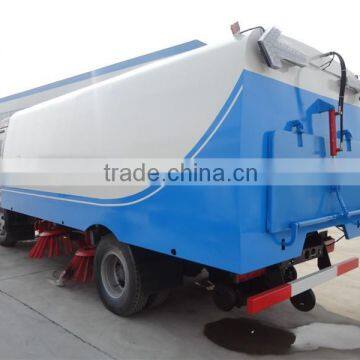

Detailed Images

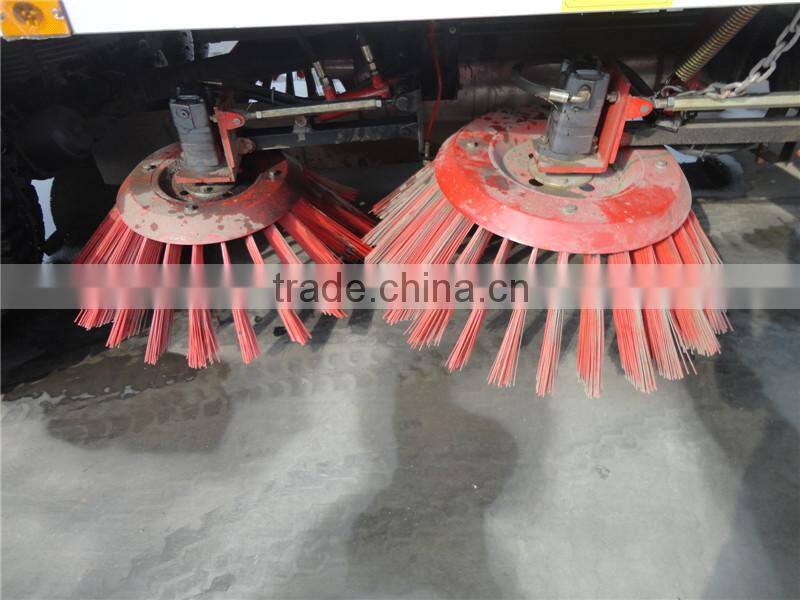

road sweeper truck brooms looking :
