8 channel GSM/CDMA VOIP gateway Ip pbx system goip 8

FOB Price

US$ 825 - 825.1 / Piece

1 Piece(Min. Order)

Port ShenZhen/HK port
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	TYH
Model Number	COIP8		Type	VoIP Gateway

Product Description

Specifications

Ip pbx system goip 8
1.8 GSM/CDMA/WCDMA channel
2.Up to 32 SIM cards
3.Up to 4 SIM Cards per Channel

8 channel GSM/CDMA VOIP gateway sip protocal Ip pbx system goip 8

Our CDMA gateway have following different type

Model NO	SPECIFICATION	FREQUENCY	PRICE(USD)
COIP4	4CDMA,1WAN,1LAN	800MHZ	500
COIP4	4CDMA,1WAN,1LAN	450/1900MHZ	560
COIP8	8CDMA,1WAN,1LAN	800MHZ	825
COIP8	8CDMA,1WAN,1LAN	450/1900MHZ	925
COIP8-32	8CDMA,1WAN,1LAN	800MHZ	985
COIP8-32	8CDMA,1WAN,1LAN	450/1900MHZ	1085
WCOIP4	4WCDMA,1WAN,1LAN	2100MHZ	560
WCOIP8	8WCDMA,1WAN,1LAN	2100MHZ	925
WCOIP8-32	8WCDMA,1WAN,1LAN	2100MHZ	1085

Overview

The TYH ACOM508G/508C/508W is an analog GSM/CDMA/WCDMA Cellular Gateway that helps directly interconnect a SIP-Supporting VoIP network with GSM/CDMA/WCDMA network.

Functions

l Support 8 Channels 850/900/1800/1900MHz Quad-band GSM, 450MHz or 800/1900MHz Dual-band CDMA,850/900/1800/1900/2100MHz WCDMA Cellular Network

l SMS receiving/batch sending, AT command compatible

l Support SIP registration and peer-to-peer

l Support encryption: RC4, VOS etc.

l Support Hotline, Phone book, Speed dial, Dial Plan

l Update firmware by local or internet

l Field proven compatible with Asterisk-based soft switches

Features

l 4 SIM cards per channel (SimSwitch version optional)

l LCR automatically route calls

l Single-channel debug for manual calling, directly AT command

l Support USSD balance enquiry, billing

l Automatically lock/switch SIM card according to its balance, balance alarm

l Centralized network management

l Caller ID detection and generation

l Master and slave SIP server

l SIM card hot plug

l IMEI modified

l Calling Statistics

Applications

Mobility uplink and downlink

Used in conjunction with VOS, VPS, call back or other Asterisk-based soft switches, for accessing VoIP network by SIM cards, LCR select least cost router to reduce the cost of calls.

Mobility extension

Most of mobile carriers offer zero or almost zero tariff for calls within a group of SIM cards. Mobile phones can be considered as" mobile extensions" of the telephone system. Additionally,"Least Cost Router" permits to select the cheapest route for any call.

SMS batch sending

The device support SIP SMS sending and receiving, used with the SIP server as a SMS gateway.

Specifications

Call Control Protocols	SIP
Number of Channels	8 channels
Frequency	GSM: 850/900/1800/1900MHz CDMA: 450 or 800/1900MHz WCDMA: 850/900/1800/1900/2100MHz
Voice CODECs	G.729A, G.723.1, G.711 a/ulaw
Network Protocols	IPv4, TCP, UDP, PPPoE, DHCP, DNS, NAT, Telnet, HTTP, FTP, TFTP
Configuration and Management	- Web-based GUI - Console, telnet command line - Centralized network management
Firmware Update	Local file, FTP, TFTP and HTTP
Message Features	SMS batch receiving/sending, AT command compatible
Telephony Features	- Hot-line call - Dial plan - Speed dial - Phone book - CDR - White list
Telephony Signaling	- DTMF tone detection/generation - DTMF relay: in-band, RFC 2833 and SIP info - Call forward: unconditional, no answer and busy - N-way conferencing - Mobile Number Portability
Voice Quality	- Echo cancellation - Silence suppression (voice activity detection, comfortable noise generation) - Adaptive jitter buffer
Number of Ports	- 1 WAN 10/100Base-T Ethernet (RJ-45 connector) - 1 LAN 10/100Base-T Ethernet (RJ-45 connector) - 1 console (RS-11 connector)
LEDs	1 power and 8 groups of signal strength and running indicator
Power Supply	100-240VAC, 50 - 60 Hz
Dimensions	- Rack mountable 1U chassis (compatible with 19" Rack) - Width: 482mm - Height: 44mm - Depth: 210mm
Weight	2.5kg
Operating Environment	- Operating temperature: 0 - 50ºC - Operating humidity: 10 - 90%
Warranty	12 Months

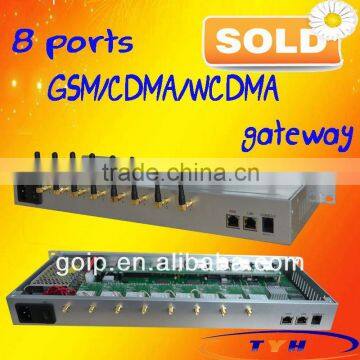

Detailed picture
