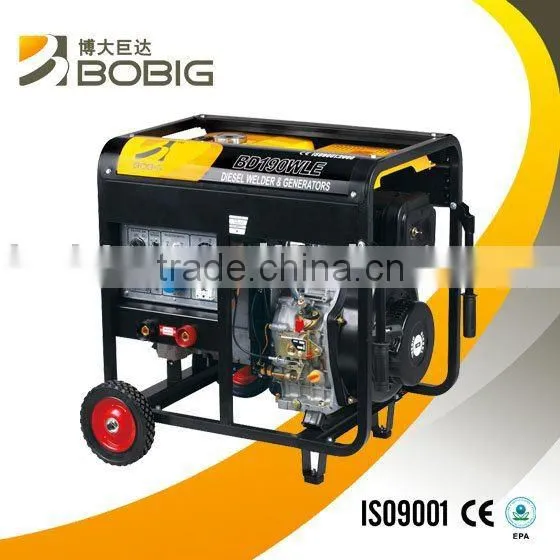

welder generator
Negotiable
/ Piece
50 Pieces(Min.Order)
- 2000 Piece / Pieces per Month
You May Like
- 6.5kw ~ 1000kw Stamford AC 3phase Electric Alternator for Diesel Gensets
- 15kw to 120kw Pto Generator Drived by Tractor
- Condensing steam turbine/Back pressure steam turbine/Extraction Condensing steam turbine/Extractiontraction back pressure steam turbine/Injection condensing steam turbine/Low parameter steam turbine
- St/Stc Series Single/Three Phase Brush Alternator/Generator
- Electric actuator
- Electric actuator
Product Details
Place of Origin: | Fujian, China | Brand Name: | BOBIG | Model Number: | BD190LWE |
Product Description
Specifications
welder generator,Copper winding,New italy technology alternator(copy Italian famous brand SINCRO)welder generator, Copper winding,New italy technology alternator(copy Italian famous brand SINCRO,controlled by reactor,exllcent welding application
Rated frequency (Hz) | 50 60 |
Rated power(kW) | 4.6 5.0 |
Rated voltage (V) | 230 240/120 |
Rated current (A) | 20 21/41.7 |
No.of phase | Single |
Power factor (cosφ) | 1 |
Weldling voltage at zero load (DC)(V) | 60-70 |
Rated weldling current DC(A) | 160 |
weldling voltage(DC)(V) | 25-30 |
Weldling load continous ratio | 60% |
Weldlig current adjustment range(A) | 50-190 |
Electrode φ(mm) | 1.6-4.0 |
Rated speed (r/min) | 3000 3600 |
Excitation mode | Self-excitation and constant voltage (AVR) |
Recifying mode | IGBT+three-phase rectifying bridge (PWM) |
Insulation grade | F |
Pole number | 2 |
Engine model | BD186FA/186FAE |
Engine type | Single-cylinder, four-stroke, air-cooled,direct injection |
Displacement (ml) | 418 |
Bore x stroke (mm) | 86×72 |
Compression ratio | 19 |
Rated power kW/(r/min) | 5.7/3000 6.3/3600 |
Fuel type | 0#(summer),-10#(winter),-35#(chill cold)light diesel |
Lube oil brand | L-CED Grade 15W30 or 15W40 |
fuel consumption (g/kW.h) | ≤340 |
Fuel tank capacity (L) | 16 |
Continous running time (hr) | 10 |
Overall dimension (mm)(L×W×H) | 720×480×645 |
Dry weight (kg) | X:130 E:147 |
Starting system | XW: Recoil starter EW: Electric starter |
Noise level (at rated load) dB(A)/7m | 78 |
Structure type | open-frame |
